SmallHD Cine 7 RED RCP2 Kit (KOMODO, DSMC3)

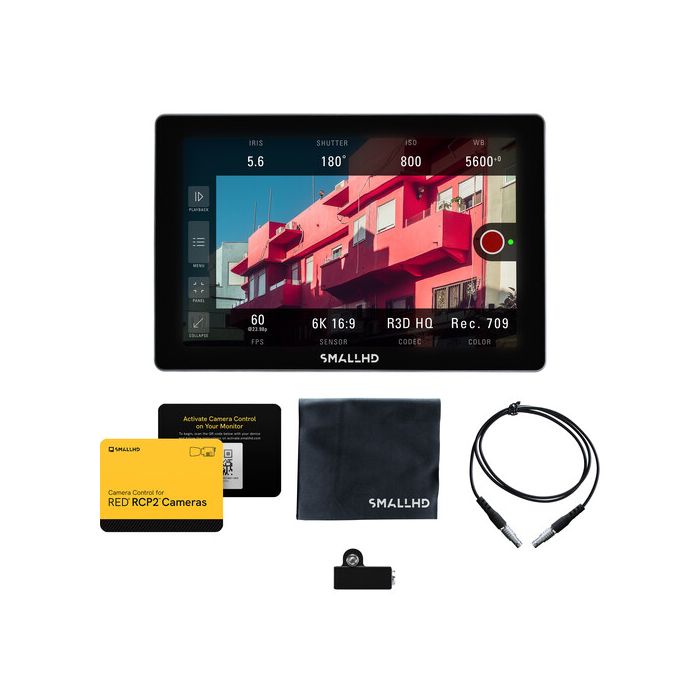

Use the lightweight Cine 7 RED RCP2 Monitor Kit from SmallHD to provide professional monitoring for your KOMODO or RED DSMC3 camera with a sharp 7" display suitable for indoor or outdoor use. The kit includes the Cine 7 monitor, an L-series battery plate, a micro-USB to 5-pin control cable, a cable adapter, a microfiber cleaning cloth, and the RED KOMODO/DSMC3 RCP2 camera control software upgrade.

The Cine 7 monitor supports up to UHD 4K HDMI output as well as various HD and SD formats via one full-size HDMI input, one HDMI output, one 3G-SDI input, and one 3G-SDI selectable input/output. The monitor also supports cross conversion from HDMI to SDI and from SDI to HDMI. The RED control software loads onto the monitor and allows you to control RED camera functions via the RCP2 protocol such as run/stop, color and exposure controls, status, color temperature, video format, playback, shutter, menu control, and more, all via the Cine 7 touchscreen. The control cable and micro-USB-to-LEMO adapter allow the monitor to connect to the camera.

SmallHD Cine 7 Touchscreen On-Camera Monitor (L-Series)

Monitor your camera with the Cine 7 Touchscreen On-Camera Monitor from SmallHD. Featuring a sharp 7" display suitable for indoor or outdoor use, the Cine 7 monitor supports up to UHD 4K HDMI output as well as various HD and SD formats via one full-size HDMI input, one HDMI output, one 3G-SDI input, and one 3G-SDI selectable input/output. The monitor also supports cross conversion from HDMI to SDI and from SDI to HDMI.

The Cine 7 features a bright 1800 cd/m², 322 ppi, 1920 x 1200 IPS LCD touchscreen with 3D LUT compatibility. Using the intuitive PageOS 4, you can turn on and save pages of various monitoring tools and focusing aids with a finger tap. At the rear of the monitor, an L-series mount battery plate accepts two L-series batteries for powering your monitor.

Key Features

Daylight-viewable, 7" touchscreen on-camera monitor with 1800 cd/m² brightness

Slim, lightweight design with 10-bit, touchscreen IPS LCD panel

Supports up to 1080p60 video via full-size HDMI and 3G-SDI inputs

HDMI-to-SDI and SDI-to-HDMI cross conversion is supported

Uses SmallHD PageOS 4 to organize and save customized function and settings pages

The included dual L-series battery plate allows you to hot-swap batteries as necessary, and the plate itself is swappable for other battery plates

Four 1/4"-20 mounting points on top, left, right, and back

RED Control Features

Run/stop

Color controls

Exposure controls

Status

Color temperature

Video format

Playback

Shutter

Menu control

Software Features

Pixel zoom: 1.1 to 2x and 2 to 8x via swipe up/down, with pinch zoom

DSLR scale: Canon 5D Mk II and Canon 7D

Custom scale: Underscan only

Anamorphic de-squeeze: 0.75x, 1.33x, 1.5x, 2.0x, 2.5x

Image flip: Auto and manual

Image rotation: Auto and manual

Color focus assist: Adjustable style and intensity

Peaking: Adjustable intensity

False color: Spectrum, ARRI-style, and customizable

Dual zebra: Customizable

Waveform: Luma and RGB, customizable with region of interest highlighting

Vectorscope: Yes

RGB parade: Customizable

Histogram: Luma and RGB

Image capture: With dedicated button and image gallery

Custom LUTs: Load as looks on pages or as system-wide calibration via the settings menu

LUT import: Via SD card or USB storage device

Image overlay: Opacity slider and blink setting

Audio meters: HDMI and SDI up to 8 channels

SmallHD Microfiber Cleaning Cloth

Made from a non-abrasive material, this Microfiber Cleaning Cloth from SmallHD is a safe option for cleaning glass surfaces and coatings on a monitor or camera. It measures approximately 7 x 7" and is easily stored in a bag or pocket when not in use.

SmallHD Micro-USB to 5-Pin LEMO Adapter

Since SmallHD monitors can now display lens focus information with the latest OS3 upgrade, this Micro-USB to 5-Pin LEMO Adapter helps attach a Teradek RT lens controller to your monitor to map and display that information along with your camera's image.

The adapter features a micro-USB male connector that plugs directly into your monitor, and the female 5-pin LEMO adapter on the other end connects a separately available cable from a Teradek CTRL.1 or CTRL.3 lens controller. The port can also power the controller using 5V pass-through power from the micro-USB port. The adapter mounts directly onto your monitor using a 1/4"-20 thumbscrew, or it can mount onto a monitor cage.

Compatibility

SmallHD monitors running OS3
Teradek RT CTRL.1 and CTRL.3 lens controllers
