SmallHD Indie 7 RED RCP2 Kit (KOMODO, DSMC3)
- 7" 1920 x 1200 Touchscreen Display
- RED RCP2 Camera Control Upgrade
- Micro-USB to 5-Pin Adapter & Cable
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.

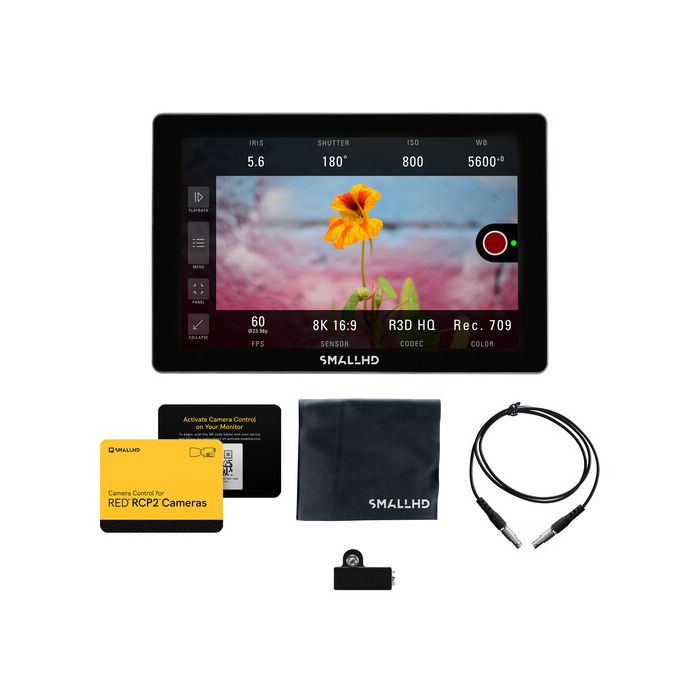

Sadržaj pakiranja
- SmallHD INDIE 7 Touchscreen On-Camera Monitor
- Limited 1-Year Warranty
- SmallHD Microfiber Cleaning Cloth
- SmallHD Micro-USB to 5-Pin LEMO Adapter
- Limited 1-Year Warranty
- RED RCP2 Camera Control Software Upgrade
- 9-Pin EXT to 5-Pin USB Camera Control Cable
Use the lightweight Indie 7 RED RCP2 Monitor Kit from SmallHD to provide professional monitoring for your KOMODO or RED DSMC3 camera with a sharp 7" display suitable for indoor or outdoor use. The kit includes the Indie 7 monitor, an L-series battery plate, a micro-USB to 5-pin control cable, a cable adapter, a microfiber cleaning cloth, and the RED KOMODO/DSMC3 RCP2 camera control software upgrade.
The Cine 7 monitor supports up to UHD 4K30 HDMI input/output as well as up to 1080p60 via the SDI input/output. The RED control software loads onto the monitor and allows you to control RED camera functions via the RCP2 protocol such as run/stop, color and exposure controls, status, color temperature, video format, playback, shutter, menu control, and more, all via the Cine 7 touchscreen. The control cable and micro-USB-to-LEMO adapter allow the monitor to connect to the camera.
SmallHD INDIE 7 Touchscreen On-Camera Monitor
The lightweight INDIE 7 Touchscreen On-Camera Monitor from SmallHD provides professional monitoring in a sharp 7" IPS LCD with 1920 x 1200 resolution, 10-bit color processing, 1000 cd/m² brightness, 1000:1 contrast ratio, touchscreen control, and updated SmallHD PageOS 4 firmware. It features HDMI and 3G-SDI inputs and outputs, and it supports up to UHD 4K video input via HDMI.
The INDIE 7 is powered using the included L-series battery plate or using the 2mm barrel input with a DC adapter. It can also be powered using separately available Gold mount or V-mount battery plates. An SD card slot allows you to import custom 3D LUTs and a micro-USB port to provide upgrades to the display. Four 1/4"-20 threads allow you to mount the monitor in a variety of configurations. The 3.5mm headphone jack allows you to monitor the embedded audio from the HDMI or 3G-SDI inputs.
Using the intuitive SmallHD PageOS 4, you can turn on and save pages of various monitoring tools and focusing aids with a finger tap. It also features a settings dashboard, preconfigured pages and tabs, templates, exposure assist, overlays, function buttons, and numerous improvements, while maintaining all the features of its predecessor, OS3.
Features
Daylight-viewable, 7" touchscreen on-camera monitor with 1000 cd/m² brightness
Slim, lightweight design with 10-bit, touchscreen IPS LCD panel
HDMI and 3G-SDI inputs and outputs; supports video input up to UHD 4K30 via HDMI
Four 1/4"-20 mounting threads on left, right, bottom, and back of the monitor
SmallHD PageOS 4 has all the features of OS3 to organize and save customized function and settings pages as well as a settings dashboard, page tabs, false color overlays, improved function buttons, pixel zoom, focus assist, peaking, and more
Power using a barrel input or with the included L-series battery plate, or use a separately available Gold mount or V-mount plate
Durable aluminum chassis
Display Tools
Pixel zoom: 2x and 4x with pinch-zoom
Aspect ratios: Preset and customizable
DSLR scale: Canon 5D Mk II and Canon 7D
Custom scale: Underscan only
Anamorphic de-squeeze: 1.33x, 1.5x, 1.66x, 2.0x
Image flip: Auto and manual
Image rotation: Auto and manual
Cross conversion: HDMI to SDI, SDI to HDMI
Color focus assist: Adjustable style and intensity
Peaking: Adjustable intensity
False color: Spectrum, ARRI-style, and customizable
Zebra: Dual, customizable
Waveform: Luma and RGB, customizable with region-of-interest highlighting
Vectorscope
RGB parade, customizable
Histogram: Luma and RGB
Image capture, with dedicated button and image gallery
Custom LUTs: Load as looks on pages or as system-wide calibration via the settings menu
LUT import: Via SD card or USB storage device
Image overlay: Opacity slider and blink setting
Image capture
Audio meters: Up to 8 channels
SmallHD Microfiber Cleaning Cloth
Made from a non-abrasive material, this Microfiber Cleaning Cloth from SmallHD is a safe option for cleaning glass surfaces and coatings on a monitor or camera. It measures approximately 7 x 7" and is easily stored in a bag or pocket when not in use.
SmallHD Micro-USB to 5-Pin LEMO Adapter
Since SmallHD monitors can now display lens focus information with the latest OS3 upgrade, this Micro-USB to 5-Pin LEMO Adapter helps attach a Teradek RT lens controller to your monitor to map and display that information along with your camera's image.
The adapter features a micro-USB male connector that plugs directly into your monitor, and the female 5-pin LEMO adapter on the other end connects a separately available cable from a Teradek CTRL.1 or CTRL.3 lens controller. The port can also power the controller using 5V pass-through power from the micro-USB port. The adapter mounts directly onto your monitor using a 1/4"-20 thumbscrew, or it can mount onto a monitor cage.
Compatibility
SmallHD monitors running OS3
Teradek RT CTRL.1 and CTRL.3 lens controllers
SmallHD INDIE 7 Touchscreen On-Camera Monitor Specs
Display
Panel Type |
IPS-Type LCD |
Display Size |
7.02" / 17.8 cm |
Screen Area |
5.95 x 3.72" / 15.11 x 9.45 cm |
Resolution |
1920 x 1200 |
Aspect Ratio |
16:9 |
Viewing Angle |
Horizontal: 160° |
Touchscreen |
Yes |
Maximum Brightness |
1000 cd/m2 |
Contrast Ratio |
1000:1 |
Bit Depth / Color Support |
10-Bit (1.07 Billion Colors) |
HDR Compatibility |
None |
Pixels Per Inch (ppi) |
323 ppi |
Color Gamut |
100% Rec. 709 |
Real-Time LUT Monitoring |
SDR, HDR |
Image Controls |
Anamorphic De-Squeeze, False Color, Focus Assist, Focus Peaking, Histogram, Image Flip, Image Rotate, Pixel Zoom, Pixel-to-Pixel Zoom, RGB Parade, Scaling, Vectorscope, Waveform, Zebra |
I/O
Video |
1 x HDMI Type A Input |
Embedded Audio |
HDMI |
Audio |
1 x 1/8" / 3.5 mm Headphone Output |
Built-In Speaker |
None |
Power I/O |
1 x Barrel (10 VDC) Input |
Other I/O |
1 x USB 2.0 (Micro-USB) Input |
Wi-Fi |
None |
Format Support
Video Format |
HDMI (10-Bit 4:4:4 RGB, YCC) |
Video Signal Conversion |
HDMI to SDI |
Power
DC Input Power |
10 to 34 VDC |
Battery Type |
1 x L-Series (Interchangeable Mount) |
Power Consumption |
17.3 W |
Mounting
Mounting |
4 x 1/4"-20 Female |
Environmental
Certifications |
CE, FCC, IC, RoHS |
Operating Temperature |
30 to 100°F / -1 to 37°C |
Storage Temperature |
0 to 120°F / -17 to 48°C |
General
Material of Construction |
Aluminum |
Dimensions |
7.09 x 4.67 x 1.32" / 18.01 x 11.86 x 3.35 cm |
Weight |
26 oz / 737 g |
Packaging Info
Package Weight |
1.955 lb |
Box Dimensions (LxWxH) |
9.4 x 7 x 2.1" |
SmallHD Microfiber Cleaning Cloth Specs
Packaging Info
Package Weight |
0.025 lb |
Box Dimensions (LxWxH) |
4.1 x 4 x 0.2" |
SmallHD Micro-USB To 5-Pin LEMO Adapter Specs
Connector 1 |
Micro-USB, Male |
Connector 2 |
5-Pin LEMO, Female |
Power |
5 VDC |
Mounting |
1 x 1/4"-20 Thumbscrew |
Packaging Info
Package Weight |
0.07 lb |
Box Dimensions (LxWxH) |
6.95 x 3.85 x 0.85" |
