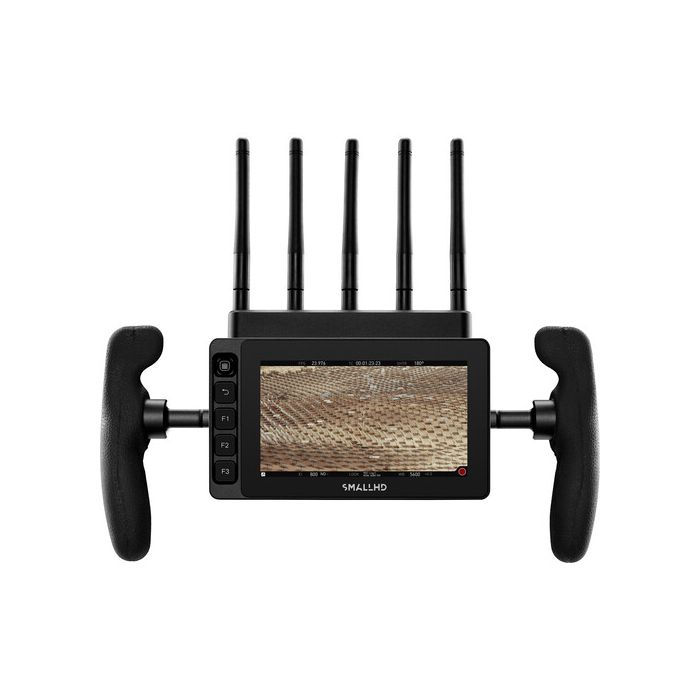

SmallHD Ultra 5 Bolt 6 RX 750 V-Mount Kit

by SmallHD
Dostupnost: Isporuka 7-10 dana
SKU
16-0528-VM

5" 1920 x 1080 Touchscreen Display
V-Mount Bolt 6 Receiver Module
3G-SDI & HDMI Inputs & Outputs
6 GHz Wireless Video Transmission
Bright 3000 cd/m² LCD Panel
10-Bit 4:2:2 DCI-P3 Color Gamut
Power via 2-Pin LEMO Input

4.225,25 € 3.380,20 €

Sadržaj pakiranja

  • SmallHD ULTRA 5 Bright Touchscreen Monitor
  • Teradek Bolt 6 RX 750 (V-Mount)
  • V-Mount Battery Plate
  • 5 x Antenna
  • HDMI to HDMI Block Adapter
  • 1/4"-20 Light Stand Adapter
  • Hex Wrench Set
  • Screw Socket Head Set

Add an ultra-bright monitor with wireless control to your production rig with the V-mount SmallHD ULTRA 5 Bolt 6 RX 750 Monitor Kit. The unit includes an ULTRA 5 bright 5" on-camera monitor and a Bolt 6 TX monitor module from Teradek. The monitor features a 3000 bright cd/m² display, a 1920 x 1080 touchscreen LCD, HDMI and 3G-SDI inputs/outputs, camera control options, and 10-bit 4:2:2 Rec. 709 color processing.

The monitor module installs onto the back of the monitor and provides power to the monitor via a V-mount battery, and it receives wireless video transmissions from up to 750'. The RX module can receive via the 6 GHz band from Teradek Bolt 6 series transmitter, as well as from 5 GHz transmitters such as the Teradek Bolt 4K series.

SmallHD ULTRA 5 Bright Touchscreen Monitor

Add an ultra-bright monitor to your production rig with the SmallHD ULTRA 5 Bright Touchscreen Monitor, which features a 3000 bright cd/m² display for viewing in just about any indoor or outdoor environment. The 5" 1920 x 1080 touchscreen LCD provides a sharp image and 10-bit 4:2:2 Rec. 709 color processing, ideal for focus pulling and image analysis on set and in the field.

The ULTRA 5 features HDMI and 3G-SDI inputs and outputs, and it also features physical buttons for use in conditions that might require gloves. It can also be used to control your camera, and it features a 5-pin USB port for optional RED camera control, and it also has an Ethernet port for optional ARRI and Sony VENICE camera control. All the functionality of the monitor is available via PageOS 5, which provides advanced functionality with a simple and efficient graphical user interface.

Features

Daylight-viewable, 5" touchscreen on-camera monitor with 3000 cd/m² brightness
Slim, lightweight design with 10-bit 4:2:2 DCI-P3 color, touchscreen LCD panel
HDMI and 3G-SDI inputs and outputs
Buttons around the monitor allow you to use the monitor in any conditions
The PageOS 5 toolset with EL Zone Exposure Assist, best-in-class waveform, false color, Look-Around Camera Control (sold separately), advanced Teradek RT overlays, and more
Four 1/4"-20 mounting threads on the left, right, bottom, and back of the monitor
Power using a 2-pin power input
Optional RED camera control via the micro-USB port
Optional ARRI/Sony VENICE camera control via the Ethernet port
Durable aluminum chassis

Display Tools

Pixel zoom: 2x and 4x with pinch-zoom
Aspect ratios: Preset and customizable
DSLR scale: Canon 5D Mk II and Canon 7D
Custom scale: Underscan only
Anamorphic de-squeeze: 1.33x, 1.5x, 1.66x, 2.0x
Image flip: Auto and manual
Image rotation: Auto and manual
Cross conversion: HDMI to SDI, SDI to HDMI
Color focus assist: Adjustable style and intensity
Peaking: Adjustable intensity
False color: Spectrum, ARRI-style, and customizable
Zebra: Dual, customizable
Waveform: Luma and RGB, customizable with region-of-interest highlighting
Vectorscope
RGB parade, customizable
Histogram: Luma and RGB
Image capture, with dedicated button and image gallery
Custom LUTs: Load as looks on pages or as system-wide calibration via the settings menu
LUT import: Via SD card or USB storage device
Image overlay: Opacity slider and blink setting
Image capture
Audio meters: Up to eight channels

Teradek Bolt 6 RX 750 Monitor (V-Mount)

Receive lossless HD video from up to 750' line-of-sight with the Bolt 6 RX 750 Monitor Module from Teradek. The module mounts onto the back of a SmallHD Cine 7, Indie 7, or 702 Touch monitor and can wirelessly receive up to 4K30 video with 10-bit 4:2:2 HDR support and outputs video via one HDMI port. A V-mount battery plate is included to power the receiver using a professional V-mount battery. Though it can transmit visually lossless video to any Bolt 4K series receiver with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band.

The module can also simultaneously transmit to up to six receivers. It features improved metadata, range, and compatibility over its predecessors. The built-in AES-256 encryption with RSA 1024 key pairing protects your video from prying eyes, while noise rejection keeps your video clean no matter how many devices are using the wireless spectrum. The Bolt 6 system also supports the transmission of timecode and start/stop triggers from the camera.

The receiver module also supports a desktop Bolt Manager software application or the Bolt app for iOS or Android that easily connects via Bluetooth, which both provide a spectrum analyzer, channel selection tools, and remote configuration.

Key Features

Supports the new freely available 6 GHz wireless frequency band
Cross-compatible with all Bolt 4K and 4K LT series 5 GHz transmitters
Mounts on the back of a SmallHD Cine 7, Indie 7, or 702 Touch monitor
Wirelessly receive up to 4K30 video and output up to 4K30 via HDMI 2.0 port
V-mount battery plate included
Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut
Smaller and lighter chassis design than other Bolt receivers
The receiver features five antennas
AES-256 encryption and RSA 1024 key pairing support
Wireless Android/iOS app via Bluetooth features a spectrum analyzer and remote configuration

SmallHD Ultra 5
Panel Type LCD
Display Size 5.0" / 12.7 cm
Resolution 1920 x 1080
Aspect Ratio 16:09
Touchscreen Yes
Maximum Brightness 3000 cd/m2
Bit Depth / Color Support 10-Bit (1.07 Billion Colors)
Pixels Per Inch (ppi) 443 ppi
Color Gamut 100% DCI-P3
Image Controls Blue Only, False Color, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Waveform
Video I/O 1 x BNC (3G-SDI) Output
  1 x HDMI Output
  1 x BNC (3G-SDI) Input
  1 x HDMI Input
Embedded Audio HDMI
  SDI
Audio I/O 1 x 1/8" / 3.5 mm Headphone Output
Built-In Speaker None
Other I/O 1 x LEMO 5-Pin Output
  1 x RJ45 Output
Media/Memory Card Slot None
Wi-Fi None
Video Format SDI (10-Bit 4:2:2)
  1080p: 60/59.94/50/30/29.97/25/24/23.98
  1080PsF: 30/29.97/25/24/23.98
  1080i: 60/59.94/50
  720p: 60/59.94/50/30/29.97/25/24/23.98
  480i
  576i
  HDMI (8/10/12-Bit)
  UHD 4K: 30
  1080p: 60/59.94/50/30/25/24/23.98
  1080PsF: 30/25/24/23.98
  1080i: 60/59.94/50
  720p: 120/119.88/100/60/59.94/50/30/25/24/23.98
  576p: 100/50
  480p: 120/119.88/60/59.94
  480i: 240/239.76/120/119.88/60/59.94
  576i: 200/100/50
Battery Type None
Mounting 3 x 1/4"-20 Female
Certifications CE, FCC, IC, RoHS
Material of Construction Aluminum
Teradek Bolt 6 RX 750 Monitor (V-Mount) Specs
Wireless Range 750' / 228.6 m (Line-of-Sight)
Channel Bandwidth 40 MHz
Frequency Range Non-DFS Frequencies
  US: 5.94 to 6.42 GHz
  US: 5.19 to 5.23 GHz
  US: 5.75 to 5.79 GHz
  DFS Frequencies
  US: 5.27 to 5.67 GHz
Latency < 0.01 ms
RF Power 21 dBm
Wi-Fi None
Bluetooth Yes
Video Format HDMI/Wireless
  UHD 4K: 30/29.97/25/24/23.98
  1080p: 60/59.94/50/30/29.97/25/24/23.98
  1080i: 60/59.94/50
  720p: 60/59.94/50
  576p: 50
  576i: 50
  480p: 60/59.94
  480i: 59.94
Audio Format 2-Channel 24-Bit 48 kHz LPCM Audio
Timecode Support Yes
DC Input Power 6 to 18 VDC
Battery Type 1 x V-Mount
Power Consumption 6 W
IP Rating None
Operating Temperature 32 to 72°F / 0 to 40°C
Antenna Ports 5 x RP-SMA Female
Video I/O 1 x HDMI 1.4b Output
Embedded Audio HDMI: 2-Channel
Audio I/O None
Power I/O 1 x LEMO 2-Pin (18 VDC) Input
Other I/O 2 x LEMO 5-Pin 2.0 Output
Encryption 256-Bit AES
Material of Construction Aluminum, Plastic
Dimensions 4.8 x 3.7 x 1.1" / 122 x 94 x 27 mm
Weight 10.3 oz / 292 g
