SmallRig x Brandon Li All-in-One Mobile Video Kit Full Quick Release Co-design
by SmallRigSmallRig x Brandon Li All-in-One Mobile Video Kit Full Quick Release Co-design Edition 4596 is the perfect one-stop solution for professional smartphone video shooting.
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
- Universal Phone Cage x 1
- 67mm Magnetic Filter Adapter x 1
- 67mm VND 2-32 (1-5 Stop) x 1
- Rotatable Bilateral Side Handle with M.2 SSD Enclosure and Wireless Control x 1
- Rotatable Bilateral Side Handle x 1
- 4-in-1 Dock Station (USB-C PD / USB-C 3.1 / USB-C 2.0) x 1
- Arca-Swiss Quick Release Adapter x 1
- Power Bank Holder x 1
- Multifunctional Data Cable x 1
- Velcro Ties x 1
- User Manual x 4
- Photography Bag x 1

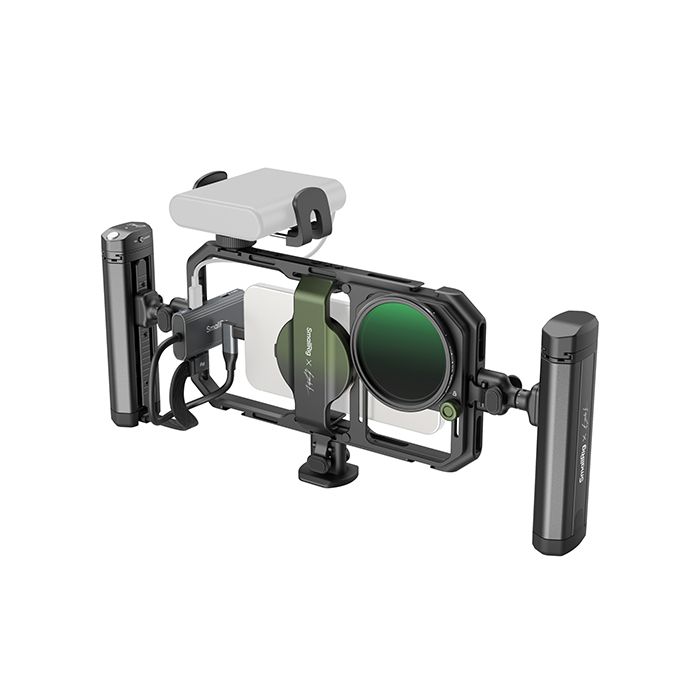

SmallRig x Brandon Li All-in-One Mobile Video Kit Full Quick Release Co-design Edition 4596 is the perfect one-stop solution for professional smartphone video shooting. The kit includes a universal mobile phone cage, a rotatable side handle with M.2 SSD enclosure and wireless remote controller, a 67mm universal filter adapter, a magnetic 67mm VND 2-32 (1-5 Stop), a 4-In-1 USB-C docking station, an Arca-Swiss quick release adapter, a power bank holder, and other accessories. The universal cage supports 67mm magnetic filters, providing anti-glare solutions for most mobile phones and reducing filter light leakage. The rotatable side handle with wireless control integrates multiple functions and features an enclosure for M.2 SSD to support direct external recording. The detachable wireless control enables remote shooting, focusing, and zooming in/out. Stepless rotation of the handle adapter allows instant switching between the side and top handle modes, while the quick release mechanism on both sides enables swift, tool-free assembly and adjustment. Also, the kit comes with an Arca-Swiss quick-release adapter, supporting quick attachment to the cage and professional tripods. The cage kit provides multiple standard 1/4"-20 threaded holes and cold shoe mounts, supporting the free combination of accessories, and providing more possibilities for shooting. The 4-in-1 USB-C docking station offers a high-power PD 100W charging port, a USB-C 3.1 port, and two USB-C 2.0 ports. When used for mobile videography, it enables simultaneous charging, ProRes video storing, and utilization of a USB-C microphone.
- Professional solution for mobile phone video shooting, featuring universal quick-release interfaces for efficient stability.
- Utilizes a universal mobile video cage that supports 67mm magnetic filter attachments, offering customized anti-glare solutions for various phone models.
- The side handle is equipped with a wireless remote control module for shutter release and recording, half-press the shutter for focus and zoom control.
- The side handle can accommodate an M.2 SSD for mobile 4K ProRes video recording.
- The side handle features infinite rotation with locking at any angle and seamless switching between the side handle and top handle modes in a second.
- Quick release mechanism on both sides of the side handle adapter enables swift, tool-free assembly and disassembly.
Work With
- The cage is compatible with mobile phones ranging from 57mm (2.2in) to 85mm (3.3in) in width, allowing for use with phone cases.
- When magnetically connecting a mobile phone, it is recommended to use it with a mobile phone case featuring MagSafe to enhance the magnetic attraction.
- It is not recommended to use magnetic attraction in intense sports scenarios.
- The power bank holder is compatible with power banks ranging from 53mm (2.1in) to 81mm (3.2in) in width.
Product Dimensions | 236 x 122 x 31mm / 9.3 x 4.8 x 1.2 inch (Cage); 148 x 81 x 42mm / 5.8 x 3.2 x 1.7inch (Handle) |
Package Dimensions | 295 x 130 x 225mm / 11.6 x 5.1 x 8.9 inch |
Product Weight | 1156 ± 50g / 40.8 ± 1.8oz |
Package Weight | 1571 ± 50g / 55.4 ± 1.8oz |
Material(s) | Aluminum Alloy, Plastic, Silicone, Magnet, Copper |
Specifications of M.2 SSD Enclosure: | |
Operating Protocol | NVMe V1.3 |
Built-in Interface | M.2 M-Key |
USB Protocol | USB 3.1-C |
Standby Power Consumption | 0.38W |
Compatible M.2 SSD | 2230, 2242, 2260, 2280 |
Transfer Rates | SuperSpeed (10Gbps) / Hi-Speed (5Gbps) / Full-Speed (480Mbps) / Low-Speed (12Mbps) |
Indicator Light Status | Blue LED Light: Always on (power on / sleep / safe ejection); flashes (read/write data) |
Specifications of Wireless Remote Controller: | |
Operating Power Consumption | ≤3mW |
Standby Power Consumption | ≤0.04mW |
Battery | 145mAh |
Voltage | 3.7V |
Current | 2mA |
Operating Temperature | -30℃ to 60℃ / -22°F to 140°F |
Wireless Control Distance | 10.0m / 32.8ft |
Wireless Frequency | 2.4G Hz |
Specifications of 4-in-1 Dock Station: | |
Standby Power Consumption | ≤0.2W |
USB-C Ports | PD Charging / USB-C 3.1 / USB-C 2.0 x 2, Mobile Input |
PD Charging | 20V, 5A |
USB-C 3.1 | 5V,3A;USB-C 3.1 10Gbps, ≥750MB/s;USB-C 3.0 5Gbps, ≥350MB/s |
USB-C 2.0 | 5V, 2A;480Mbps, ≥35MB/s |
Operating Temperature | -20℃ to 50℃ / -4°F to 122°F |
