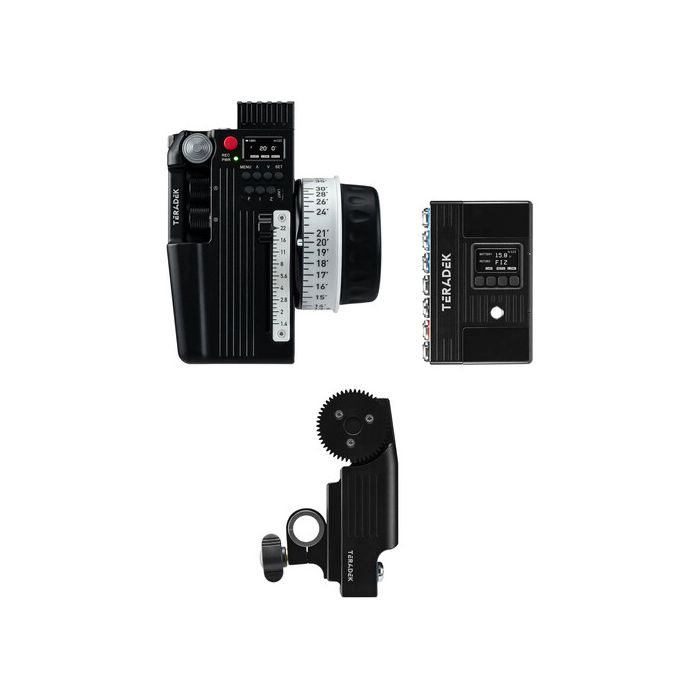

Teradek RT FIZ Kit (1x MK3.1, MDR.X, CTRL.3)

Wirelessly control your lens focus, iris, or zoom with this RT FIZ Wireless Lens Control Kit with CTRL.3, MDR.X & MK3.1 from Teradek. The kit includes a CTRL.3 wireless lens controller, an MDR-X wireless receiver, an RT MK3.1 brushless lens motor, LP-E6 batteries with a charger, a 19/15mm rod clamp, one iris overlay mapping disk, five focus overlay mapping disks calibrated in feet, five focus overlay mapping disks calibrated in meters, five extra white marking disks for the controller.

Also included is a controller neck strap, as well as motor, controller, USB, and power cables. A vinyl zipper bag is included for your accessories, and a hard-shell case with custom foam for carrying the entire kit.

Read more below about the items included in this kit.

Teradek RT MOTR.X Brushless Lens Motor

Use the Teradek RT MOTR.X Brushless Lens Motor with Teradek RT series receivers and controllers to control your focus, iris, or zoom with its super-speed, high-torque design. The motor comes with a standard 0.8 MOD cine gear which can be swapped out for different-size, separately available gears. Its durable aluminum design helps it prevent damage in the field.

The MOTR.X features one input and one output motor control port, and it can be daisy-chained with other MOTR.X motors to limit the need for additional cabling. The ultra-quiet motor's 3Nm torque allows you to control your lens with ease and speed at up to 6.2 revolutions per second. The built-in rod clamp supports mounting on 15 or 19mm rods.

Super-speed focus, iris, or zoom lens motor
Features 3Nm torque and a maximum speed of 6.2 revolutions per second
One input and one output motor control port allows for daisy-chaining with other MOTR.X motors
Built-in rod clamp allows mounting onto 15 or 19mm rods
Constructed with aluminum for durability

Teradek MDR.X 3-Channel Lens Control Receiver with Bluetooth

Connect this to your camera's lens support motors and drive your focus, iris, and zoom wirelessly with the MDR.X 3-Channel Lens Control Receiver with Bluetooth from Teradek. The unit is compatible with all RT motors and controllers, allowing run/stop control with a variety of cameras and camera control with RED DSMC2 cameras. The unit features two auxiliary control ports, letting you use available hardwired controllers.

An integrated OLED display allows you to easily set your device and see the settings, and you can also use the available Teradek RT app to manage, update, and configure the device. This ultracompact, lightweight unit weighs 4.8 oz and is powered via a 2-pin LEMO connector requiring 7 to 17 VDC.

Multiple Inputs/Outputs

Three motor ports for focus, iris, and zoom
Two auxiliary inputs for wired control (via Teradek RT thumbwheel/zoom rocker)
One cam output for RED DSMC2 camera control

Camera Control

Run/Stop control, including but not limited to:
ARRI ALEXA, ALEXA Mini, AMIRA, etc.
Blackmagic
Canon C100, C300 (MkII+), C500
Panasonic VariCam
Phantom
RED DSMC2, DSMC, ONE
Sony F5, F55, FS7 (MkII+)
RED DSMC/DSMC2 camera control:

EF/AF focus/iris
Shutter
ISO
Button features 2x magnification, edge, and focus assist

Compact and Lightweight

The unit's small form factor makes it perfect for all camera setups, especially those on gimbals, handheld rigs, cranes, drones, and other movement rigs.

OLED Display

Each receiver includes an on-unit OLED display with push buttons for configuring motor axes, as well as displaying status readouts including wireless channels, battery voltage, and more.

Wireless Range

RT FHSS
Line-of-sight: Up to 5000' (in USA/FCC mode)
Indoors: Up to 492'

Bluetooth 5
Theoretical maximum range of 800' (actual range will vary)

Teradek RT App

Manage, update, and configure every piece of your Teradek RT system via Bluetooth 5 with the Teradek RT app for iOS. Create lens maps, configure FIZ settings, perform basic camera controls, update firmware, and much more from the convenience of your smartphone or tablet.

Teradek RT MK3.1 4-Axis Wireless Lens Controller

Teradek's RT MK3.1 4-Axis Wireless Controller enables you to regulate up to four lens motors, or other controls such as 3D functions (receiver and motors available separately). This controller offers a large focus knob, one slider control, and two side knobs (A and B). Each input on the versatile MK3.1 Controller can be mapped to any lens axis (focus, iris, zoom, or 3D function) as you prefer. In addition to F/I/Z control, the MK3.1 system enables you to remotely start/stop select HD cameras such as ARRI, Blackmagic, Phantom Flex, RED, Sony, and LANC-compatible models.

Navigate the MK3.1 Controller's menu using its push buttons, and view your settings on the OLED screen display. Automatic and manual calibration options combine with a large, adjustable fluid-feel knob to provide lens-friendly adjustments. The lightweight MK3.1 system features 42 selectable channels, 16-bit transmission up to 0.9 miles, and minimal latency of 2 ms. Wired operation is supported for locations like medical facilities where RF transmission is not allowed.

Constructed from aerospace-grade aluminum, the MK3.1 Controller is designed with internal antennas to lessen the possibility of damage. A lanyard-mounting point, and three 1/4"-20 mounts provide options for safely securing the controller when you need to free your hands for other tasks. The MK3.1 Controller is powered using widely available Canon LP-E6 batteries, providing a runtime of up to 36 hours. The MK3.1 can also be powered via USB, after removing the spent LP-E6 battery.

Features

Versatile 4-axis control for one to four motors, including 3D functions
Push-button menu control and OLED screen display
16-bit transmission with up to 0.9-mile range, and 2ms of latency
4-axis control with large knob, slider, and two side knobs
Internal antennas lessen possibility of damage
Robust aluminum construction
Auto or manual (soft-stop) calibration
Calibration algorithm and torque control protects lenses
Updatable firmware via Mac OS X or PC
FCC/IC/CE–certified
Uses the widely available Canon LP-E6 battery
Run/Stop Support
Including but not limited to:
ARRI ALEXA, Blackmagic, LANC-compatible cameras, RED EPIC, RED ONE, Phantom Flex, Sony F55

Teradek ARRI Run/Stop Cable for MDR.X Receiver (24")

The 24" Run/Stop Cable from Teradek is designed to connect an MDR.X receiver to an ARRI ALEXA or AMIRA camera.

Teradek RED Run/Stop Cable for MDR.X Receiver (16")

The 16" Run/Stop Cable from Teradek is designed to connect an MDR.X receiver to a RED camera equipped with a CTRL socket. It enables run/stop control of EF lenses.

Teradek Sony F5/F55 Run/Stop Cable for MDR.X Receiver (16")

The 16" Run/Stop Cable from Teradek is designed to connect an MDR.X receiver to a Sony F5 or F55 camera.

Teradek 4-Pin Straight-Angle Motor Cable for RT MOTR.X Brushless Lens Motor (8")

This 8" Motor Cable from Teradek has a 4-pin straight-angle connector on each end. The flexible cable exits downward from the MOTR.X brushless lens motor for easy routing back to the receiver or daisy-chaining to another motor.

Teradek 4-Pin Straight-Angle Motor Cable for RT MOTR.X Brushless Lens Motor (16")

This 16" Motor Cable from Teradek has a 4-pin straight-angle connector on each end. The flexible cable exits downward from the MOTR.X brushless lens motor for easy routing back to the receiver or daisy-chaining to another motor.

Teradek 4-Pin Straight-Angle Motor Cable for RT MOTR.X Brushless Lens Motor (24")

This 24" Motor Cable from Teradek has a 4-pin straight-angle connector on each end. The flexible cable exits downward from the MOTR.X brushless lens motor for easy routing back to the receiver or daisy-chaining to another motor.

Teradek Bit 718 2-Pin LEMO to LEMO Alexa Cable (18")

The 18" Teradek Bit 718 2-Pin LEMO to LEMO Cable enables you to power LEMO-compatible Teradek products such as the Teradek Bond, Cube, or Bolt via an ARRI Alexa accessory power output.

For powering your Teradek Bond cellular solution via a LEMO power source (ARRI Alexa)
The Bond can be placed up to 18" away from the power source

Teradek Monitor Bracket for CTRL.1/CTRL.3 Hand Controllers

This Monitor Bracket from Teradek is designed to mount the SmallHD FOCUS, CINE 7, or 703 Bolt monitor directly on the CTRL.1 or CTRL.3 hand controller.

Teradek RT SmallHD Monitor Interface Cable (24")

Use the 24" long Teradek RT SmallHD Monitor Interface Cable to connect your Teradek RT to your SmallHD 703 monitor. The cable features a 5-pin right-angle connector that attaches to your Teradek RT unit and a straight 5-pin connector that attaches to your SmallHD 703 monitor.

Teradek RT 5-Pin to 5-Pin Monitor Cable for SmallHD Overlays

Use the Teradek RT 5-Pin to 5-Pin Monitor Cable to add lens data overlays to your monitor for easier focus pulling. This cable connects a CTRL.1 or CTRL.3 hand unit FIZ control to a SmallHD 703 Bolt monitor running PageBuilder OS3.

Compatibility
Teradek CTRL.1/CTRL.3 FIZ hand unit
SmallHD 703 Bolt monitor

Teradek RT Controller Neck Strap

This RT Controller Neck Strap from Teradek is designed to carry the MK3.1 controller hand unit. Use this strap to position the control unit around your neck or across your body, or to drape the controller from a stand when not in use.

Teradek RT Receiver 19/15mm Rod Clamp with 1/4"-20 Mount

The RT Receiver Rod Clamp from Teradek is used to securely mount an RT receiver to a single 19mm or 15mm rod. Mount the Receiver Rod Clamp directly to the 1/4"-20 thread on an MDR-M or MK3.1 Receiver, or to the 1/4"-20 thread on the mounting bracket for the MDR-MB unit. This compact, double bracket's 1/4"-20 thumbscrew fastens to a 19mm rod on one flank, or to a 15mm rod on the other.
