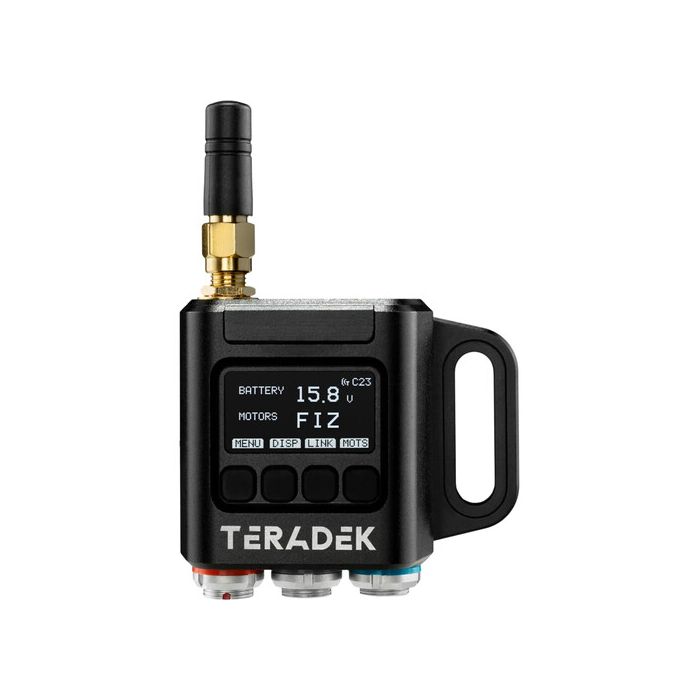

Teradek RT MDR.S Receiver
by Teradek- 3-Channel Lens Control
- Camera Run/Stop Support
- 5000' Line-of-Sight Wireless Range
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
- Teradek MDR.S Compact 3-Channel Lens Control Receiver with Bluetooth
- USB 2.0 Type-A to Type-C Male Cable (3.3')
- Teradek RT Power 3-Pin D-Tap Cable
- Straight 2.4 GHz Wi-Fi Antenna
- S Bracket
- Black Screw Socket Head (M2 x 6mm)
- Screw Socket Cap (1/4"-20 x 3/8"-16)
With 3-channel lens control in an ultracompact form factor, the MDR.S Compact 3-Channel Lens Control Receiver with Bluetooth from Teradek allows you to control compatible RT motors for wireless focus, iris, and zoom functionality. The MDR.S has FHSS wireless technology that prevents interference and a 5000' line of sight range. A 6-pin port on the receiver allows you to trigger run/stop on the camera from your connected hand unit.
The MDR.S features a built-in OLED display with four buttons for control over various functions. Further parameters can be controlled via the device's integrated Bluetooth and the Teradek RT smartphone app. A 28V input range allows you flexibility in powering the receiver.
Features at a Glance
- Daisy-chain up to three motors
- 28V input range increases power compatibility
- Remotely configure lens maps and more settings via the Teradek RT app
- Replace and customize the external antenna
- Integrated overlays for SmallHD monitors to display lens information like focus distance, focal length, iris, zoom, etc.
- Onboard buttons toggle menu, display, link, and motors
- OLED displays battery and motor information
Teradek MDR.S Specs
General
|
Compatibility |
Teradek RT |
|
Bluetooth Range |
5000' / 1524m |
Display
|
Panel Type |
OLED |
|
Size |
Not Specified by Manufacturer |
|
Touchscreen |
No |
Inputs / Outputs
|
USB I/O |
1 x USB-C Female Input |
|
Video I/O |
1 x Mini Hirose 6-Pin Input |
Power
|
Power Source |
Proprietary Interface |
|
DC Input Power |
5 to 28 VDC |
|
Power Connector |
1 x LEMO 3-Pin |
Physical
|
Mounting |
1 x Rail |
|
Color |
Black |
|
Dimensions |
2.3 x 1.7 x 0.9" / 58 x 42 x 24 mm |
|
Weight |
2.4 oz / 68 g |
Packaging Info
|
Package Weight |
0.545 lb |
|
Box Dimensions (LxWxH) |
5.9 x 4.25 x 2.3" |
