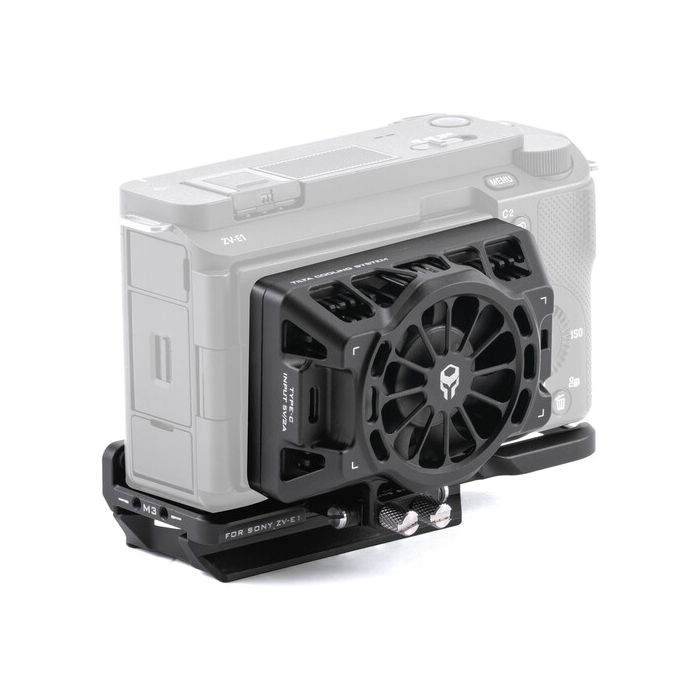

Tilta Cooling System Baseplate Kit for Sony ZV-E1 - Black

Quickly mount your Sony ZV-E1 camera on an Arca-type tripod head or rig while cooling down your camera on a hot day with this Cooling System Baseplate Kit from Tilta. This kit includes the Cooling System for the Sony ZV-E1 and the Arca-type baseplate.

The aluminum baseplate mounts onto the bottom of the camera using a captive 1/4"-20 screw with soft padding, and it features an integrated Arca-type base. It also features 1/4"-20 and 3/8"-16 threads on the bottom for mounting on other rigs, and there are M3 and M4 threads around the sides for mounting other accessories, such as a lens support. The Cooling System mounts onto the back of the baseplate using included screws, providing multiple fan levels to cool your camera and lengthen recording times.

Tilta Baseplate for Sony ZV-E1

Custom-Fit Arca-Type Baseplate for Sony ZV-E1 Mirrorless Camera

The TA-T35-BP-B Baseplate from Tilta is an elevated baseplate that provides advanced ergonomic capability and Arca-type compatibility to the Sony ZV-E1 camera body. This lightweight aluminum plate features an anti-rotation design for camera stability and provides full battery door access.
Compatible with Both the Camera Body and Cooling Module

• Compatible with the Sony ZV-E1 cooling system, available separately
• Features a dampened and adjustable swivel mount

Quick Installation on Arca-Type Tripods and Gimbals

• Compatible with Arca-type standard for DJI and other brand gimbals
• Quick one-step assembly with dual-directional mounting

Tilta Cooling System for Sony ZV-E1 (Black)

Keep your Sony ZV-E1 cool while doubling and even tripling recording times with this Cooling System from Tilta. The cooling system quickly mounts onto the back of the ZV-E1 using captive thumbscrews and provides a 7-blade turbo fan to efficiently dissipate the heat from the camera. In a 95°F environment, it can keep the camera cool enough to record 100 fps 4K footage for up to 38 minutes, double the standard record time, and it can record 50 fps 4K footage for up to 64 minutes, triple the standard record time, before the camera can overheat and shut down.

The durable aluminum unit is hinged so it can fold down 90° to allow the screen to pop out and store, and it features a speed adjustment switch to adjust the fan from off, low, and high-speed modes. The unit is powered using a separately available power source via its USB-C port, such as a battery plate or a power bank.

Powerful Semiconductor for Fast Cooling

Made by a precise six-layer structure and high-quality semiconductor materials. Mounts closely to the camera backplate to achieve full coverage and efficient heat dissipation.

Swivel Design, Convenient for Storage

When combined with the adjustable, swivel-based mounting point on the Full and Half Cage for ZV-E1, the heat sink can be rotated 90° away from the camera body. This allows the heat sink to be flipped up for storage even when the flip screen is in a closed position.

Complete Coverage via Seamless Design

The Cooling Module is equipped with a 7-blade turbo fan, fitting seamlessly with the camera backplate, achieving full coverage and efficient heat dissipation.

Multi-Speed Cooling with Flexible Adjustment

The heat sink can be adjusted using the switch on the right side to change between off, low-speed, and high-speed modes.
