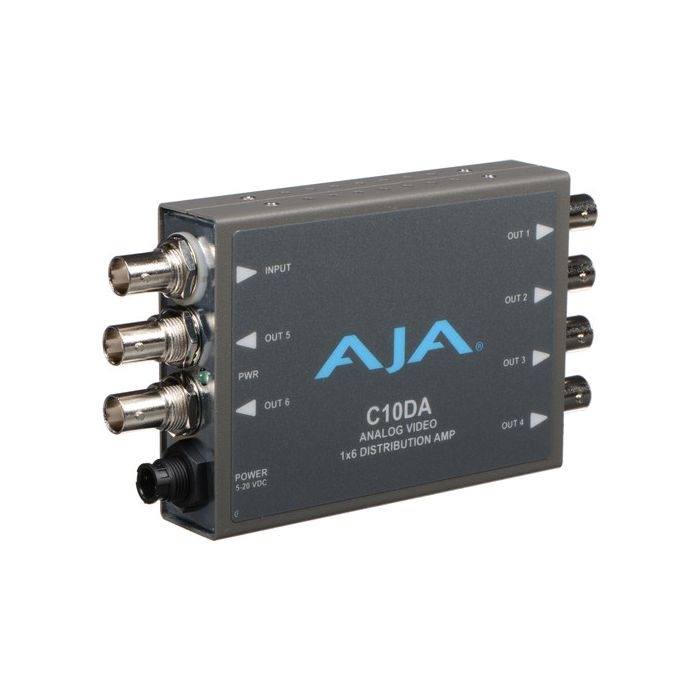

AJA C10DA
by AJA
Dostupnost:
Isporuka 14-20 dana
SKU
VZ-3058851
The C10DA Analog BNC 1x6 Distribution Amplifier from AJA features one analog BNC video input and six BNC outputs that support NTSC and PAL signals.
288,75 €
231,00 €
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
- AJA C10DA Analog BNC 1x6 Distribution Amplifier
- AJA DWP-U-R1 Worldwide Power Supply for AJA Mini-Converters
The unit supports bi-level and tri-level reference signals, and it features AES-id and LTC support. The amplifier features a DIP switch for input/output settings, signal termination, and gain. A universal power supply is included.
| Input | 1 x BNC, Analog HD/SD-SDI |
| Outputs | 6 x BNC, Analog HD/SD-SDI |
| Video Format Support | NTSC, PAL |
| Termination | 75 Ohms, Non-Terminated Option |
| Video Bandwidth | 0 to 6 MHz ±0.1 dB |
| Common Mode | 10 Vpp |
| Return Loss | >35 dB to 6 MHz |
| Output Isolation | >40 dB |
| Gain | -3 to +3 dB ±0.3 dB Diff Gain: 0.15%, Not Load Dependent Diff Phase: 0.1°, Not Load Dependent |
| Horizontal/Vertical | Tilt: < 0.1% |
| Response | <0.1 dB, 1 to 6 Loads |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -40 to 140°F / -40 to 60°C |
| Relative Humidity, Non-Condensing | 10 to 90% |
| Operating Altitude | <10,000' / 3000 m |
| Power | 5 VDC, 2 W |
| Dimensions | 5.8 x 3.1 x 1" / 14.7 x 7.9 x 2.5 cm |
| Weight | 12.8 oz / 363 g |
Packaging Info
| Package Weight | 1.665 lb |
| Box Dimensions (LxWxH) | 7.3 x 5.9 x 4.15" |
