AJA U-TAP-SDI
by AJA
Dostupnost:
Isporuka 14-20 dana
SKU
VZ-30597193

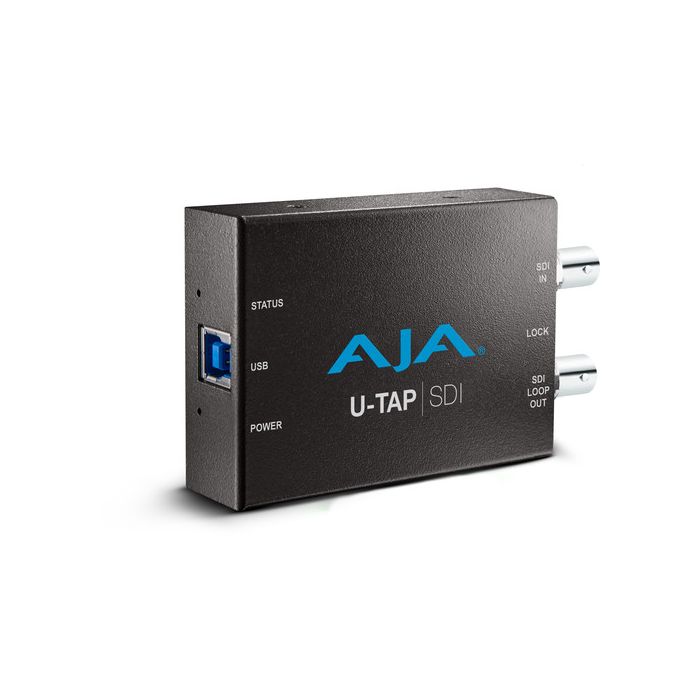

Capture 3G-SDI video on your computer or laptop with this U-TAP USB 3.1 Gen 1 Powered SDI Capture Device from AJA. The compact converter fits in your pocket and features a 3G-SDI input, a 3G-SDI output, and a USB 3.1 Gen 1 Type-B output.
567,50 €
454,00 €
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
- AJA U-TAP USB 3.1 Gen 1 Powered SDI Capture Device
- USB Type-B to USB Type-A Cable
The U-TAP SDI supports frame rates up to 1080p60 and supports auto-scaling. The SDI loop-through outputs the source SDI signal to monitors, switchers, and other destinations. Embedded stereo audio is also supported and sent through the USB output to your computer. A wide range of Windows, macOS, and Linux software is supported, and no additional drivers are required. The unit is powered over the USB Type-B connection using the included cable.
- USB 3.1 Gen 1 Type-B host output interface, 3G-SDI input up to 1080p60, and 3G-SDI loop output to monitors
- UVC and UAC compatible on macOS, Windows, and Linux, negating the need for additional drivers
- Powered using the USB Type-B port
- Two-channel 24-bit, 48 kHz audio input
- Auto-scaling support
| Host Connection | USB Type-B (USB 3.2 Gen 1 / USB 3.1 Gen 1 / USB 3.0) |
Input
| Video Input Connectors | 1 x BNC (3G-SDI) Female |
| Input Video Format | SDI WUXGA (1920 x 1200): 25/29.97/30/50/59.94/60 fps 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080i: 25/29.97/30 fps 720p: 50/59.94/60 fps 576p: 25/29.97/30/50/59.94/60 fps 480p: 25/29.97/30/50/59.94/60 fps PAL NTSC |
| Audio Input Connectors | None |
| Input Audio Format | Analog: 48 kHz / 24-Bit |
| Embedded Audio Input | SDI: 2-Channel |
Output
| Video Output Connectors | 1 x BNC (3G-SDI) Female (Loop Output) |
Standards
| Video Standard Compliance | SMPTE 259M/292M |
| OS Compatibility | Windows macOS Linux |
| Power Connector | None |
| Power Consumption | Device: 5 VDC (6.5 W) |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -40 to 140°F / -40 to 60°C |
| Operating Humidity | 10 to 90% |
General
| Dimensions | 4.1 x 2.4 x 1" / 10.41 x 6.1 x 2.54 cm |
| Weight | 0.3 lb / 0.14 kg |
| Warranty Length | Limited 3-Year Warranty |
Packaging Info
| Package Weight | 0.85 lb |
| Box Dimensions (LxWxH) | 7.25 x 5.5 x 4.05" |
