Atomos Neon 24

by Atomos
Dostupnost: Isporuka 7-10 dana
SKU
ATOMNEO241
  • 4096 x 2160 Native Resolution
  • Supports up to DCI 4K/UHD 4K
  • 10-Bit DCI P3 Color Gamut Displayed
  • 1000 cd/m² with 512 Backlight Zones
4.998,75 € 3.999,00 €

Sadržaj pakiranja

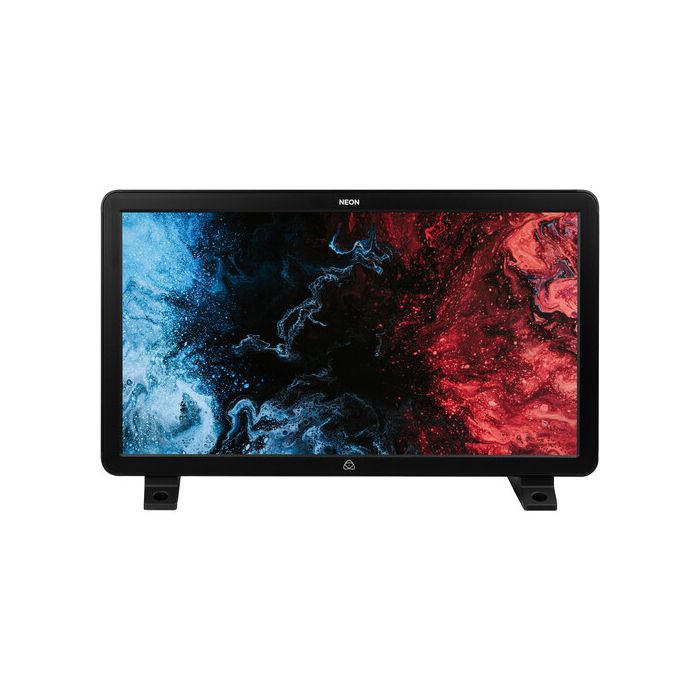

Atomos NEON 24" 4K HDR Monitor/Recorder
Master Control Unit
Master Caddy II
AC Power Supply
AtomX SDI Expansion Module
2 x Support Feet (Including Mounting Screws)

Not in the Box
Essential Recording Media (Not Included)

This Atomos NEON 24" 4K HDR Monitor/Recorder is part of the NEON family of monitor/recorders designed as an accurate and consistent monitoring solution with deep blacks and excellent contrast, as well as ProRes and DNx recording capability. This 24" monitor/recorder features a 4096 x 2160 native resolution while supporting DCI and UHD 4K, as well as 1080p/i and 720p. The monitor provides a clear image well capable of supporting HDR and displaying a 10-bit image that covers 100% of the DCI P3 standard. Its 1000 cd/m² brightness and 512 zones of backlight allow the monitor to achieve a contrast ratio of 1,000,000:1.

The NEON features a Master Control Unit that runs the AtomosOS, controlling the monitor. The Master Control Unit is user-replaceable, so you can have the latest Atomos technology without having to replace the entire monitor. Remote control over your NEON is via a downloadable app and your iOS mobile device. Input your video for display via HDMI or SDI (using the included SDI expansion module) and the monitor displays your video. It can also capture ProRes and DNx to a 2.5" SSD (not included) in the Master Caddy II or to a separately available AtomX SSDmini. The monitor features loop-through and cross conversion outputs, and it supports both Rec 709 and Dolby Vision.


The Neon Lineup of Monitor/Recorders

The Neon line is a series of precision on-set and in-studio 4K HDR monitor/recorders that can be synced together to provide a consistent image display and recording system. Multiple NEON monitors, up to 1000, can all be controlled by the Atomos app running on a single iOS mobile device. This allows you to have each camera outputting to its own NEON, and the synced up NEONs will record footage with matching timecode.

The App

NEON uses Bluetooth to connect to your iOS mobile device running the Atomos iOS app that controls the built-in AtomosOS. The app provides controlled playback, slow motion, frame-by-frame analysis, and preview tools. Multiple NEONs sync to each other using sub-gigahertz RF that gives them a range up to 656'.

Imaging Tools

Imaging tools include focus peaking, exposure, calibration, zoom, waveform monitor, RGB monitor, vectorscope, and LUT selection.

Removable Cover Glass

The cover glass of the NEON can be removed to help minimize any reflections.

Inputs and Outputs

The NEON is ready for your HDMI production out of the box, supporting HDMI 2.0b. The included SDI Expansion Module provides you with 12G-SDI in, out, and loop-through, as well as cross conversion between SDI and HDMI and vice versa.

Video Output

The monitor outputs to Rec.709, HLG, PQ, LUT, and it can display in SDR or HDR, converting as necessary to Rec.709, HLG, PQ, and LUT.

Flexibility

You can record in online quality at 4Kp60 in real time with ProRes Raw, ProRes, and Avid DNx with playout to Dolby Vision.


Supported Input Gamma

  • Sony: SLog / SLog2 / SLog3
  • Canon: CLog / CLog2 / Clog3
  • ARRI: Log CEI160 / LogCEI200 / LogCEI250 /LogCEI320 /LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800/ LogCEI1000 / LogCEI1280 / LogCEI1600
  • Panasonic: Vlog
  • JVC: JLog1
  • RED: RED Log3G10 / RED LogFilm
  • FUJIFILM: F-log
  • PQ10k
  • HLG


Supported Input Gamut

  • Sony: SGamut / SGamut3 / SGamut3.cine
  • Canon Cinema: / DCI P3 / DCI P3+
  • Nikon: NLog
  • Panasonic: V Gamut
  • ARRI: ALEXA Wide Gamut
  • Rec. 709 / BT.2020
  • JVC
  • RED: WideGamut / DragonColor / DragonColor2 / Color2 / Color3 / Color4

Mounting

The NEON comes with support feet and follows the following mounting protocols: ARRI compatible, 3 left, 3 right, 7 top, 7 bottom; VESA mount.

Atomos NEON Specs
Display
Display Size 24.00" / 61.0 cm
Screen Resolution 4096 x 2160
Aspect Ratio 17:09
Viewing Angle Horizontal: 180°
Vertical: 180°
Touchscreen No
Maximum Brightness 1000 cd/m2
Dynamic Contrast Ratio 1,000,000:1
Bit Depth / Color Support 10-Bit (1.07 Billion Colors)
Pixels Per Inch (ppi) 193 ppi
Color Gamut 100% DCI-P3
Real-Time LUT Monitoring SDR, HDR
I/O
Video 1 x HDMI Type A (HDMI 2.0b) Input
1 x BNC (12G-SDI) Input
1 x HDMI Type A (HDMI 2.0b) Output
1 x BNC (12G-SDI) Output
Embedded Audio HDMI: 8-Channel
SDI: 12-Channel
Audio 2 x 3.5 mm Mic/Line Input
1 x 3.5 mm Headphone Output
Built-In Speaker None
Card Slot None
Format Support
Video Format HDMI (10-Bit)
DCI 4K: 60/50/30/25/24
UHD 4K: 60/50/30/25/24
DCI 2K: 120/100/60/50/30/25/24
1080p: 240/200/120/100/60/50/30/25/24
1080i: 60/50
720p: 60/50
Video Signal Conversion HDMI to SDI
DCI 4K: 60/50/30/25/24
UHD 4K: 60/50/30/25/24
1080p: 120/100/60/50/30/25/24
1080i: 60/50
720p: 60/50
SDI to HDMI
DCI 4K: 60/50/25/24
UHD 4K: 60/50/30/25/24
1080p: 120/100/60/50/30/25/24
1080i: 60/50
720p: 60/50
Recording
Pulldown Conversion 2:2, 3:2
Camera Trigger SDI, HDMI
Pre-Roll Record None
Encoding Formats Up to 4096 x 2160
ProRes 422, HQ, LT
DNxHR HQ, HQX, LB, SQ
Recording Media 1 x 2.5" SSD (SATA III)
Power
Battery Type None
General
Material of Construction Aluminum, Polycarbonate
Dimensions (W x H x D) 23.39 x 13.39 x 2.85" / 594 x 340 x 72.5 mm
Weight 18.96 lb / 8.6 kg
Warranty Length Limited 1-Year Warranty
Packaging Info
Package Weight 60 lb
Box Dimensions (LxWxH) 30 x 21 x 13.75"
