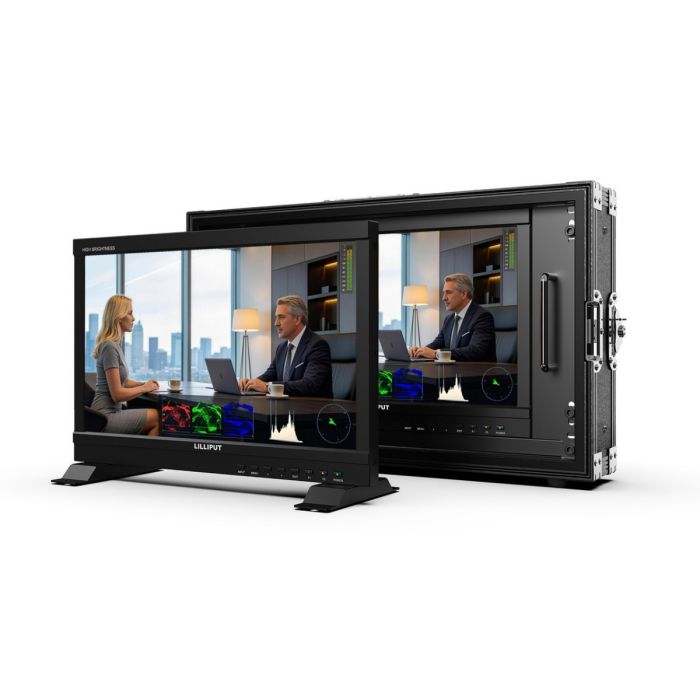

Lilliput PVM160S-H 15.6" Professional Video Monitor
by LilliputThe LILLIPUT PVM160S-H is a high-brightness 15.6" professional broadcast monitor designed to give cinematographers, videographers, and directors absolute precision on set. Boasting a sunlight-viewable 1200 nits Full HD panel, it ensures a clear picture under any lighting condition.
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
- Lilliput PVM160S-H 15.6" Professional Video Monitor
- 15V 4A DC Adapter
- Base Bracket
- Manual
The LILLIPUT PVM160S-H is a high-brightness 15.6" professional broadcast monitor designed to give cinematographers, videographers, and directors absolute precision on set. Boasting a sunlight-viewable 1200 nits Full HD panel, it ensures a clear picture under any lighting condition.
With versatile 3G-SDI and HDMI 2.0 inputs and loop outputs, this cost-effective monitoring powerhouse bridges the gap between field mobility and studio accuracy. Packed with broadcast-essential features—including Waveform, Vectorscope, 3D-LUT support, HDR, and custom Gammas—the PVM160S-H provides everything you need for flawless exposure and precise color calibration.
1200NITS HIGH-BRIGHT BROADCAST MONITOR
Broadcast high-bright monitor for professional video camera & camcorder.
Application for video post-production & making movies.
OUTDOOR FILMMAKING
A portable production monitor designed for outdoor filmmaking/broadcast live, the 1200 nits of high brightness screen effectively combats sunlight and allows for accurate color reproduction.
HDR INTERFACES
SUPPORT ST2084 300/1000/10000 / HLG
Making lighter and darker details to be displayed more clearly. Under 1200 nits brightness, it can show the effect of 1+1>2.
OPTIONAL BATTERY PLATES
The back of broadcast monitor is equipped with VESA 100mm installation options, which is compatible with the installation of most of light stands and battery plates. The battery plate can be selected from V-lock battery plate and Anton Bauer battery plate.
- DC IN
DC 8–24V input - UPGRADE
For LUT or upgrade - 3G-SDI INPUT & LOOP OUTPUT
Support up to 1080p60 - HDMI 2.0 INPUT & LOOP OUTPUT
Support up to 2160p60 - EARPHONE JACK
3.5mm audio output
| Display | |
| Panel | 15.6" |
| Physical Resolution | 1920 × 1080 |
| Aspect Ratio | 16:9 |
| Brightness | 1200 cd/m² |
| Contrast | 1000:1 |
| Viewing Angle | 160° / 160° (H/V) |
| HDR | ST2084 300/1000/10000 / HLG |
| Supported Log formats | SLog2 / SLog3 / CLog / NLog / ArriLog / JLog / User… |
| Look Up Table (LUT) support | 3D LUT (.cube format) |
| Calibration | Calibration to Rec.709 with optional calibration unit |
| Video input | |
| SDI | 1 × 3G |
| HDMI (Input) | 1 × HDMI 2.0 |
| Video loop output | |
| SDI | 1 × 3G |
| HDMI | 1 × HDMI 2.0 |
| Supported formats | |
| SDI | 1080p 24/25/30/50/60, 1080PsF 24/25/30, 1080i 50/60 |
| HDMI | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 |
| Audio In/Out | |
| HDMI Color Depth | 2ch 48 kHz 24-bit |
| SDI Color Depth | 8ch 24-bit |
| Ear Jack | 3.5 mm |
| Built-in Speakers | 1 |
| Power | |
| Input Voltage | DC 9–24 V |
| Power Consumption | 39 W (15 V) |
| Compatible Batteries | V-Lock ili Anton Bauer Mounts (opcionalno) |
| Input Voltage (Battery) | 14.8 V nominal |
| Environment | |
| Operating Temperature | 0 °C – 50 °C |
| Storage Temperature | –20 °C – 60 °C |
| Other | |
| Dimensions (L × W × D) | 376 × 247.7 × 49.3 mm |
| Weight | 3.15 kg |
