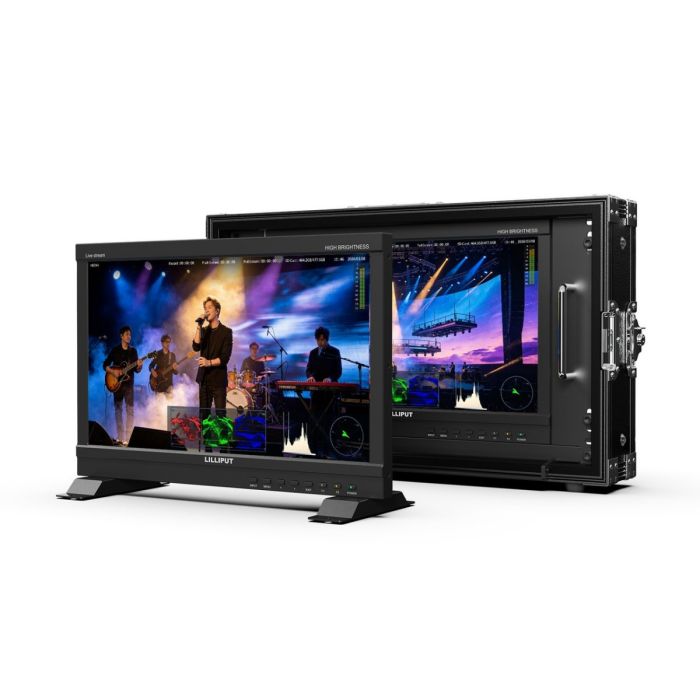

Lilliput PVM160S-E 15.6" Professional Video Monitor

The LILLIPUT PVM160S-E is an all-in-one 15.6" professional monitoring and recording powerhouse designed for directors, videographers, and livestreamers. Featuring a sunlight-viewable 1200 nits Full HD display, it delivers crystal-clear images in any environment.

It features seamless 3G-SDI and HDMI 2.0 compatibility, versatile live-stream capabilities (3 push / 1 pull stream), and direct-to-SD card recording up to 1080p60. Packed with advanced tools like 3D-LUT, HDR, Waveform, and Vectorscope, it gives production teams the professional accuracy they need on set or on the go.

15.6" 1200NITS LIVE STREAM RECORDING MONITOR
High brightness live streaming monitor for recording function.
Application for video push/pull streaming & live event.

Recording Function
When setting the format of the recorded video, users can choose from Bitrate, Encoding, Resolution, FPS and other options.

RECORD With SD Card
Video recording via SD card, supports overwriting function when recording.

Record playback
When the video recording is completed, users can select video playback in the menu.

LAN For PC or Router Connecting
Make sure the network is smooth and connect the push address of the live stream platform to share your unique ideas.

Push Stream to 3 Platforms
Supports to push stream to 3 different live streaming platforms at the same time.

Pull Stream From Network
Uploading the pull streaming address from the USB flash drive and show the creative ideas through the network.

USB UPLOAD For Push / Pull Stream Address
Create a text file to the USB flash drive to upload the push / pull stream address.

Pull and Push Stream With Webpage UI
Connect the monitor and computer to the same IP network segment, either static or dynamic environment. Then log in the web interface.

HDR INTERFACES SUPPORT ST2084 300/1000/10000 / HLG
Making lighter and darker details to be displayed more clearly. Under 1200 nits brightness, it can show the effect of 1+1>2.

INTERFACES & BATTERY PLATE
The back of broadcast monitor is equipped with VESA 100mm installation options, which is compatible with the installation of most light stands and battery plates. The battery plate can be selected from V-lock battery plate and Anton Bauer battery plate.

Interfaces

• DC 9–24V — Power Input
• NDI/LAN — Optional PoE and NDI
• USB-A — For Stream & LUT
• 3G-SDI IN/OUT — 1080p60Hz Input/Loop Output
• HDMI 2.0 IN/OUT — 2160p60Hz Input/Loop Output
• SD CARD SLOT — Support 512GB
• USB-C — For Upgrade
• AUDIO IN / EARPHONE — 3.5mm Audio Input and Output

3D LUT LOAD
Import LUT tables via USB to dye your scenes with different colors. It can quickly recombine colour tone to form different color styles. Built-in 3D-LUT, featuring 17 default logs and 6 user logs.
