Sadržaj pakiranja

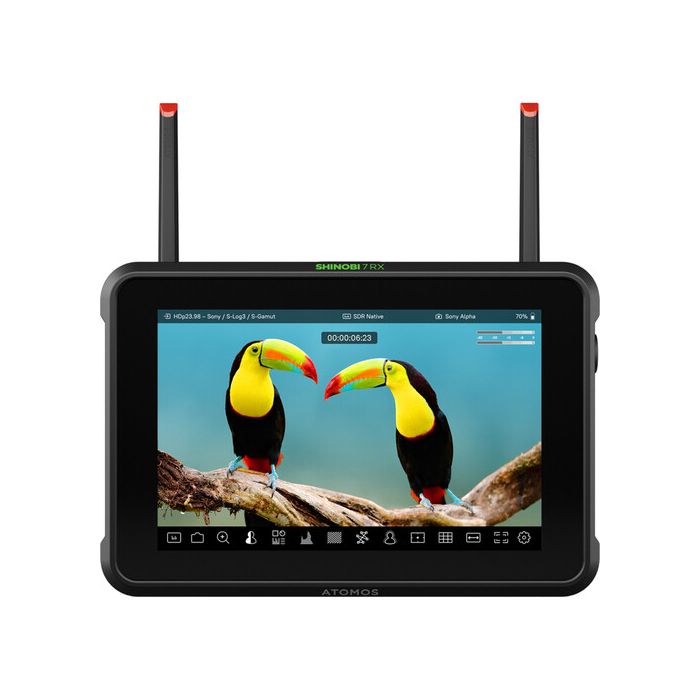

Atomos Shinobi 7 RX HDMI/SDI HDR On-Camera Monitor/Wireless Receiver
2 x Antenna
Antenna Tip Set (Back, White, Yellow, Green, Red)
2 x Antenna Cap
USB-C 2.0 Cable (3.3')

Opis

Add a bright, high-resolution on-camera monitor to your live production kit for your focus puller, director, or camera assistant with the Shinobi 7 RX HDMI/SDI HDR On-Camera Monitor/Wireless Receiver from Atomos. This 7" high-bright HDR monitor provides the ability to view 4K footage remotely via Wi-Fi while also providing remote focus and camera control in an Atomos TX/RX environment or via wired USB/serial.

7" Daylight Viewable Screen

The Shinobi 7 RX features a 7" IPS LCD 1920 x 1080 screen that is illuminated by a bright 2200 cd/m² LED backlight, making it possible to view in daylight without requiring a hood. Plus, the screen is also color calibrated from the factory to ensure accurate image representation.

Built-In Wi-Fi 6E

The Shinobi 7 RX provides built-in Wi-Fi to pair with an Atomos TX device, and it can even view external RTSP H.264 streams with low-latency wireless under 60ms from up to 984' away.

This allows your crew to move elements on the set freely without losing visual connection.

High-Resolution Connectivity

Monitor 4K footage in DCI or UHD 4K formats via HDMI 2.0 up to 60 fps and up to 1080p60 via 3G-SDI
Output signal via HDMI and 3G-SDI loop outputs
The Shinobi 7 RX features HDMI/SDI cross conversion support

Touch to Focus

While connected to a compatible camera, you can simply tap the Shinobi 7 RX touchscreen for the camera to automatically focus on your point of interest.

Touch to focus takes advantage of camera focus modes such as focus tracking for effortless control.

Power & Versatile USB-C Connection

The back of the monitor features dual NP-F/L-series battery slots for longer shoot durations, and it can also accept optional battery eliminators/dummy batteries. You can also power the monitor via a USB-C PD input via an optional adapter, external battery, or power bank.

In addition to providing power, the USB-C port can provide camera control for supported cameras. The USB-C port can also be used with external calibrators without the need for a computer.

Supported Log Formats

The monitor supports numerous Log formats, including:

Sony: SLog / SLog2 / SLog3 / HLG
Canon: C-Log / C-Log2 / C-Log3
ARRI: Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320 / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600
Panasonic: V-Log / HLG, JVC J-Log
RED: RedLogFilm / Log3G10 / Log3G12
FUJIFILM: F-Log, PQ (HDR10), HLG
Nikon: N-Log

HDR Monitoring

The monitor supports numerous HDR formats, including:

BT.2020, DCI P3, DCI-P3 D65, and Rec. 709
Sony: S-Gamut / S-Gamut3 / S-Gamut3.cine / BT.2020 / Rec. 709
Canon Cinema: DCI P3 / DCI P3plus / Rec. 709
Panasonic: V Gamut
ARRI: ALEXA Wide Gamut
JVC: LS300
RED: DragonColor / DragonColor2 / RedColor2 / RedColor3 / RedColor4 / RedWideGamut

Audio Monitoring

Input/output embedded audio via HDMI and SDI, and output audio using the 3.5mm headphone port for convenient audio monitoring. There's also a 3.5mm stereo line audio input to monitor external sound.

Image Tools

The monitor runs the latest AtomOS firmware that features a variety of onscreen analysis tools such as multi-scope views, exposure, framing, focus assist, waveform, RGB parade, and histogram tools.

An SD card slot allows you to load custom 3D LUTs and apply them to both input and output signals, and they can be used with the built-in image tools for exposure control.

Camera Control

The Shinobi 7 RX supports intuitive camera control for Canon, FUJIFILM, Nikon, Panasonic, Sony (via USB-C), and Z CAM E2 (via optional serial cable). Its intuitive interface makes adjusting aperture, shutter speed, and ISO fast and responsive.

Depending on the supported camera, it can control features such as Record Trigger, White Balance, Shutter Speed, Shutter Angle, Aperture, ISO, Camera Overlays, Record Indicator, Touch to Focus, and more.

Calibration

The Shinobi 7 RX monitor can be calibrated with Calibrite Display Pro HL/Plus HL probe, and using the Atomos Calibrator app, for ongoing accurate HDR and Rec. 709 monitoring.

Accurate monitoring ensures reliable results.

Anamorphic De-Squeeze

The Shinobi 7 RX supports anamorphic de-squeeze, allowing you to comfortably view anamorphic footage with a squeeze of 2x, 1.8x, 1.79x, 1.65x, 1.6x, 1.5x, 1.33x, and 1.25x.

Specifikacije

Display
Panel Type	IPS-Type LCD
Display Size	7.0" / 17.8 cm
Native Resolution	1920 x 1200
Aspect Ratio	0,673611111
Touchscreen	Yes
Maximum Brightness	2200 nits / cd/m2
Color Support	1.07 Billion Colors (10-Bit)
HDR Support	Yes: Advanced HDR
Color Gamut	100% Rec. 709
LUT Support	Yes
Image Controls	Anamorphic De-Squeeze, Blue Only, False Color, Focus Peaking, Histogram, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra
Inputs/Outputs
Antenna I/O	2x RP-SMA
Video I/O	1x HDMI 2.0 Input
	1x BNC (3G-SDI) Input
	1x HDMI 2.0 Loop Output
	1x BNC (3G-SDI) Output
Embedded Audio	HDMI: 8-Channel
	SDI: 12-Channel
Audio I/O	1x 1/8" / 3.5 mm Line Input
	1x 1/8" / 3.5 mm Headphone Output
Built-In Speaker	No
Power I/O	1x Barrel (16.8 VDC) Input
Other I/O	1x 2.5 mm (LANC) Output
	1x USB-C 3.0 / 3.1/3.2 Gen 1 Input [Shared with Power, Camera Control]
	2x USB-C 3.0 / 3.1/3.2 Gen 1 Output
Media/Memory Card Slot	Single Slot: SD/SDHC/SDXC [LUT/Firmware Update Only]
Wireless
Wireless Range	984.3' / 300 m
Frequency Range	5 GHz
Latency	60 ms
Wi-Fi	Wi-Fi 6E (802.11ax)
Bluetooth	No
Mobile App Compatible	No
Format Support
Video Format	HDMI (8/10-Bit 4:2:2)
	DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
	UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
	DCI 2K: 60/59.94/50/30/29.97/25/24/23.98
	1080p: 60/59.94/50/29.97/25/24/23.98
	1080i: 60/59.94/50
	720p: 60/59.94/50
	SDI (8/10-Bit 4:2:2)
	DCI 2K: 60/59.94/50/30/29.97/25/24/23.98
	1080p: 60/59.94/50/30/25/24/23.98
	1080i: 60/59.94/50
	720p: 60/59.94/50
Video Signal Conversion	HDMI to SDI
	1080p
	SDI to HDMI
	1080p
Audio Format	8-Channel 24-Bit
Power
Input Power	6.2 to 16.8 VDC
Battery	2x L-Series Mount on Fixed Plate
Power Consumption	13 W (Maximum)
Mounting
Tripod/Accessory Mounting	Top
	1x 1/4"-20 Female
	Bottom
	1x 1/4"-20 Female
General
Environmental Resistance	No
Operating Conditions	Up to 104°F / 40°C
Material of Construction	Plastic
Dimensions	7.8 x 5.2 x 1.5" / 198 x 133 x 39 mm
Weight	1.3 lb / 580.00 g
