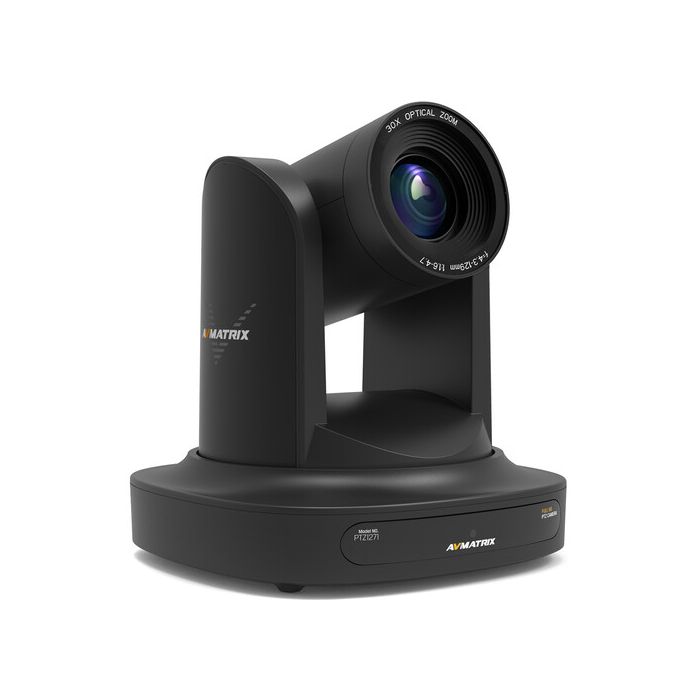

AVMATRIX PTZ1271-20X-POE 20X SDI HDMI PTZ Camera
by Avmatrix- 1/2.8" HD CMOS Sensor
- 20x Optical Zoom, 10x Digital Zoom
- HDMI & 3G-SDI Video Output, PoE Power
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
- AVMATRIX PTZ1271-20X-POE Full HD PTZ Camera
- Power Supply
- RS232 Control Cable
- Remote Control
Add a powerful PTZ camera setup with HD video capture to your production with this PTZ1271-20X-POE Full HD PTZ Camera from AVMatrix. The camera offers precision control and multiple output ports offering up to 1080p video, and it also supports control and streaming over LAN. Designed for broadcast, security, and teleconferencing needs, the PTZ1271-20X-POE also supports VISCA, PELCO-D, and PELCO-P control protocols.
The integrated f/1.6 to 3.5 lens offers 20x optical and 10x digital zoom functions. This camera supports video output via HDMI and 3G-SDI and has a LAN port for streaming via RTMP, RTSP, or ONVIF. Power this PTZ camera using the the included 12 VDC adapter or via PoE. Quick pan and tilt speeds and picture controls like brightness, color, saturation, contrast, sharpness, and 2D/3D Noise Reduction provide precision control of your images.
Features
HDMI, 3G-SDI, and LAN video outputs
Supports up to 1080p video via HDMI and 3G-SDI
Built-in f/1.6 to 3.5 aperture lens with 20x optical and 10x digital zoom
Select up to 255 presets; up to 10 via included remote controller
A 1/4"-20 thread on the camera bottom can be used for mounting on a tripod, and an optional wall/ceiling mounting bracket is available
AVMATRIX PTZ1271 Specs
Imaging
Sensor Type |
1/2.8"-Type CMOS Sensor |
Sensor Resolution |
Effective: 2.07 Megapixel |
Built-In ND Filter |
None |
Focus Control |
Autofocus |
Exposure Control
Signal-to-Noise Ratio |
55 dB |
Flip / Mirror Support |
Image Flip |
White Balance |
3000 to 7000K |
Lens
Focal Length |
5.5 to 110mm |
Optical Zoom Ratio |
20x |
Max Digital Zoom |
10x |
Field of View |
3.3 to 54.7° |
Maximum Aperture |
f/1.6 to 3.5 |
Video Capture
External Recording Modes |
SDI/BNC / HDMI |
Broadcast Output |
NTSC |
IP Streaming |
RTMP, RTSP, SRT |
Control
Presets |
255 |
Move Speed |
Pan: 0.1 to 180°/sec |
Movement Range |
Pan: 340° (-170 to 170°) |
Supported Control Protocols |
Pelco-D |
Interface
Video I/O |
1 x BNC (3G-SDI) Output |
Audio I/O |
1 x 1/8" / 3.5 mm TRS Stereo Line Input |
Other I/O |
1 x RJ45 (LAN) |
Power
PoE Support |
PoE 802.3af |
Power I/O |
1 x Barrel Input |
Power Consumption |
Device: 12 VDC at 1 A (12 W) |
Environmental
Operating Temperature |
14 to 122°F / -10 to 50°C |
Storage Temperature |
14 to 140°F / -10 to 60°C |
Operating Humidity |
20 to 80% (Non-Condensing) |
Storage Humidity |
20 to 95% (Non-Condensing) |
General
Mounting |
1 x 1/4"-20 Female for Tripod |
Dimensions (W x H x D) |
6.7 x 7.1 x 6.7" / 170 x 180.31 x 170 mm |
Weight |
2.76 lb / 1.25 kg |
Packaging Info
Package Weight |
4.765 lb |
Box Dimensions (LxWxH) |
10.5 x 9.8 x 9.2" |
