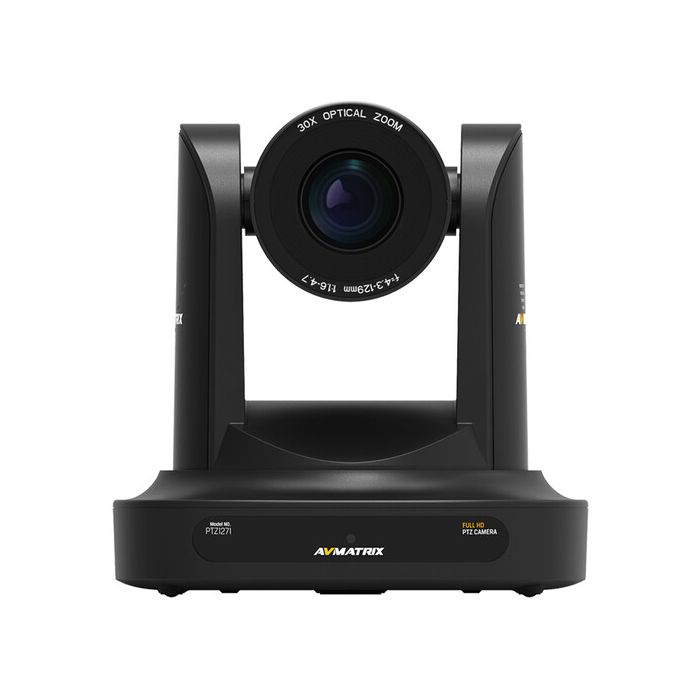

AVMATRIX PTZ1271-30X-POE 30X SDI HDMI PTZ Camera

by Avmatrix
Raspoloživost: Isporuka 14-20 dana
SKU
PTZ1271-30X-POE
  • 1/2.8" HD CMOS Sensor
  • 30x Optical Zoom, 10x Digital Zoom
  • HDMI & 3G-SDI Video Output, PoE Power
1.367,25 €/10.301,55kn 1.093,80 €/8.241,24kn
Tečaj konverzije: 1 EUR = 7,53450 HRK

Sadržaj pakiranja

  • AVMATRIX PTZ1271-30X-POE Full HD PTZ Camera
  • Power Supply
  • RS232 Control Cable
  • Remote Control

Add a powerful PTZ camera setup with HD video capture to your production with this PTZ1271-30X-POE Full HD PTZ Camera from AVMatrix. The camera offers precision control and multiple output ports offering up to 1080p video, and it also supports control and streaming over LAN. Designed for broadcast, security, and teleconferencing needs, the PTZ1271-30X-POE also supports VISCA, PELCO-D, and PELCO-P control protocols.

The integrated f/1.6 to 4.7 lens offers 30x optical and 10x digital zoom functions. This camera supports video output via HDMI and 3G-SDI and has a LAN port for streaming via RTMP, RTSP, or ONVIF. Power this PTZ camera using the the included 12 VDC adapter or via PoE. Quick pan and tilt speeds and picture controls like brightness, color, saturation, contrast, sharpness, and 2D/3D Noise Reduction provide precision control of your images.

Features

HDMI, 3G-SDI, and LAN video outputs

Supports up to 1080p video via HDMI and 3G-SDI

Built-in f/1.6 to 4.7 aperture lens with 30x optical and 10x digital zoom

Select up to 255 presets; up to 10 via included remote controller

A 1/4"-20 thread on the camera bottom can be used for mounting on a tripod, and an optional wall/ceiling mounting bracket is available

AVMATRIX PTZ1271 Specs

Imaging

Sensor Type

1/2.8"-Type CMOS Sensor

Sensor Resolution

Effective: 2.07 Megapixel

Built-In ND Filter

None

Focus Control

Autofocus

Exposure Control

Signal-to-Noise Ratio

55 dB

Flip / Mirror Support

Image Flip

White Balance

3000 to 7000K

Lens

Focal Length

4.3 to 129mm

Optical Zoom Ratio

30x

Max Digital Zoom

10x

Field of View

2.34 to 65.1°

Maximum Aperture

f/1.6 to 4.7

Video Capture

External Recording Modes

SDI/BNC / HDMI
1920 x 1080p

Broadcast Output

NTSC

IP Streaming

RTMP, RTSP, SRT
1920 x 1080

Control

Presets

255

Move Speed

Pan: 0.1 to 180°/sec
Tilt: 0.1 to 80°/sec

Movement Range

Pan: 340° (-170 to 170°)
Tilt: 120° (-30 to 90°)

Supported Control Protocols

Pelco-D
Pelco-P
VISCA

Interface

Video I/O

1 x BNC (3G-SDI) Output
1 x HDMI Output

Audio I/O

1 x 1/8" / 3.5 mm TRS Stereo Line Input

Other I/O

1 x RJ45 (LAN)
1 x Mini-DIN 8-Pin (RS-232) Input
1 x Mini-DIN 8-Pin (RS-232) Output
1 x Block (RS-485) Input

Power

PoE Support

PoE 802.3af

Power I/O

1 x Barrel Input

Power Consumption

Device: 12 VDC at 1 A (12 W)

Environmental

Operating Temperature

14 to 122°F / -10 to 50°C

Storage Temperature

14 to 140°F / -10 to 60°C

Operating Humidity

20 to 80% (Non-Condensing)

Storage Humidity

20 to 95% (Non-Condensing)

General

Mounting

1 x 1/4"-20 Female for Tripod

Dimensions (W x H x D)

6.7 x 7.1 x 6.7" / 170 x 180.31 x 170 mm

Weight

2.76 lb / 1.25 kg

Packaging Info

Package Weight

4.885 lb

Box Dimensions (LxWxH)

10.5 x 9.8 x 9.2"
