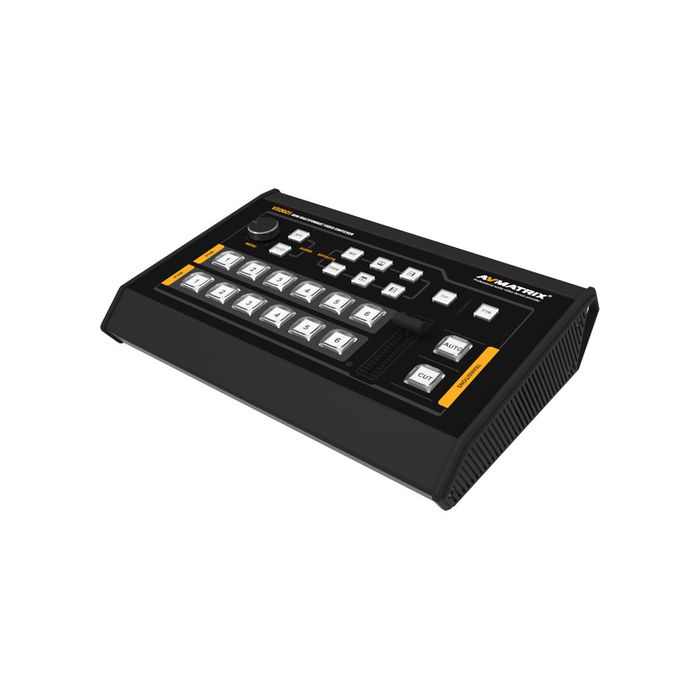

AVMATRIX VS0601 Mini 6 ChannelMulti-format Video Switcher
by AvmatrixCompact 6-Channel Video Switcher
4 x 3G-SDI and 2 x HDMI Inputs
SDI/HDMI PGM, AUX, and Multiview Outputs
Input up to 4K60 Video via HDMI
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
- AVMATRIX VS0601 Mini 6-Channel SDI/HDMI Multi-Format AV Switcher
- Power Supply
Switch up to six different HDMI and SDI video inputs while monitoring the program feed with the VS0601 Mini 6-Channel SDI/HDMI Multi-Format AV Switcher from AVMATRIX. Concert productions, events, houses of worship, virtual studios, educational institutions, and live sports programming are some of the use cases where the VS0601 could be utilized. Its portable form factor makes it a TV studio you can take anywhere and set up with minimal effort or additional equipment.
You can output multiview layouts via SDI and HDMI that show preview, program, and input sources, all on the same screen with configurable PiP functionality. The VS0601 features four 3G-SDI and two HDMI inputs that can be connected to cameras or other consumer or professional sources for switching up to 1080p60 video with embedded audio. You can also mix the audio using the analog stereo 2RCA and 3.5mm inputs and outputs along with the embedded audio.
Its interface features source and destination buttons and a T-bar for transitions and cuts as well as mix, fade, and wipe effects. It features a tally interface and emergency fade-to-black (FTB) functionality.
AVMATRIX VS0601 Specs
Effect Types | 1 x Transition |
Switching Type | T-Bar |
Processing Resolution | 1080p |
Number of Video Input Sources | 6 |
Video Input Connectors | 4 x BNC (3G-SDI / HD-SDI / SD-SDI) Female 2 x HDMI Female |
Input Video Format | HDMI 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080i: 50/59.94/60 fps 720p: 23.98/24/25/29.97/30/50/59.94/60 fps 576p: 50 fps PAL: 50 fps SDI 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF: 23.98/24/25/29.97/30 fps 1080i: 50/59.94/60 fps 720p: 23.98/24/25/29.97/30/50/59.94/60 fps PAL: 50 fps NTSC: 59.94 fps |
Audio Input Connectors | 1 x 1/8" / 3.5 mm TRS Stereo Analog Female 1 x 2RCA Stereo Analog Female |
Input Audio Format | Analog |
Embedded Audio Input | HDMI SDI |
Video Output Channels | 6 |
Video Output Connectors | 2 x BNC (3G-SDI / HD-SDI / SD-SDI) Female (Program) 1 x HDMI Female (Program) 2 x BNC (3G-SDI / HD-SDI / SD-SDI) Female (Monitor) 1 x HDMI Female (Monitor) |
Output Video Format | HDMI / SDI 1080p: 24/25/30/50/60 fps 1080i: 50/60 fps |
Audio Output Connectors | 1 x 2RCA Stereo Analog Female 1 x 1/8" / 3.5 mm TRS Stereo Analog Female |
Output Audio Format | Analog |
Embedded Audio Output | HDMI: 2-Channel (per Output) SDI: 2-Channel (per Output) |
Multiview Output | 6-Way Multiview viaHDMI, SDI |
Other I/O | 1 x DE-15/DB-15 Tally Input 1 x RJ45 LAN Input/Output |
Video Standard Compliance | SMPTE 259M/292M/424M |
HDCP Support | None |
Power Connector | 1 x Barrel (12 VDC at 1.2 A) Input |
Power Consumption | Power Supply: 12 VDC at 2 A |
Operating Temperature | -4 to 140°F / -20 to 60°C |
Storage Temperature | -22 to 158°F / -30 to 70°C |
Dimensions | 9.81 x 6.78 x 2.2" / 24.92 x 17.23 x 5.5 cm |
Weight | 2.2 lb / 1 kg |
