BETSO SHARKIE

by Betso
Dostupnost: Isporuka 7-10 dana
SKU
BE-SHARKIE

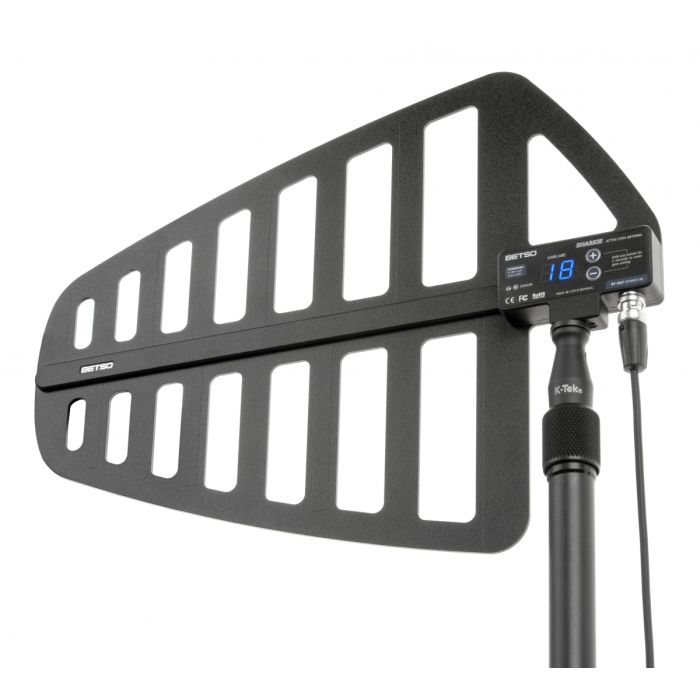

The SHARKIE is our new compact, wideband UHF, active receiver antenna with Log Periodic Dipole Array (LPDA) structure and cardioid directivity. It's extremely low noise amplifier with easy gain setting is ideal for variable coaxial cable length attenuation compensation in the field.

584,00 € 467,20 €

Sadržaj pakiranja

1 x Betso Sharkie

The SHARKIE is our new compact, wideband UHF, active receiver antenna with Log Periodic Dipole Array (LPDA) structure and cardioid directivity. It's extremely low noise amplifier with easy gain setting is ideal for variable coaxial cable length attenuation compensation in the field. Rock solid mechanical construction guarantees careless functionality both in indoor and outdoor locations.

Inbuilt ultra low noise amplifier allows antena usage in the situations with variable coaxial cable length from antena to receiver device. Higher attenuation of longer cables can be easily compensated by increasing gain, while in the situations with very short cables and strong receiving signal zero or even negative gain assures not to overshoot input dynamic range of the receiver.

Amplifier can be easily adjusted to any value betwen - 9 and + 18 dB in the step of 1 dB.

Voltage Standing Wave Ratio of less than 1.2 ensures great signal power reception. Very high Third-order Intercept Point IP3 >34 dBm providing great linearity and finally industry leading ultra low noise amplifier IC with noise figure 0.75 dB.

Sharkie high efficient input filters help to prevent receivers intermodulation with other sources in band outside of the main working range of wireless systems like walkie talkies, FM radios, wireless focus systems, WiFi and bluetooth devices, mobile phones, etc.

Performace of wireless system will be better with less dropouts.

Preset value of onboard amplifier gain is displayed on Inbuilt seven segment LED display upon power on and if required it keeps displaying for permanent possible readouts.

Display has furthermore automatic brightness setting feature, which adjusts its brightness according to actual ambient light condition avoiding unacceptable situations of everywhere shining display in dark places or unreadable gain value on direct sun light.

This automatic brightness feature can be disabled by setting of fixed brightness value or the display can be completely turned off while amplifier keeps working. In this mode any button press will temporally power on the display for possibility of changing the settings or just for preset gain readout.

Lightenned antenna structure is made of glass-reinforced epoxy laminate, which also covers all possibly fragile elements and ensures great durability in everyday use. Amplifier is made of CNC milled aluminium alloy and is sealed for great water resistant performance.

Antenna can be powered externally through coaxial cable from power source of 5 - 20 V DC. Professional hardware design with best in class integrated circuits results in extremely low power consumption which will be a big plus for your shooting rig performance.

Frequency range: 470 MHz to 850 MHz
Input filters attenuation: High below 450 MHz (for example -82dB @ 100 MHz), High above 870 MHz (for example -35dB @ 2.4 GHz)
Antenna gain: 8 dB of avarage gain (peak 9 dB)
Antenna directivity: Cardioid
Antenna polarization: Linear
Amplifier gain: -9 to 18 dB
Amplifier IC noise: Ultra low noise < 0.75 dB
Antenna VSWR: Excellent < 1.2 (max. 0.8% of received signal power is reflected)
Amplifier IP3: Very high > 34 dBm
Display: Bright blue LED with automatic or manual brightness settings and stand-by mode
Powering: External powering 5 - 20 V DC
Current consumption: 35 mA
Mechanic construction: CNC milled, anodized aluminium alloy and glass-reinforced epoxy laminate
Mounting: 1/4" and 3/8" threads
Dimensions (h x w x d): 275 x 350 x 21 mm
Weight: approx. 320 g (0.7 lb.)

Advanced features

Gain setting: Easy gain setting with automatic last set gain storing
Ambient light sensor: Brightness of LED display can be automatically adjusted according to ambient light
Manual brightness setting: Brightness of LED display can be also set manually to requested level
Dispaly stand-by mode: Display can be completely turned off with ability to show preset gain value upon button request
