Blackmagic Design Fairlight Audio MADI Upgrade

by Blackmagic Design

Rok isporuke: 7-10 dana

SKU

DV/RFL/AUDAMADI

For DaVinci Resolve 17 Systems
Requires Fairlight Audio Accelerator

228,75 € 183,00 €

Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Više detalja provjerite na linku Načini plaćanja.
Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sadržaj pakiranja

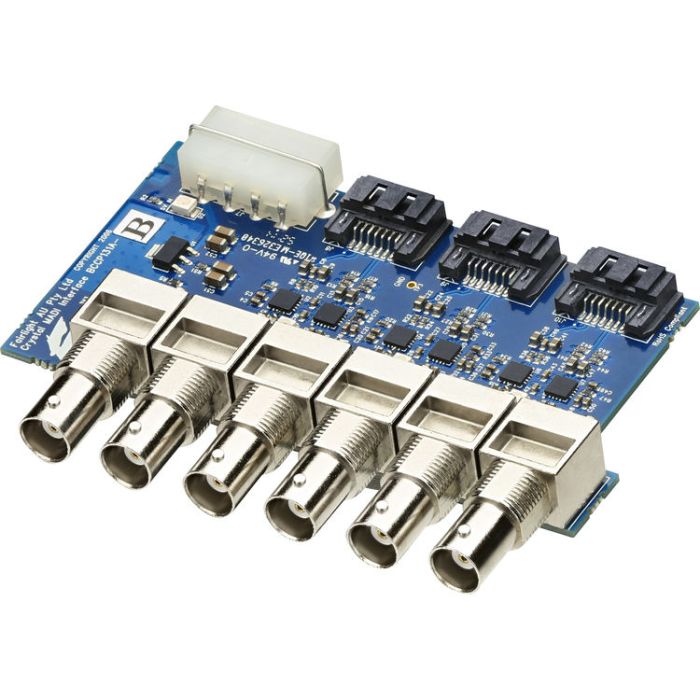

Blackmagic Design Fairlight PCIe Audio MADI Upgrade
3 x SATA Cables (11.8")
Computer Power Cable

Opis

Key Features

Enhanced Channel Capacity

With the Fairlight PCIe Audio MADI Upgrade, your total MADI channel count increases to 256 inputs and outputs, providing you with unparalleled flexibility for complex audio projects.

High-Quality Audio Resolution

This upgrade operates at a remarkable 24-bit / 48 kHz resolution, ensuring that your audio quality remains pristine, whether you are recording, mixing, or mastering your projects.

Efficient Connectivity

The upgrade features three 75-ohm BNC MADI inputs and three 75-ohm BNC MADI outputs. This design allows for an extensive number of audio channels while occupying minimal physical space in your setup.

Specifikacije

Channels of I/O	MADI: 192 Inputs / 192 Outputs at 48 kHz
Maximum Sampling Rate	48 kHz / 24-Bit
Number of Microphone Inputs	No
Analog Audio I/O	No
Digital Audio I/O	3x BNC Coaxial MADI Input 3x BNC Coaxial MADI Output
Host Connection	1x PCIe
OS Compatibility	macOS 10.15 or Later Windows 10 (64-Bit Only)
Power Requirements	PCIe
General
Display	No
Channels of I/O	MADI: 192 Inputs / 192 Outputs at 48 kHz
Maximum Sampling Rate	48 kHz / 24-Bit
Number of Microphone Inputs	No
Signal Processing	NTSC
Pad	No
High-Pass Filter	No
Solo/Mute	No
Connectivity	1x Barrel (6 to 30 VDC ) Input
Analog Audio I/O	No
Phantom Power	No
Digital Audio I/O	3x BNC Coaxial MADI Input 3x BNC Coaxial MADI Output
Host Connection / USB	1x PCIe
USB (Non-Host)	No
Sync I/O	No
Network I/O	No
MIDI I/O	No
Expansion Slots	No
Performance
Impedance	Coaxial MADI : 75 Ohms
Digital Audio
Sample Rates	48 kHz
Sample Rate Conversion	No
Bit Depths	24-Bit
Sync Sources	MADI
Compatibility
OS Compatibility	macOS 10.15 or Later Windows 10 (64-Bit Only)
Mobile Device Compatibility	No
Required Hardware	PCIe Card Slot
Power
Power Requirements	PCIe
Power Consumption	4 W
Physical
Operating Humidity	0 to 90%
Operating Temperature	32 to 104°F / 0 to 40°C
Storage Temperature	-4 to 140°F / -20 to 60°C
Dimensions	3.07" / 7.8 cm (Half-Size PCIe Card)
Weight	4.9 oz / 139.0 g
Packaging Info
Package Weight	0.525 lb
Box Dimensions (LxWxH)	5.5 x 5.4 x 1.2"
