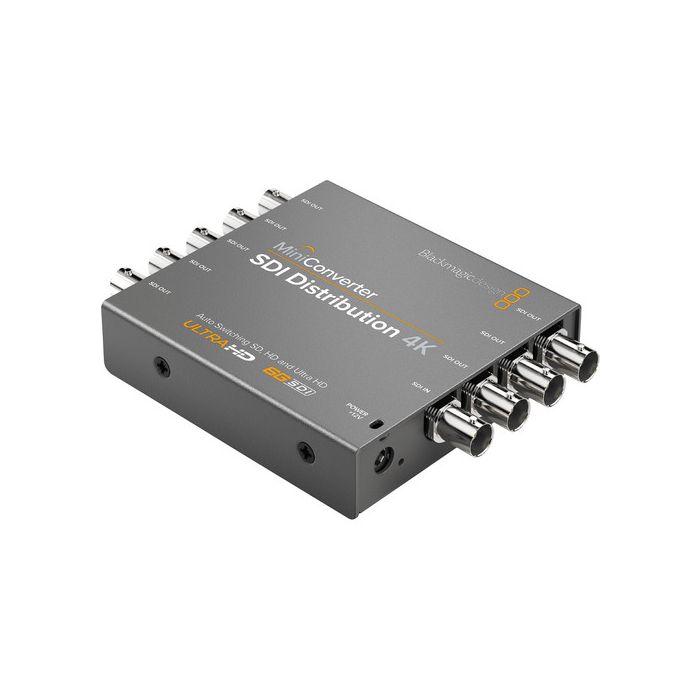

Blackmagic Design Mini Converter - SDI Distribution 4K

Raspoloživost: Isporuka 7-10 dana
SKU
CONVMSDIDA4K

Mini Converter SDI Distribution 4K from Blackmagic Design allows you to distribute a Single Link SD/HD/3G/6G-SDI signal to eight SDI devices simultaneously.

Normalna cijena 2.825,00 kn Posebna cijena 2.542,50 kn 2.034,00 kn

Sadržaj pakiranja

  • Blackmagic Design Mini Converter SDI Distribution 4K
  • Software CD-ROM
  • 12V Power Supply with International Socket Adapters

The Mini Converter SDI Distribution 4K from Blackmagic Design allows you to distribute a Single Link SD/HD/3G/6G-SDI signal to eight SDI devices simultaneously. It automatically detects the input signal type, re-clocks it, and its eight outputs automatically match the SDI input video format. With a compact form factor and easy-to-use controls, the Mini Converter is ideal for a variety of broadcast, post production, and professional AV applications.

Using 6G-SDI technology, the Mini Converter supports resolutions up to Ultra HD 4K (3840 x 2160) at up to 30 fps and DCI 4K (4096 x 2160) at 24 fps, as well as SD, HD, and 3G-SDI signals. It supports all SDI-related transmission features, including embedded audio, ancillary data, and even handles ASI signals - asynchronous signals that carry multiple compressed programs that can be at varying transmission speeds. The Mini Converter's settings are controlled using the built-in DIP switches or via USB using the included software for Max OS X or Windows computers. The USB port also enables the firmware to be updated. For powering the device, a 12V power supply is included with international socket adapters.

Additional Features

  • 4:2:2 and 4:4:4 sampling and color precision
  • 24-bit, 48 kHz audio sampling
  • Compliant with SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, and SMPTE 425M standards
Video Input 1 x 6G-SDI
Video Output 8 x 6G-SDI
Multi-Rate Support Auto detection of SD, HD, or 6G SDI signals
Reclocking Yes
Format Support SD:
NTSC 525/29.97 and 525/23.98
PAL 625/25

HD:
720p 59.94/60
1080i 50/59.94/60
1080PsF 23.98/24/25/29.97/30
1080p 23.98/24/25/29.97/30/50/59.94/60

2K:
2048x1080PsF 23.98/24/25
2048/1080p 23.98/24/25

UHD/4K
3840x2160p 23.98/24/25/29.97/30
4096x2160p 24
SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, and SMPTE 425M
SDI Video Rates Switchable between SD, HD, and 6G SDI
SDI Video Sampling 4:2:2 and 4:4:4
SDI Audio Sampling 24-bit, 48 kHz
SDI Color Precision 4:2:2 and 4:4:4
SDI Color Space YUV and RGB
SDI Auto Switching Automatically detects SD, HD, or 6G-SDI
ASI Support Yes
Settings Control DIP switches or USB software for Mac PS X and Windows
Firmware Upgradeable Via USB 2.0
Power Supply 12 VDC
Power Consumption 4.8 W
Operational Voltage Range 12 to 30 VDC
Operating Temperature 32 to 104° F (0 to 40 ° C)
Storage Temperature -4 to 113° F (-20 to 45 ° C)
Relative Humidity 0 to 90% non-condensing
Dimensions 4.80 x 3.63 x 0.90" (12.19 x 9.22 x 2.29 cm)
Weight 11.88 oz (336.79 g)
