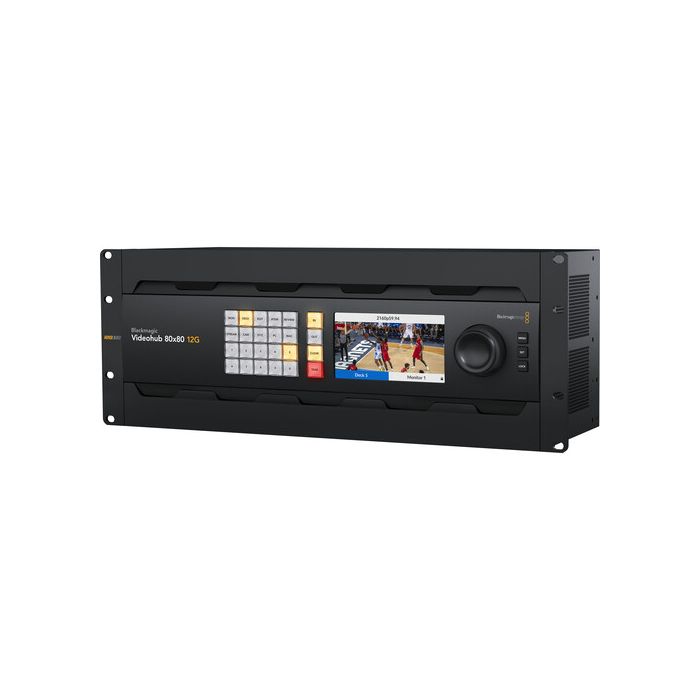

Blackmagic Design Videohub 80x80 12G
by Blackmagic Design- Zero-Latency Routing Switcher
- 80 x 12G-SDI Inputs/80 x 12G-SDI Outputs
- Supports up to DCI 4K60 Video
- Combines SD, HD, UHD 4K & DCI 4K Video
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
- Blackmagic Design Videohub 80x80 12G Zero-Latency Video Router
- Router Control Software
- Internal Software Updater Application
Support a mix of multiple video formats using the Videohub 80x80 12G Zero-Latency Video Router from Blackmagic Design. This advanced router provides 80 x 12G-SDI inputs and 80 x 12G-SDI outputs for routing any combination of SD, HD, UHD 4K, and DCI 4K video. The Videohub 80x80 12G centralizes all your SDI cables in one hub, enabling you to connect any video input to any video output, or even a single video input to multiple video outputs while eliminating clusters of cables and the need for complex diagrams. This versatile unit can be used with multiple HyperDeck recorders for redundant mastering to route video to multiple streaming processors for all your broadcast platforms, or to add extra inputs to an ATEM switcher.
12G-SDI Multi-Rate Connections
- Multi-rate 12G-SDI connections enable you to route up to 80 different video standards at the same time.
- Supports up to DCI 4K60 video resolutions.
- Provides 4:2:2 8 or 10-bit color routing in any standard.
- Works with 4:4:4 12-bit SDI up to DCI 4K30 for feature films.
SDI Reclocking
- Reclocking on every 12G-SDI input regenerates the signal, providing the maximum video quality.
- Reduces or eliminates signal loss and jitter when using longer cables.
Front-Panel Controls
- A sleek front panel offers multiple control options.
- Buttons include assignable shortcuts and In, Out, Clear, and Take buttons.
- The machined metal spin knob provides precise control using an electronic clutch.
Optional Hardware Control Panels
- Can be used with optional hardware panels for easier control when components are spaced out in large facilities.
- Compatible with both the Videohub Master Control Pro and the Videohub Smart Control Pro.
Flexible Control
The Mac and Windows-compatible Videohub Software Control provides easy-to-use touchscreen router control.
Built-In LCD
- View your live input before routing the signal on the built-in 5" LCD screen.
- Bottom labels enable you to scroll through your sources in alphabetical order.
- Eliminates the need to add an external SDI monitor to your setup.
Setup Utility and SDK
Use the Videohub Setup software to get started or the SDK to add protocol support for broadcast automation systems.
Multiple Language Support
Customized support is available in:
- English, Chinese, Japanese, Korean
- Spanish, German, French, Russian
- Italian, Portuguese, Turkish, Polish, Ukrainian
Processing | |
Switching Type | Pushbutton, Software |
Processing Resolution | DCI 4K at 60 |
Color Processing | 8-Bit 4:2:2 |
10-Bit 4:2:2 | |
12-Bit 4:4:4 | |
Audio Processing | 48 kHz / 24-Bit |
Input | |
Video Inputs | 80 x BNC (12G-SDI) |
Input Video Format | SDI (10/12-Bit 4:4:4 RGB, YUV) |
DCI 4K up to 30 fps | |
UHD 4K up to 30 fps | |
DCI 2K up to 60 fps | |
DCI 2KPsF up to 30 fps | |
1080p up to 60 fps | |
1080PsF up to 30 fps | |
1080i up to 60 fps | |
SDI (10-Bit 4:2:2 RGB, YUV) | |
DCI 4K up to 60 fps | |
UHD 4K up to 60 fps | |
DCI 2K up to 60 fps | |
DCI 2KPsF up to 30 fps | |
1080p up to 60 fps | |
1080PsF up to 30 fps | |
1080i up to 60 fps | |
720p at 50/59.94/60 fps | |
576i / 625 lines at 50 fps | |
480i / 525 lines at 59.94 fps | |
Embedded Audio Input | SDI |
Output | |
Video Outputs | 80 x BNC (12G-SDI) |
Output Video Format | SDI (10/12-Bit 4:4:4 RGB, YUV) |
DCI 4K up to 30 fps | |
UHD 4K up to 30 fps | |
DCI 2K up to 60 fps | |
DCI 2KPsF up to 30 fps | |
1080p up to 60 fps | |
1080PsF up to 30 fps | |
1080i up to 60 fps | |
SDI (10-Bit 4:2:2 RGB, YUV) | |
DCI 4K up to 60 fps | |
UHD 4K up to 60 fps | |
DCI 2K up to 60 fps | |
DCI 2KPsF up to 30 fps | |
1080p up to 60 fps | |
1080PsF up to 30 fps | |
1080i up to 60 fps | |
720p at 50/59.94/60 fps | |
576i / 625 lines at 50 fps | |
480i / 525 lines at 59.94 fps | |
Embedded Audio Output | SDI |
Connectivity | |
Other I/O | 1 x RJ45 LAN |
1 x USB-C | |
1 x BNC Reference Input | |
1 x BNC Reference Output | |
Video Standard Compliance | SMPTE 259M/292M/296M/372M/424M/425M-A/425M-B/ST-2081-1/ST-2081-10/ST-2082-10 |
ITU -R BT.601/BT.656 | |
Display | |
Display Size | 5" |
Hardware | |
OS Compatibility | macOS 12.0 |
macOS 13.0 or Later | |
Windows 10 (64-Bit Only) | |
Windows 11 | |
*As of September, 2023: Check with manufacturer for the most up-to-date compatibility | |
Wi-Fi | None |
Bluetooth | None |
Power | |
Power I/O | 2 x IEC C14 (100 to 240 VAC) Input |
Power Consumption | 92 W |
Environmental | |
Operating Temperature | 32 to 104°F / 0 to 40°C |
Storage Temperature | -4 to 140°F / -20 to 60°C |
Operating Humidity | 0 to 90% (Non-Condensing) |
General | |
Rack Form Factor | 4 RU |
Dimensions | 19 x 9.37 x 6.96" / 48.3 x 23.8 x 17.68 cm |
Weight | 24 lb / 10.9 kg |
