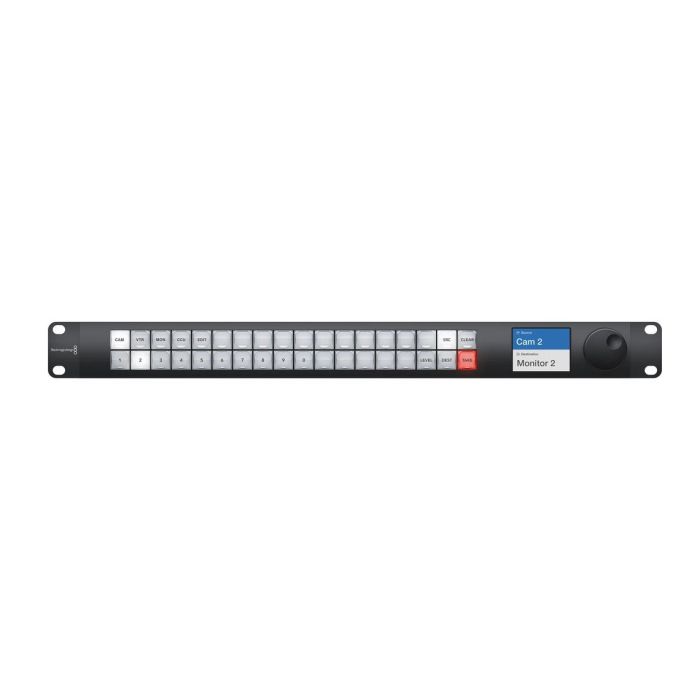

Blackmagic Design Videohub Master Control Pro
by Blackmagic DesignRouting Switcher
21 Programmable Buttons
LCD Information Screen
1 RU Rackmount Size
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
- Blackmagic Design Videohub Master Control Pro
The Videohub Master Control Pro from Blackmagic Design is a network switching router with 21 programmable buttons for routing sources and destinations over a network. Housed in a 1 RU frame, the Master Videohub is suitable for use in both large broadcast systems or portable racks for routing live productions over Ethernet.
Simple push buttons on the front of the unit are configured to control source and destination as well as a scroll wheel and several configuration buttons. The buttons can be programmed via USB using the included software for Mac OS X and Windows. The unit also features power fail protection to preserve your button configurations when power is lost.
The rear of the unit features an RJ45 Ethernet input with PoE to connect your sources and power the unit, or it can be powered with a separately available C13 power cable. There is also an Ethernet loop output without PoE to communicate with your destinations. Two RS-422 input and output ports for future implementation are also on the back as well as a USB Type-C port for software configuration and firmware upgrades.
21 programmable buttons
Push buttons and a scroll wheel on front panel
Mac and Windows software included for button configuration
Ethernet source and destination control
USB Type-C software configuration port
Power fail protection to preserve button configurations
Power via PoE or separately available power cable
1 RU chassis
| Input | 21 x Programmable Buttons 1 x Scroll Wheel 1 x RJ45 Ethernet with PoE 1 x RS-422 1 x USB Type-C |
| Output | 1 x RJ45 Ethernet 1 x RS-422 |
| Configuration | USB 2.0 Type-C |
| Operating System Support | macOS 10.13, 10.14 or Later Windows 10 |
| Display | LCD |
| Power Supply | PoE C13 |
| AC Voltage | 100 to 240 VAC |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 113°F / -20 to 45°C |
| Relative Humidity | 0 to 90% Non-Condensing |
| Rack Space | 1 RU |
| Dimensions (W x H x D) | 19 x 1.7 x 4.6" / 48.3 x 4.3 x 11.7 cm |
| Weight | 2.2 lb / 1 kg |
