Desview P5 II 5.5inch On-Camera Monitor

by Desview

Dostupnost: Isporuka 7-10 dana

SKU

DES-P5II

5.5" 1920 x 1080 Display, Button Control
800 cd/m² Brightness, 1000:1 Contrast

119,00 € 95,20 €

Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sadržaj pakiranja

Desview P5II 5.5" HDMI On-Camera Monitor
Sunshade
L-Bracket Support
Micro-HDMI Cable
Mini-HDMI Cable
USB-A Stick
Microfiber Cloth

Opis

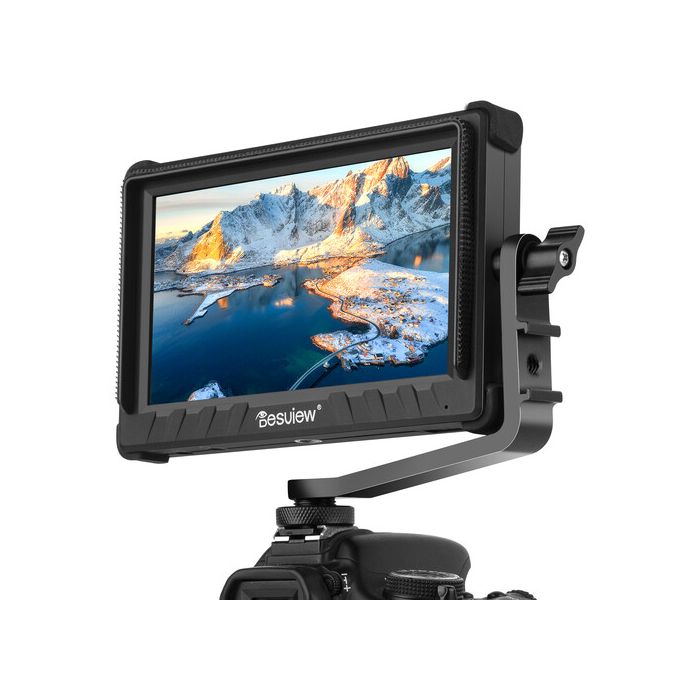

The P5II 5.5" HDMI On-Camera Monitor from Desview is a lightweight and portable on-camera monitor featuring a bright 800 cd/m² display with a 160° viewing angle and a screen resolution of 1920 x 1080. The R5II provides button controls, supports HDR, and has an HDMI input that handles up to DCI 4K24 video and an HDMI loop out. It also offers a 3.5mm headphone jack and a USB input for loading up to 64 custom 3D LUTs using the supplied USB thumb drive. Multiple ratio anamorphic options include 1.33, 1.5, 1.66, 1.79, and 2.0x de-squeeze functions. The P5II monitor can be powered using a single Sony NP-F type battery or the DC barrel input and offers a DC barrel output.

Lightweight Design

Lightweight 5.5" on-camera monitor with 800 cd/m² brightness.
HDMI supports video input up to DCI/UHD 4K30.
Anamorphic de-squeeze: 1.33, 1.5, 1.66, 1.79, and 2.0x.

Button Controls

The 5.5" panel features button controls and 1920 x 1080 resolution.
Selectable aspect ratios include 16:9, 16:10, and 4:3.

1/4"-20 Mounting

Mount using the 1/4"-20 mounting threads on the side and bottom of the monitor.
Includes a cold shoe mount swivel arm.

Power Options

Power the PS5II monitor using the integrated plate and a separately available Sony L-Series type battery.
Use the 5.5/2.1mm DC barrel input port and a separately available power adapter.

Specifikacije

Display
Panel Type	LCD
Display Size	5.5" / 14.0 cm
Native Resolution	1920 x 1080
Aspect Ratio	16:09
Viewing Angle	Horizontal: 160°
	Vertical: 160°
Touchscreen	No
Maximum Brightness	800 nits / cd/m2
Contrast Ratio	1000:01:00
HDR Support	Yes
Pixels Per Inch (ppi)	401 ppi
Real-Time LUT Monitoring	SDR, HDR
Image Controls	Anamorphic De-Squeeze, Blue Only, Customizable Aspect Ratios, False Color, Focus Peaking, Green Only, Histogram, Marker Color, Red Only, Screen Markers, Waveform, Zebra
Inputs / Outputs
Video I/O	1x HDMI 1.4 Input
	1x HDMI 1.4 Output
Embedded Audio	HDMI
Audio I/O	1x 1/8" / 3.5 mm Headphone Output
Built-In Speaker	No
Power I/O	1x Barrel 5.5 mm (24 VDC) Input
	1x Barrel 5.5 mm (8 VDC) Output
Other I/O	1x USB-A Input
Media/Memory Card Slot	No
Wi-Fi	No
Bluetooth	No
Mobile App Compatible	No
Format Support
Video Format	HDMI
	DCI 4K: 24
	UHD 4K: 30/25/24
	1080p: 60/59.94/50/30/29.97/25/24/23.98
	1080PsF: 30/29.97/25/24
	1080i: 60/59.94/50
	720p: 60/59.94/50
	576p: 50
	576i: 50
	480p: 60/59.94
	480i: 60/59.94
Power
Input Power	7 to 24 VDC
Battery Type	1x L-Series (Interchangeable Mount)
Power Consumption	0.1 W (Idle)
Mounting
Mounting	2x 1/4"-20 Female
General
Material of Construction	Plastic
Dimensions	6 x 3.9 x 1.1" / 152.3 x 98.4 x 28.6 mm
Weight	6.0 oz / 170 g
Packaging Info
Package Weight	1.235 lb
Box Dimensions (LxWxH)	7.3 x 4.8 x 3"
