Desview R5 II 5.5inch On-Camera Monitor

by Desview

Dostupnost: Isporuka 7-10 dana

SKU

DES-R5II

1920 x 1080 Screen Resolution
Bright 800 cd/m² Display

149,00 € 119,20 €

Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sadržaj pakiranja

Desview R5II 5.5" On-Camera Touch Monitor
Micro-HDMI Cable
Mini HDMI Cable
Snail Cold Shoe
USB Thumb Drive
Sun Hood
Sun Shield
Microfiber Cloth

Opis

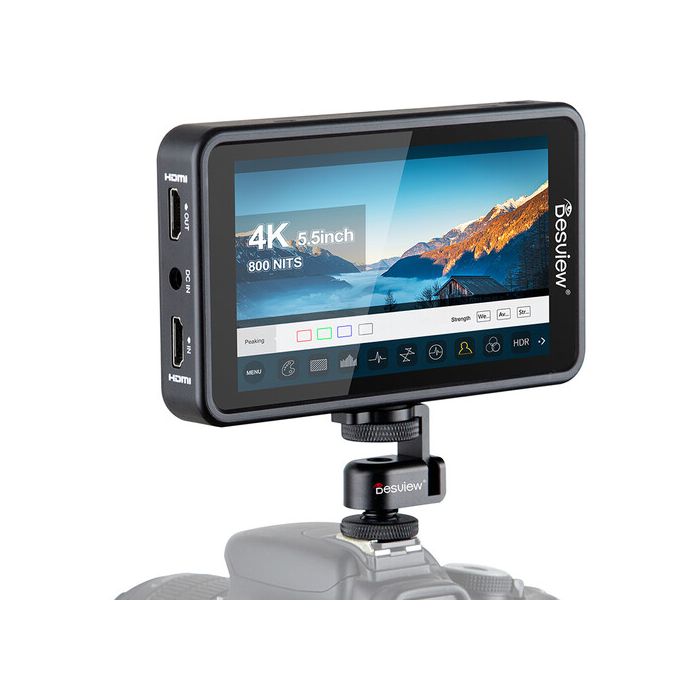

The R5II 5.5" On-Camera Touch Monitor from Desview is a lightweight and portable on-camera monitor boasting a bright 800 cd/m² display with a 178° viewing angle and a screen resolution of 1920 x 1080. Packed with useful tools and features, including touchscreen and pinch-to-zoom, the R5II has an HDMI input that handles up to DCI 4K24 and an HDMI loop out. It also offers a 3.5mm headphone jack and a USB input for loading custom 3D LUTs using the supplied USB thumb drive.

HDR support includes HGL and PQ modes, and multiple ratio anamorphic options include 1.33x, 1.5x, 1.66x, 1.79x, and 2.0x de-squeeze functions. A dual-purpose battery slot on the rear of the panel allows you to choose between using Sony NP-F style or Canon LP-E6 batteries.

Features at a Glance

Daylight-viewable, 5.5" touchscreen on-camera monitor with 800 cd/m² brightness.
Slim, lightweight design with touchscreen IPS LCD panel.
HDMI supports video input up to DCI/UHD 4K30.
Two 1/4"-20 mounting threads on the side and bottom of the monitor.

Touchscreen

The 5.5" touchscreen panel features 1920 x 1080 resolution and a 16:9 aspect ratio. Tapping the screen with one finger can control the whole monitor, and it supports gestures such as pinch-to-zoom, which helps check every corner and detail of the image.
The 800 cd/m² high brightness provides a clear display, even when filming in bright exteriors.

Specifikacije

Display
Panel Type	IPS-Type LCD
Display Size	5.5" / 14.0 cm
Screen Area	4.76 x 2.68" / 120.96 x 68.04 mm
Native Resolution	1920 x 1080
Aspect Ratio	16:09
Viewing Angle	178°
Touchscreen	Yes
Maximum Brightness	800 nits / cd/m2
Contrast Ratio	1000:01:00
Dot Pitch	0.021 x 0.063 mm
Color Support	16.7 Million Colors (8-Bit)
HDR Support	Yes, Hybrid Log Gamma
Pixels Per Inch (ppi)	401 ppi
Real-Time LUT Monitoring	SDR, HDR
Image Controls	Anamorphic De-Squeeze, False Color, Focus Peaking, H/V Delay, Histogram, Image Flip, Pixel-to-Pixel Zoom, RGB Parade, Screen Split - Half, Vectorscope, Waveform, Zebra
Inputs / Outputs
Video I/O	1x HDMI 1.4 Input
	1x HDMI 1.4 Loop Output
Audio I/O	1x 1/8" / 3.5 mm Headphone Output
Built-In Speaker	Mono
Power I/O	1x Barrel 2.1 mm (24 VDC) Input
	1x Barrel 2.1 mm (8 VDC) Output
Other I/O	1x USB-A 2.0 Input
Media/Memory Card Slot	No
Wi-Fi	No
Bluetooth	No
Format Support
Video Format	HDMI
	DCI 4K: 24
	UHD 4K: 30/25/24
	1080p: 60/59.94/50/30/29.97/25/24/23.98
	1080PsF: 30/29.97/25/24
	1080i: 60/59.94/50
	720p: 60/59.94/50
	576p: 50
	576i: 50
	480p: 60/59.94
	480i: 60/59.94
Power
Input Power	7 to 24 VDC
Battery Type	1x LP-E6, L-Series
Power Consumption	9 W (Maximum)
	0.1 W (Standby)
Mounting
Mounting	2x 1/4"-20 Female
Environmental
Operating Temperature	12 to 87°F / -20 to 55°C
Storage Temperature	-22 to 149°F / -30 to 65°C
General
Dimensions	6 x 3.5 x 0.9" / 151.4 x 89.1 x 22 mm
Weight	7.1 oz / 200 g
Packaging Info
Package Weight	1.285 lb
Box Dimensions (LxWxH)	7.6 x 4.7 x 3.4"
