DJI U10 UAV BasedLaser MethaneLeakage Detector

SKU
DJI-U10-1

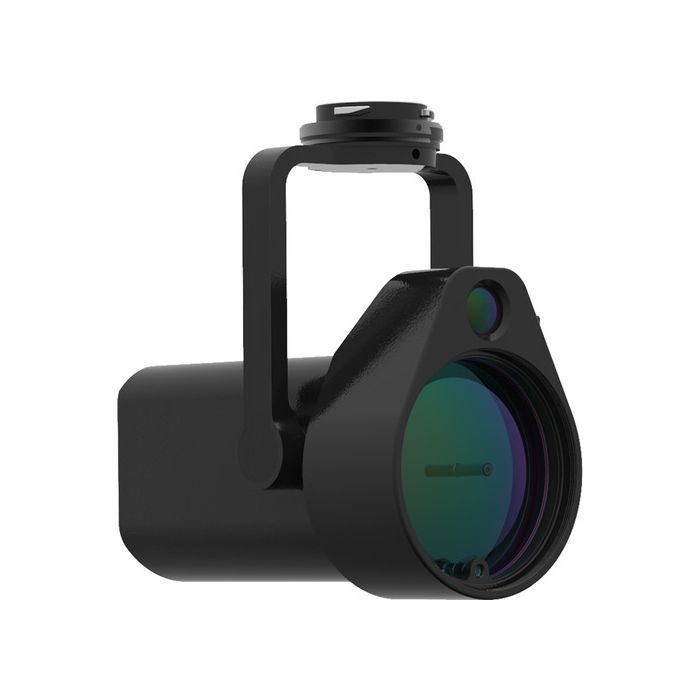

Detect methane gas (CH4) levels from Matrice 200 and 200 v2 series drones using this U10 UAV-Based Laser Methane Leakage Detector from DJI. The system is suitable for monitoring usage and leaks in natural gas plants, gas storage tanks, and gas pipelines in hard-to-reach areas such as mountains or bodies of water. The detector connects to the Skyport on a DJI Matrice 200 V1 or V2 series drone.

Sadržaj pakiranja

  • U10 METHANE LEAKAGE DETECTOR

Detect methane gas (CH4) levels from Matrice 200 and 200 v2 series drones using this U10 UAV-Based Laser Methane Leakage Detector from DJI. The system is suitable for monitoring usage and leaks in natural gas plants, gas storage tanks, and gas pipelines in hard-to-reach areas such as mountains or bodies of water. The detector connects to the Skyport on a DJI Matrice 200 V1 or V2 series drone.

The detector uses Tunable Diode Laser Absorption Spectroscopy (TLDAS) and has a 5 ppm.m stationary detection limit, a 500 kHz sampling frequency, measures up to 50,000 ppm.m, and can identify methane from up to 328' away with a 25 ms response time.

The visual system features a 720p camera with a wide 12mm lens that is controlled using the DJI Alpha ONE iOS app. You can set levels and alarms using the app which also reports gas concentration, a map with flight path data, inspection route recording, obstacle avoidance information, and report generation.

Key Features

  • Detect methane (CH4) from aerial drone
  • Up to 328' detection distance
  • 25 ms response time
  • 5 ppm.m stationary detection limit
  • Camera with 720p resolution
  • Connects to Skyport on DJI Matrice 200 Series V1 and V2 drones
  • Control with Alpha ONE iOS app
  • Applications
  • Natural gas plant, storage tank, gas pipeline monitoring
  • Monitor hard-to-reach mountain, valley, or river locations

Measurement Type: Methane (CH4)
Image Sensor: 1/2.8 CMOS
Focal Length: 12mm
Video Quality: 720p
Measurement Method: Tunable Diode Laser Absorption Spectroscopy (TDLAS)
Laser Type: Class IIIR
Detection Accuracy: 5 ppm.m Limit
Sampling Frequency: 500 kHz
Response Time: 25 ms
Measuring Range: 0 to 50,000 ppm.m
Maximum Distance: Detection Distance: 328' / 100 m
Working Temperature: -4 to 122°F / -20 to 50°C
Operating Humidity (Relative): < 90%
Dimensions: 6.1 x 3.5 x 3.9" / 15.5 x 9 x 10 cm
Weight: 18.8 oz / 534 g
