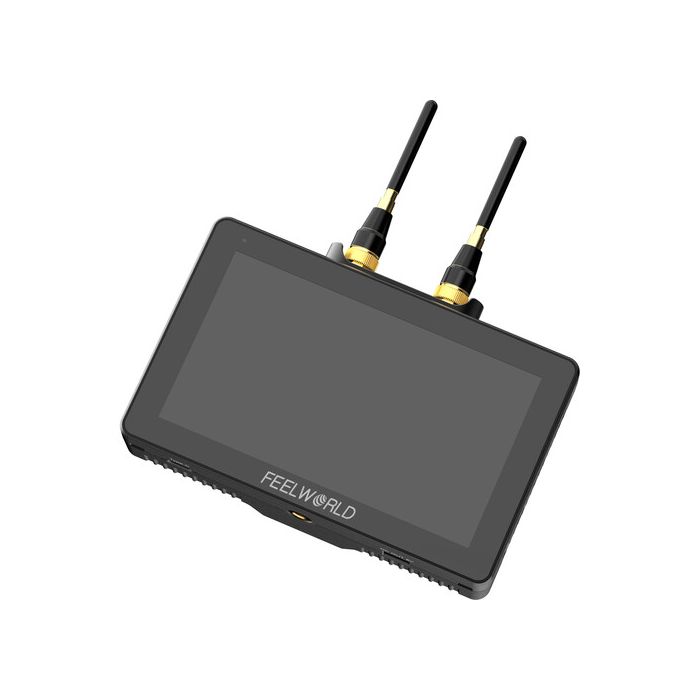

Feelworld FT6 Wireless System

by FeelWorld
Dostupnost: Isporuka 7-10 dana
SKU
FT6
  • 1920 x 1080 Display Resolution
  • Transmits up to 1080p Video
  • Supports up to DCI and UHD 4K Video
335,25 € 268,20 €

Sadržaj pakiranja

  • FeelWorld 5.5" On-Camera Monitor with Built-In Wireless Transmitter
  • Micro-HDMI Cable
  • Sunshade
  • 2 x Antenna
  • USB Type-C Cable

The FeelWorld 5.5" On-Camera Monitor with Built-In Wireless Transmitter features a touchscreen display with a 1920 x 1080 resolution and brightness of 500 cd/m². The monitor transmits up to a 1080p signal, which can be received by an optional FeelWorld FR6 wireless transmitter/monitor combo. It has an HDMI input port that supports signals up to DCI 4K24 and UHD 4K30, and an HDMI output for connecting to local monitors and other devices. The monitor comes with four built-in LUTs for monitoring HDR footage in Rec. 709, and you can upload up to 50 user LUTs to choose from for monitoring your image.

A large set of software features includes waveform, vectorscope, histogram, and anamorphic mode. These can be accessed via the menu wheel on top of the monitor. The menu system is simple, with touchscreen tabs on the sides and a clean look, and it provides a live view of most settings as you go through the tabs, including in the LUT tab where log profiles are selectable.

Multiple power options include a 12 VDC input, an 8 VDC output for connecting optional dummy battery cables, and a USB Type-C port that allows you to upload .cube format logs with an optional USB Type-A to Type-C adapter. Two L-series battery slots allow you to hot-swap batteries for uninterrupted runtimes. A single 1/4"-20 mounting thread is provided on the bottom for mounting. The monitor includes a removable sunshade to protect from glare and bright skies.

Key Features

  • Transmits 1080p video to an optional FR6 monitor
  • Touchscreen display with a 1920 x 1080 resolution
  • 500 cd/m² brightness
  • HDMI input signals up to DCI 4K24 and UHD 4K30

Software Features

  • Supports 3D LUT Log to Rec. 709, user 3D LUT upload
  • Supports up to 50 user-uploadable LUTs
  • HDR monitoring
  • Support touch menu
  • Parade (RGB, YUV, Y)
  • Vector
  • Brightness histogram
  • Peaking focus assist (red, green, blue, white, yellow, five peaking colors optional; 1~10 peaking level adjustable)
  • False colors
  • Exposure (1~100%, adjustable)
  • Check field (red, green, blue, gray)
  • Scan mode (underscan, overscan)
  • Anamorphic mode (1.25x, 1.33x, 1.5x, 2.0x, 2.0x mag)
  • Flip H / Flip V (all open, H/V flip)
  • Image freeze
  • Nine-grid
  • Center marker
  • Safety marker (70/80/90%, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1)
  • Marker Color (red, green, blue, white, black, yellow)
  • Ratio marker (16:9, 16:10, 4:3, 1.85:1, 2.35:1)
  • Color temperature adjustment
  • Zoom (100~300%)
  • Aspect ratio
  • Pixel-to-pixel

FeelWorld FT6 Specs

Display

Panel Type

LCD

Display Size

5.5" / 14.0 cm

Resolution

1920 x 1080

Aspect Ratio

16:9

Touchscreen

Yes

Image Controls

Anamorphic De-Squeeze, False Color, Focus Assist, Histogram, Image Flip, Pixel Zoom, Vectorscope, Waveform, Zebra

I/O

Antenna Ports

2 x RP-SMA

Video

1 x HDMI Type A (HDMI 1.4) Input
1 x HDMI Type A (HDMI 1.4) Output

HDCP Support

Not Specified by Manufacturer

Embedded Audio

HDMI

Audio

1 x 1/8" / 3.5 mm Headphone Output

Power I/O

1 x Barrel (12 VDC) Input
1 x Barrel (8 VDC) Output

Other I/O

1 x USB Type-C Input

Media/Memory Card Slot

Not Specified by Manufacturer

Wireless

Wireless Range

800' / 243.8 m (Line-of-Sight)

Frequency Range

US: 5.1 to 5.9 GHz

Latency

70 ms

Wi-Fi

None

Bluetooth

Not Specified by Manufacturer

Format Support

Video Format

HDMI
DCI 4K: 24
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p
576i
480p

Audio Format

PCM Audio

Wireless Video Compression

Compressed

Timecode Support

No

Power

DC Input Power

12 VDC

Battery Type

2 x L-Series

Power Consumption

18 W

Mounting

Mounting

1 x 1/4"-20 Female

Environmental

IP Rating

None

Operating Temperature

-4 to 131°F / -20 to 55°C

Storage Temperature

-22 to 149°F / -30 to 65°C

General

Dimensions

5.8 x 4.1 x 1.6" / 148 x 103.5 x 41 mm

Weight

13.1 oz / 370 g

Warranty Length

Limited 1-Year Warranty

Packaging Info

Package Weight

1.78 lb

Box Dimensions (LxWxH)

7.4 x 4.9 x 3.3"
