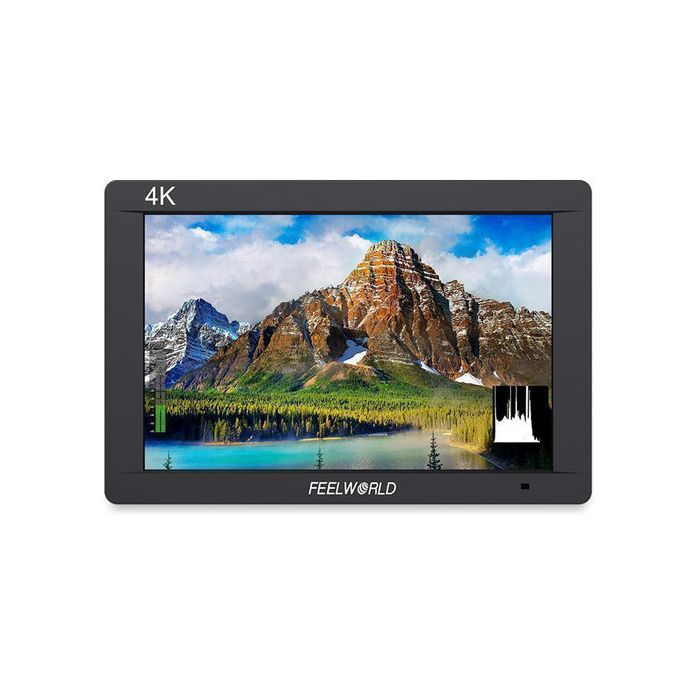

Feelworld FW703 SDI monitor

by FeelWorld
Dostupnost: Isporuka 14-20 dana
SKU
FW703
  • Full HD 1920 x 1200
  • IPS 160° Wide-Viewing Angle
  • 7M Precise Color
239,00 € 191,20 €

Sadržaj pakiranja

  • FeelWorld FW703 7" IPS 3G-SDI 4K HDMI On-Camera Monitor
  • HDMI to Mini HDMI Cable
  • Sunshade
  • Shoe Mount Adapter
  • L-Series Battery Plate

The FW703 3G-SDI 4K HDMI On-Camera Monitor from FeelWorld features a 7" Full HD screen with a resolution of 1920 x 1200 and up to 323 ppi density. This compact monitor includes 3G-SDI and 4K HDMI inputs and outputs. The IPS 160° wide-viewing angle allows the operator to have a clear, easy-to-see image as their position shifts, and features a brightness of 450 cd/m2 with a contrast ratio of 1200:1. The FW703 features professional color calibration, peaking, zoom, anamorphic mode, markers, and image flip. The monitor includes an HDMI to mini HDMI cable, sunshade, shoe mount adapter, and an L-series type battery plate. Software upgrade on this monitor is done via its USB port.

3G-SDI and 4K HDMI loop-through output

Full HD 1920 x 1200 resolution

160° wide-viewing angle IPS panel

Histogram

Peaking focus assist (red, green, blue)

False colors

Zebra exposure (1-100 IRE adjustable)

Nine-grid (4K input not supported)

Embedded audio meter

Camera mode

4x, 9x, 16x zoom (4K input not supported)

Anamorphic mode (1.3x, 2.0x, 2.0x mag)

Pixel-to-pixel (4K input not supported)

Center marker

Safe area (80%, 85%, 90%, 93%, 96%, 2.35:1)

Ratio marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)

Marker color (red, green, blue, white, black)

Check field (red, green, blue, mono)

Image flip (H, V, H/V)

Image freeze

Zoom-all (4K input not supported)

U/D and L/R zoom (4K input not supported)

Color temperature adjustment

FeelWorld FW703 Specs

Screen Size

7" IPS

Display Colors

16.7M (8-bit)

Resolution

1920 x 1200

Pixel Pitch

0.07875 mm (H) x 0.07875 mm (W)

Aspect Ratio

16:10

Brightness

450 cd/m2

Contrast Ratio

1200:1

Backlight

LED

Viewing Angle

80°/80° (L/R)
80°/80° (U/D)

Inputs

1 x 3G-SDI
1 x HDMI
1 x USB (for upgrade)

Outputs

1 x 3G-SDI
1 x HDMI

Audio Out

1 x Built-in speaker
1 x 3.5 mm stereo headphone jack

Power Connector

12 DC input

SDI Format Support

1080p 60/59.94/50/30/29.97/25/24/23.98
1080PsF 24/23.98
1080i 60/59.94/50
720p 60/59.94/50/30/29/25/24/23.98
576i
480i

HDMI Format Support

4096 x 2160p 24
3840 x 2160p 30/29.97/25/24/23.98
1080p 60/59.94/50/30/29.97/25/24/23.98
1080PsF 24/23.98
1080i 60/59.94/50
720p 60/59.94/50/30/29/25/24/23.98
576p/i
480p/i

Input Voltage

6.5 to 24 VDC

Power Consumption

≤9 W

Operating temperature

-4 to 131°F / -20 to 55°C

Storage Temperature

-22 to 149°F / -30 to 65°C

Mounting Thread

1/4"-20, on bottom

Battery Plate

F970, L-series type

Dimensions

7.1 x 4.7 x 0.9" / 18.0 x 12.0 x 2.2 cm

Weight

11 oz / 320 g
12 oz / 350 g (with F970 battery plate)

Packaging Info

Package Weight

1.85 lb

Box Dimensions (LxWxH)

8.8 x 6.2 x 2.9"
