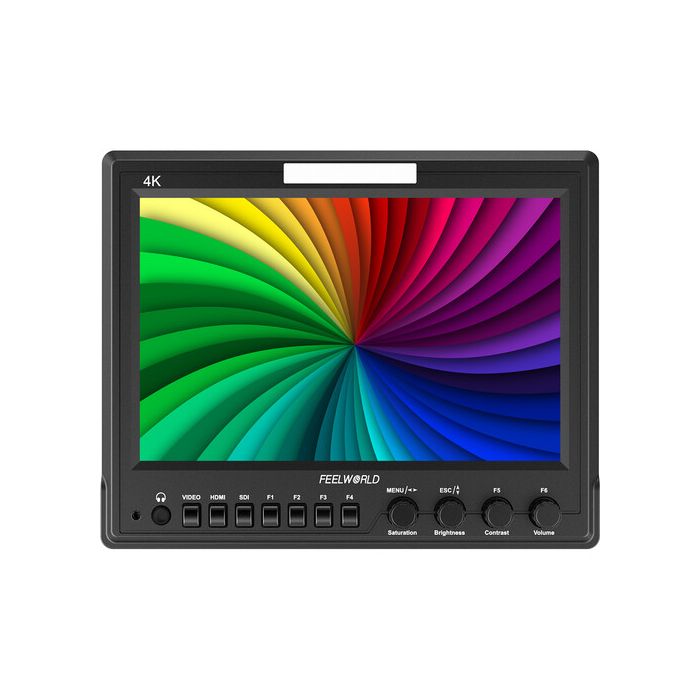

Feelworld Z73 SDI monitor

Monitor up to DCI 4K video with the Z73 7" HDMI/3G-SDI On-Camera Field Monitor from FeelWorld. The IPS LCD panel features a 1280 x 800 resolution, 16:10 aspect ratio, 800:1 contrast ratio, and a 400 cd/m² measured brightness for easy viewing outdoors as well as indoors. The display provides 178° off-axis viewing, allowing you to see the image clearly without being directly in front of the monitor. The monitor's durable aluminum chassis is thin and light, and it features an L-series battery plate to power the monitor.

On the back of the monitor are HDMI, 3G-SDI, and composite input and loop-through output connections, as well as a 2RCA stereo input. A variety of image evaluation tools are built into the monitor, including a histogram, false color, and zebra for checking exposure, peaking and magnification for checking focus, and markers for ensuring correct framing. A 9-pin tally input is also on the back, and a tally kit with a terminal block adapter is included. All the controls are on convenient buttons and dials on the front of the monitor.

There are 1/4"-20 threaded mounting threads on the bottom and sides, and a U-shaped bracket is included to use the monitor on a desktop surface. Also included is a tilting ball head shoe mount for mounting the monitor on your camera. The monitor can be powered by either a 24V 4-pin XLR input or using a 12 VDC barrel input. Also included with the monitor is a sun hood for protection from glare and a mini-HDMI cable.

Key Features

• High-resolution 1280 x 800
• Monitor up to DCI 4K input
• High-contrast of 800:1
• Ultra-bright 400 cd/m²
• 178° wide-view-angle IPS Panel
• Vectorscope
• Waveform
• Histogram
• Peaking focus assist (red highlight over parts of the image in focus)
• False color
• Zebra exposure
• Nine-grid
• Scan mode (underscan, overscan)
• Zoom (4x, 9x, 16x)
• Anamorphic mode (1.3x, 2.0x, 2.0x mag)
• Pixel-to-pixel
• Center marker
• Safe area (80%, 85%, 90%, 93%, 96%, 2.35:1)
• Ratio marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)
• Marker color (red, green, blue, white, black)
• Check field (red, green, blue, mono)
• Image flip (H, V, H/V)
• Image freeze
• Zoom all
• U/D and L/R zoom
• Color temperature adjustment
• Tally indicators (red, green, yellow)
