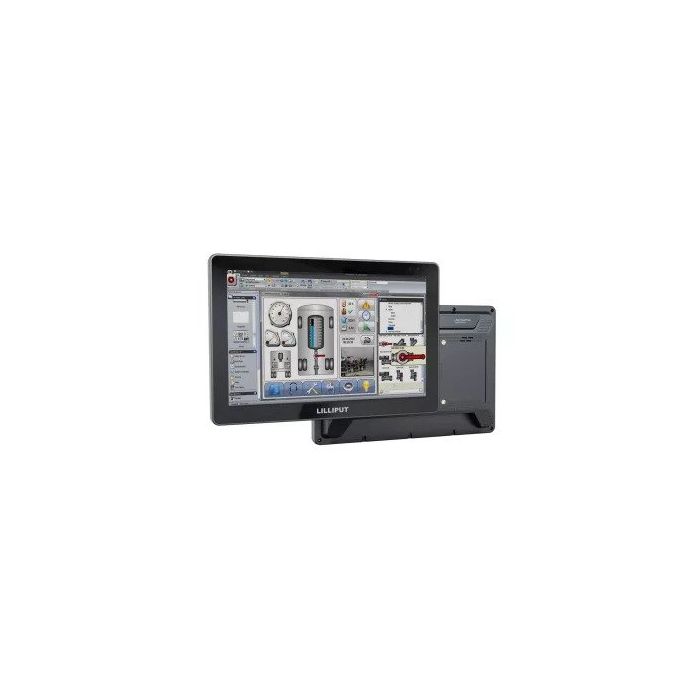

Lilliput FA1019/T 10.1" IP65 Monitor

by Lilliput
Dostupnost: Isporuka 7-10 dana
SKU
LIL-FA1019/T-IP65

The Lilliput FA1019/T with a 1500 nits high brightness screen, it comes with 10.1″ 1920×1200 resolution and capacitive touch function.

400,00 € 320,00 €

Sadržaj pakiranja

  • 12V 3A Power Adapter
  • HDMI A-A Cable
  • USB-C - C Cable (With Screw)
  • USB-A - C Cable (For Touch)
  • 12V 3A Power Adapter
  • HDMI A-A Cable (HDMI Ver.)
  • VGA Cable (VGA Ver.)
  • USB-A - A Cable (For Touch)

Lilliput FA1019/T

10.1 inch 1500nits High Brightness Industrial-Grade Touch Monitor

HDMI / VGA IUSB-C RICH INTERFACES

The monitor has a larger number of interfaces, including a USB Type-C type interface that can transmit both video signals and touch functions, making wiring easier.

IP65 FRAME WITH HDMI AND VGA EXTENSION CABLE

Rugged extension cable designed for body waterproofing & dustproofing, with two different options for HDMI and VGA ports.

Monitor is designed to carry IP65 degree of protection which offer complete protection against particles, and a good level of protection against water projected by a nozzle against monitorr from any direction.

DATA SHEET
Touch Screen Capacitive touch
Display Size 10.1” LCD
Resolution 1920*1200
Brightness 1500cd/m²
LED Panel Life Time 50000h
Aspect Ratio 16:10
Contrast 1000:01:00
Viewing Angle 170°/170°(H/V)
Video Input HDMI 1
Video Input VGA 1
Video Input USB Type-C 1
Supported In / Out Formats HDMI 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60…
Supported In / Out Formats VGA 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60…
Audio In/Out HDMI 8ch 24-bit
Audio In/Out Ear Jack 3.5mm – 2ch 48kHz 24-bit
Audio In/Out Built-In Speakers 1
Operating Power ≤19W (12V)
DC In DC 12-24V
HDMI Extension Cable HDMI, USB-A (For touch)
VGA Extension Cable VGA, USB-A (For touch)
Operating Temperature -20℃~60℃
Storage Temperature -30℃~85℃
Dimension(LWD) 251mm × 170mm × 33mm
Weight 0.820kg
SPECIFIC REFERENCES
Mpn FA1019/T
