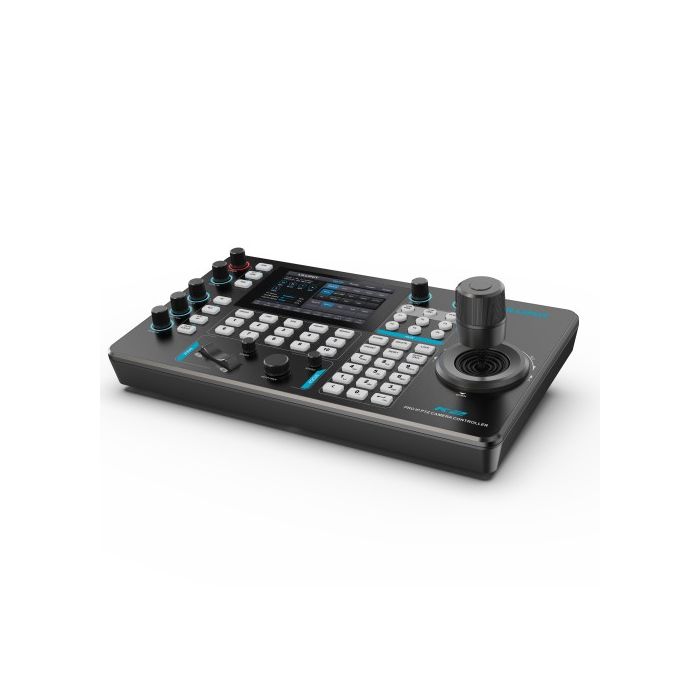

Lilliput K2-N Controller with NDI

by Lilliput

Dostupnost: Dostupno

SKU

LIL-K2-N

The Lilliput K2 Touchscreen PTZ Camera Controller is the late 2024 revision of Lilliput's multi-featured PTZ Controller line, Designed to work with a host of control schemas and protocols, the new controls and features which the K2 system sports are numerous.

Ograničena količina! Na rasprodaji do 31. 07. 2025. ili do isteka zaliha!

Regularna cijena 748,75 € * Najniža cijena u zadnjih 30 dana Akcijska cijena 599,00 € 479,20 €

Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.

-20%

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sadržaj pakiranja

Lilliput K2-N Controller with NDI

Opis

5-inch touch screen controls, and a 4D joystick make the K2 easy to operate
Supports real-time preview camera in 5″ screen
Supports Visca, Visca Over IP, Pelco P&D and Onvif protocols
Control the system via IP, RS-422, RS-485 and RS-232 interface
Automatically assigns IP addresses to devices for quick setup
Manage up to 100x independent IP cameras on a single network
6 user-assignable buttons for quick access to functions
Quickly control exposure, iris, focus, pan, tilt and other functions
Can support PoE (Power over Ethernet) and 12V DC Power Supply inputs

Specifikacije

MODEL NO.	K2-N
CONNECTIONS
Interfaces	IP(RJ45)×1, RS-232×1, RS-485/RS-422×4, TALLY×1, USB-C (For upgrade)
Control Protocol	ONVIF, VISCA- IP, NDI
Serial Protocol	PELCO-D, PELCO-P, VISCA
Serial Baud Rate	2400, 4800, 9600, 19200, 38400, 115200 bps
LAN port standard	100M×1 (PoE/PoE+: IEEE802.3 af/at)
USER
Display	5 Inch Touch Screen
Knob	Quickly control iris, shutter speed, gain, auto exposure, white balance, etc.
INTERFACES
Joystick	Pan/Tilt/Zoom
Camera Group	10 (Each group connect up to 10 cameras)
Camera Address	Up to 100
Camera Preset	Up to 255
POWER
Power	PoE+ / DC 7~24V
Power Consumption	PoE+: < 8W, DC: < 8W
ENVIRONMENT
Working Temperature	-20°C~60°C
Storage Temperature	-20°C~70°C
DIMENSION
Dimension(LWD)	340×195×49.5mm340×195×110.2mm (With joystick)
Weight	Net: 1730g, Gross:2360g
