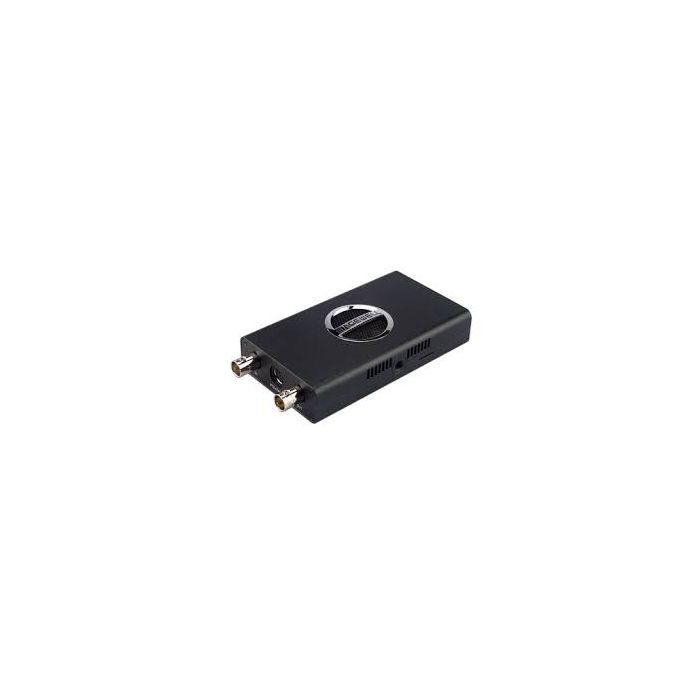

Magewell Pro Convert 12G 4K SDI Plus
by MagewellConverts one channel of 12G-SDI video up to 4Kp60 into Full NDI®
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
- Magewell Pro Convert 12G 4K SDI Plus
- USB 2.0 A to B cable
- 5V/2.1A power adaptor
- L-bracket
- Mini-DIN 8 breakout cable
- Tally light
Converts one channel of 12G-SDI video up to 4Kp60 into Full NDI®
Connects existing source equipment into NDI-enabled, IP-based media networks
Supports inputs up to 4K at 60fps with 16 channels of embedded audio
Plug-and-play ease of use with automatic input format detection and DHCP network configuration
Input Features
- Single-link 12G-SDI input and loop-through
- Support for up to 4096x2160 60fps input
- Support for up to 16 (mono) audio channels
NDI® Format
- Support for up to 4096x2160 60fps 4:2:2 8-bit NDI encoding
- Send NDI streams across network segments
- Remotely control PTZ cameras via NDI
- Support for NDI 4.x
Features & Advantages
- Very low latency
- Advanced configuration and device status through intuitive Web GUI
- Tally lights and camera mounting for live production applications
- HTTP-based APIs for custom integration
SDI Input
Max Video input:
- 4096x2160 60fps. Supported resolutions include:
- 4096x2160p, 3840x2160p, 2048x1080p, 2048x1080i, 1920x1080p, 1920x1080i all at 23.98/24/25/29.97/30/47.95/48/50/59.94/60fps
- 1280x720p at 50/59.94/60fps
- 720x576 at 25p/50i (PAL SD)
- 720x480 at 29.97p/59.94i (NTSC SD)
Support for RGB/RGBA/YUV/YUVA signals with 10/12-bit color depth
Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
Max Audio inputs: 16 embedded channels
NDI® Output:
Max output: 4096x2160 60fps 4:2:2 8-bit
Output frame rate same as the original, 1/2, 1/3 or 1/4 input frame rate
Output resolution at the resolution of input, typical formats or any custom resolution. Typical output:
- 4096x2160p, 3840x2160p, 2048x1080p, 2048x1080i, 1920x1080p, 1920x1080i all at 23.98/24/25/29.97/30/47.95/48/50/59.94/60fps
NDI® 4.1
SDI Processing Features
Input/loop-through interfaces: SD/HD/3G/6G/12G SDI
Support SD (ST 259)/HD (ST 292)/3Ga (ST 425)/3Gb (ST 425)/3Gb-DL (ST 425)/3Gb-DS (ST 425)/6G (ST 2081)/12G (ST 2082) SDI standards
Web GUI Management:
Provide comprehensive information regarding the device and input signals in real-time
Allow to configure how an input is processed and encoded, as well as the network connection.
Support USB RNDIS/ECM
Support IE/Edge/Firefox/Chrome/Safari/Opera web browser
Support with HTTP APIs
PTZ & Tally Control:
Control PTZ cameras that use VISCA UDP, VISCA, PELCO-D or PELCO-P protocols
Program and preview tally
A Mini-DIN 8 breakout cable is provided for PTZ control and tally connection
USB Interface:
USB2.0 Type B
5V/2.1A power supply
Supported Products:
NDI Studio Monitor
OBS
vMix
Any other NDI-enabled product
