Movmax N2 Air Arm Mini Kit

by MOVMAX
Dostupnost: Isporuka 7-10 dana
SKU
81-0052

Shock-Absorbing Arm, Car Mounting System
Vibration Isolator Damping Head

4.046,75 € 3.237,40 €

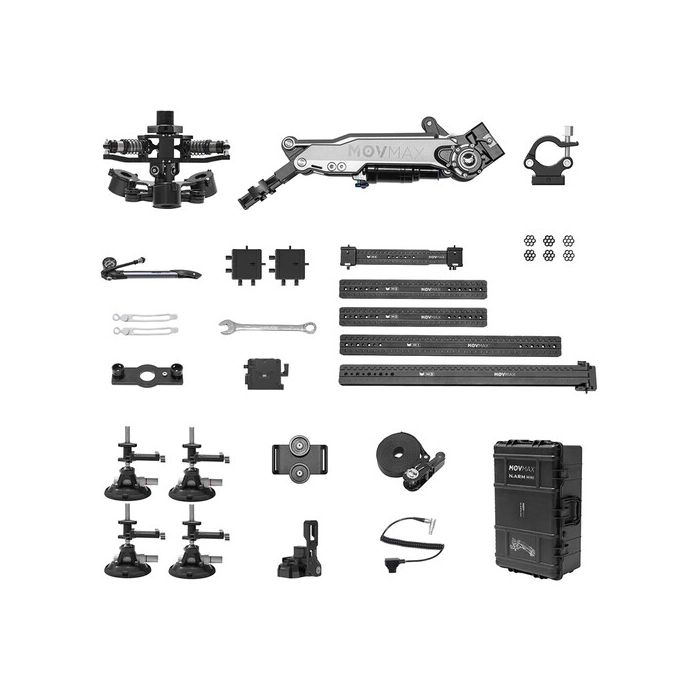

Sadržaj pakiranja

  • MOVMAX N2 Air Arm Mini Pro Kit (14.6 lb Payload)
  • N2 Arm Mini
  • Star Vibration Isolator (14.6 lb Payload)
  • Tube Locking Clamp
  • Inflator Pump
  • 2 x Double-Sided Sliding Dovetail Plate (Small)
  • Double-Sided Dovetail Plate (Set of 5 Lengths)
  • 6 x Silicone Rubber Pad
  • 2 x Cable Clamp
  • Wrench
  • Transmission Bracket
  • V-Lock Sliding Plate
  • 4 x Suction Cup
  • 4 x Suction Cup Sliding Plate
  • Safety Cable
  • Safety Cable Bracket
  • Tilta Power Supply Base Plate for Select DJI Gimbals
  • D-Tap to 2-Pin LEMO Power Cable
  • Flight Case

chieve smooth, dynamic moving visuals on a vehicle with safe mounting using this N2 Air Arm Mini Pro Kit from MOVMAX. The system is made up of a shock-absorbing arm with air damping, a star vibration isolator head with multiple rig-mounting options, four strong suction cups, a sliding vertical mounting system with sliding dovetail plates, and power accessories including a D-Tap splitter and the Tilta power supply base for the DJI RS 2. The N2 Air supports rigs weighing up to 14.6 lb , and it is compatible with gimbal rigs such as the DJI Ronin series and RS 2 gimbal. An unpowered V-lock plate is included, allowing you to power your gimbal using an optional V-mount battery from the included D-Tap splitter.

Install the N2 system onto your vehicle of choice via the four suction cups. Air shock absorption damping on the main arm and the star vibration isolator absorb low- to high-frequency vibrations and reduce stress on your gimbal rig. The sliding dovetail plate system installs onto the suction cups and allows you to hang and adjust your rig using a vertical sliding system with secure, quick release connections. Silicone blocks install between the isolator joints, adding even more damping to the system. An included flight case with a custom foam interior makes taking the N2 system on the go a breeze.

General
Compatibility
DJI Ronin Series
Physical
Mounting 4x Suction Cups

Multiple Sliding Dovetail Plates
Load Capacity
14.6 lb / 6.6 kg (Mounted with Suction Cups)
Color Black
Material of Construction
Aluminum, Silicone
Operating Conditions
-31 to 176°F / -35 to 80°C
Dimensions
29.5 x 18.9 x 11.6" / 750 x 480 x 295 mm (Flight Case Only)
Weight
19.2 lb / 8.7 kg (Flight Case)
Packaging Info
Package Weight 46 lb
Box Dimensions (LxWxH) 31 x 20 x 13"
