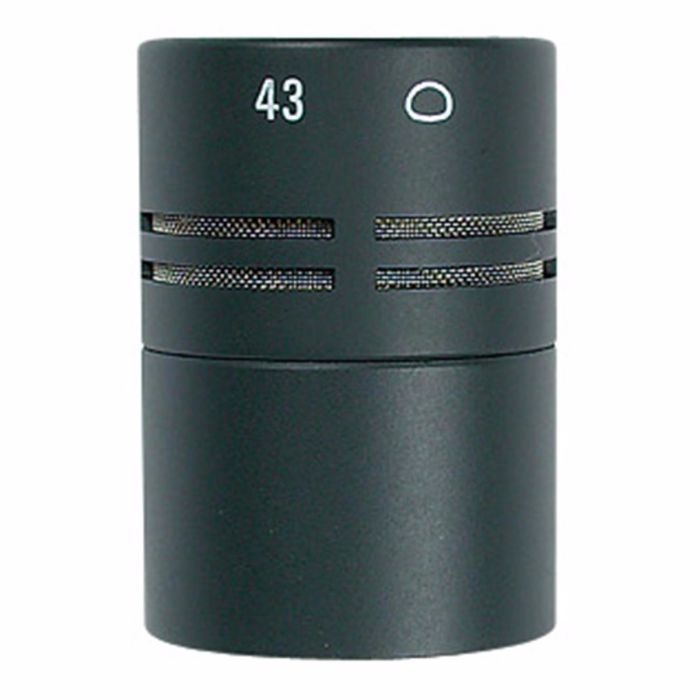

Neumann AK 43 - Wide-Angle Cardioid Miniature Capsule for KM 100 and KM 100F Power Supplies

856,25 € 685,00 €

Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sadržaj pakiranja

1 x Neumann AK 43

Opis

The Neumann AK 43 microphone capsule is part of the KM 100 miniature series microphone systems. The AK 43 element features a pressure gradient, single diaphragm transducer with a wide-angle cardioid polar pattern.

Attenuation at 90 degrees is 4dB, at 135 degrees it is 8dB and at 180 degrees it is 11dB. The wide-angled cardioid pattern offers a more generous pick up area then conventional cardioid microphones, making it suitable for ambiance recording, vocal recording, stereo miking as well as close miking of instruments.

Modular Design: The capsule is developed for use with the KM100 and KM100F modular power supplies.

Wide-Angled Cardioid: The pressure gradient element provides a wide-angled cardioid pattern. Attenuation at 90 degrees is 4dB, at 135 degrees it is 8dB and at 180 degrees it is 11dB.

Specifikacije

Transducer	Pressure Gradient Condenser
Polar Pattern	Wide-Angle Cardioid
Frequency Response	20 Hz - 20 kHz
Dynamic Range (Typical)	122 dB
Signal-to-Noise Ratio	69 dB Related at 1 Pa at 1 kHz (CCIR dB) 78 dB Related at 1 Pa at 1 kHz (A-Weighted dB)
Maximum Input Sound Level	138 dB Less than 0.5% THD (without Preattenuation) 148 dB Less than 0.5% THD (with Preattenuation)
Power Requirements	Phantom +48v (KM 100 Power Supply)
Output Impedance	50 Ohms
Output Connectors	XLR-3 Type (KM 100 Power Supply)
Pad	Yes, -10 dB Preattenuation
Low Frequency Roll-Off	Use KM 100F Power Supply
Dimensions (LxDiameter)	3.68 x 0.88" (92 x 22mm)
Weight	2.82 oz. (80 g)
