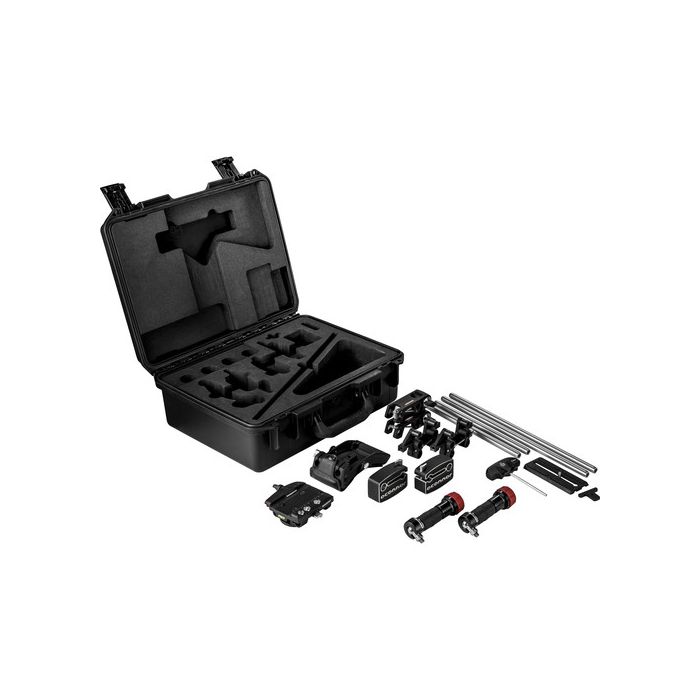

OConnor O-Rig Pro Kit
by OConnor- 15mm LWS Rod Support System
- For Virtually Any Camera and Lens Combo
- Universal Baseplate
- Height Adjustment Adapter
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
OConnor O-Rig Baseplate Set
O-Rig Body Mount
O-Rig Height Adapter
2 x 15mm Rods (18")
Limited 1-Year Warranty (Extendable to 2-Years with Product Registration)
OConnor O-Grips Single-Jointed Set
Limited 1-Year Warranty, Extendable to 2 Years with Registration
OConnor Offset Adapter for O-Rig
Limited 1-Year Warranty
2 x OConnor O-Rig Height Adapter
2 x OConnor Counterweight for O-Rig
Limited 1-Year Warranty
2 x OConnor 15mm Rods (12")
Limited 1-Year Warranty, Extendable to 2 Years with Product Registration
OConnor Pelican Storm Case for O-Rig
Limited 1-Year Warranty, Extendable to 2 Years with Registration
The O-Rig Pro Kit from OConnor is a complete 15mm LWS rod support system designed to work with nearly any camera and lens combination, from compact DSLRs to larger cinema cameras. It features a universal baseplate that enables quick and easy camera and lens changes. A height adapter lets you adjust your camera and lens to the appropriate height for use with follow focuses and matte boxes. Designed for convenient and comfortable operation, the O-Rig system allows users to quickly switch between shoulder-mounted and tripod-mounted shooting.
The O-Rig set features OConnor's O-Grips handgrip system and an adjustable offset adapter, allowing users to easily reposition camera viewfinders and providing comfort adjustments for shoulder-mounted shooting. A rod-mounted shoulder pad with hand-stitched leather construction is included, as well as two counterweights to help balance out your load and reduce strain on your arms. The O-Rig system comes packed in a durable Pelican Storm Case, fitted with custom-cut, high-density foam.
OConnor O-Rig Baseplate Set
The O-Rig Baseplate Set from OConnor is a 15mm LWS rod support system designed to work with nearly any camera and lens combination, from compact DSLRs to larger cinema cameras. It features a universal baseplate that enables quick and easy camera and lens changes. A height adapter lets you adjust your camera and lens to the appropriate height for use with follow focuses and matte boxes. Designed for convenient and comfortable operation, the O-Rig Baseplate set includes an O-Rig Body Mount, which is a rod-mounted shoulder pad with hand-stitched leather construction that lets users to quickly switch between shoulder-mounted and tripod-mounted shooting.
Key Features
- Universal baseplate works with virtually all camera and lens combinations
- Tool-less and intuitive lens / camera changes
- Height adapter that not only provides a solid anchor for the O-Grips, but used in conjunction with baseplate gives cover for all camera bodies, provides rotation of wide angle filters, and increases lens coverage of an optional O-Focus to cover 65 to 166mm lens diameters
- The baseplate allows simple docking of camera rig on a tripod and quick lens and camera body changes
- Shoulder pad with aluminum and leather finishing
- 2x 15mm rods (18")
OConnor O-Grips Single-Jointed Set
The OConnor O-Grips Single-Jointed Set is a single ball-jointed handgrip set consisting of a solid titanium core that provides durability and reliability. You can use the single-jointed handgrip set for payloads up to 44 lb.
Offering single-handed operation, even while shouldering large camera systems, the single-jointed handgrip provides locking and adjustment in a full hemisphere. With a 3/8"-16 male screw on the top, and a 3/8"-16 female receptacle at the bottom of every single module, you can combine the handgrip with other individual modules to realize different configurations. You can use the single-jointed handgrip with the 15mm and 19mm Studio and 15mm LWS (Lightweight Support) rod systems.
- Ball-jointed handgrip consists of a solid titanium core that provides durability and reliability
- Supports a maximum payload of up to 44 lb
- Provides single-handed operation, even while shouldering large camera systems
- Offers locking and adjustment in a full hemisphere
- A 3/8"-16 male screw on top of every module, and a 3/8"-16 female receptacle at the bottom, allow you to combine the handgrip with other individual modules to realize different configurations
- Compatible with the 15mm and 19mm Studio and 15mm LWS (Lightweight Support) rod systems
OConnor Offset Adapter for O-Rig
The OConnor Offset Adapter is part of the O-Rig Rod Support System. It allows for the shoulder pad to be moved off-axis from the rest of the rig, allowing the camera to be positioned directly in front of the operator. The Offset Adapter is articulated in two locations for maximizing comfort through adjusting the angle of the shoulder pad.
OConnor Counterweight for O-Rig
Attach this OConnor Counterweight to your 15mm LWS rig to achieve proper front-to-back weight balance. If you already own an O-Rig, an additional counterweight can help balance heavier camera loads.
OConnor 15mm Rods (12")
Mount accessories to your rig with this pair of 12" OConnor 15mm Rods. These rods will attach to rigs, rod clamps, baseplates, or cameras that support the 15mm LWS or 15mm studio standards, allowing the attachments of industry standard equipment including follow focuses, lens supports, lens control motors, and more.
OConnor Pelican Storm Case for O-Rig
The O-Rig Pelican Storm Case from OConnor is a durable protective case designed specifically for the OConnor O-Rig shoulder support. The case features a custom-cut, high-density foam interior which can safely store and protect the components of a disassembled O-Rig. The case's exterior is constructed of durable HPX resin which, when matched with the unique press-and-pull latches, makes the case damage-resistant and watertight. For added security, two padlock-compatible hasps are located on the sides of each latch, great for personal and TSA regulation locks.
Load Capacity: 45 lb (20.45 kg)
Camera Fixing: Standard wedge plate with 3/8"-16 and 1/4"-20 screws
Sliding Travel of Plate: 4.7" (12 cm)
Camera Support: Camera Body Size (Lens Center to Base of Camera): 1.26 to 4.21" (32 to 107 mm)
15mm Rods: 2 x 18" (45.7 cm)
Operating Temperature: -22 to 158°F (-30 to 70°C)
Weight: 2.77 lb (1.71 kg)
Packaging Info
Package Weight: 4.95 lb
Box Dimensions (LxWxH): 19.2 x 7.6 x 3.6"
OConnor O-Grips Single-Jointed Set
Load Capacity: 44 lb (20 kg)
Mount: Top: 3/8"-16 male
Bottom: 3/8"-16 female
Packaging Info
Package Weight: 2.7 lb
Box Dimensions (LxWxH): 9.8 x 9.1 x 2.9"
OConnor Offset Adapter For O-Rig
Rod Standard 15mm LWS
Packaging Info
Package Weight: 1.1 lb
Box Dimensions (LxWxH): 6.1 x 4.1 x 2.7"
OConnor O-Rig Height Adapter
Accessory Type: Mounting adapter
Intended For: Camera rig
Packaging Info
Package Weight: 0.45 lb
Box Dimensions (LxWxH): 6.3 x 3.1 x 1.7"
OConnor Counterweight For O-Rig
Rod System: 15 mm LWS
Packaging Info
Package Weight: 2.5 lb
Box Dimensions (LxWxH): 4.8 x 3.8 x 2.8"
OConnor 15mm Rods (12")
Length: 12" (30.5 cm)
Diameter: 15 mm
Packaging Info
Package Weight: 0.45 lb
Box Dimensions (LxWxH): 13.2 x 2.1 x 1"
OConnor Pelican Storm Case For O-Rig
Material of Construction HPX resin
Security Lock Slot: Yes, 2
Latches: Press-and-pull
Watertight: Yes
Weight: Not specified by manufacturer
Packaging Info
Package Weight: 9.7 lb
Box Dimensions (LxWxH): 19.7 x 15.5 x 7.8"
