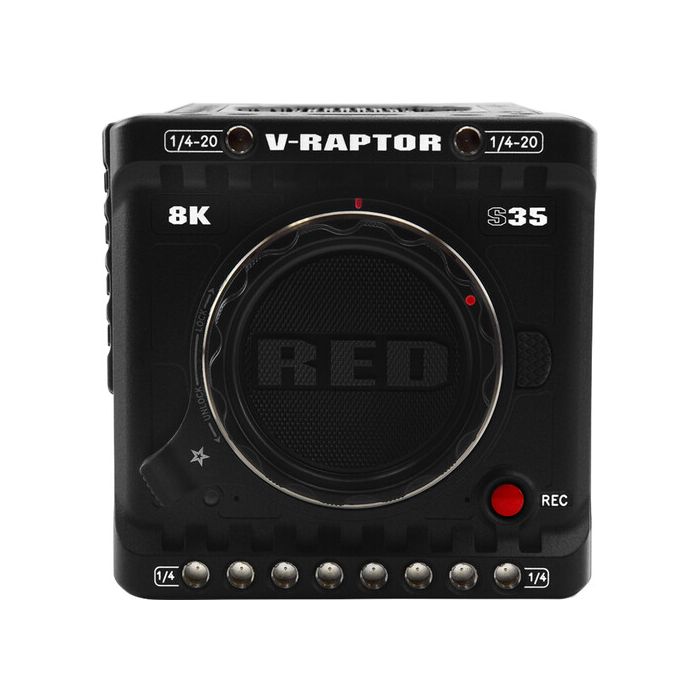

RED V-RAPTOR 8K S35
by RED35.4MP Super35 CMOS Sensor
Active RF Mount, Autofocus Select Lenses
Up to 8K120, 7K140 & 4K240 in 17:9 S35
16.5+ Stops of Dynamic Range
Lightweight & Compact DSMC3 Design
ProRes, REDCODE Raw HQ, MQ & LQ Options
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
- RED DIGITAL CINEMA V-RAPTOR 8K S35 Camera (Canon RF)
- DSMC AC Power Adapter (150W)
- Mini World Travel Adapter Kit
- RED Logo Sticker
Choose 8K Super35 capture for your productions with the black V-RAPTOR 8K S35 Camera, RED DIGITAL CINEMA's newest DSMC3 model that incorporates an 8K, 35.4MP S35 CMOS sensor. With 16.5+ stops of dynamic range, speedy cine-level scan time, and optimal low-light performance, the V-RAPTOR 8K S35 is ready to bring RED quality imaging to your Super35-format imaging. Its multi-format recording options include 8/7/6/5/4/3/2K, with REDCODE Raw, Apple ProRes, anamorphic, and proxy selections.
The V-RAPTOR 8K S35's active RF lens mount enables you to adapt your capture for each project using a wide array of pro cine or still photo lenses and can be used with an EF lens adapter. Phase-detect and contrast autofocus is available when used with compatible lenses. This combination of Super35 capture, lens versatility, autofocus (for select lenses), and the compact DSMC3 form enables the V-RAPTOR 8K S35 to fit seamlessly into your wildlife and broadcast projects or other shoots involving lots of handheld work and company moves to multiple locations.
Super35 Sensor and 8K Capture Options
35.4MP CMOS S35 Sensor
The V-RAPTOR 8K S35's Super35mm 35.4 MP CMOS sensor provides a practical alternative to full-frame capture that is particularly suitable for in-the-field productions while still offering the high resolution and shallow depth of field beloved by cine-style shooters.
16.5+ stops of dynamic range give the V-RAPTOR 8K S35 the ability to capture stunning images in any environment you explore
Up to 8K Capture
A wide range of resolutions and frame rates enables the V-RAPTOR 8K S35 to capture up to 120 fps in 8K, 240 fps in UHD 4k, and 480 fps in 2K, with anamorphic options available in 6K, 7K, and 8K.
The 8K resolution provides the ability to crop multiple shots in a lower resolution from a single 8K take.
Wide Array of Compatible Lenses
Super35 lens choices provide a more compact form while offering a wide range of zoom and prime lenses for both broadcast and cine-style productions.
The locking Canon RF lens mount supports select RF to Canon EF-mount adapters, further expanding your lens selection.
Phase-detect and contrast autofocus is available with compatible lenses.
Applications
The compact form, availability of a wide array of compatible lenses, and the classic Super35 look make the V-RAPTOR 8K S35 ideal for wildlife, broadcast, and cine-style productions.
Compact DSMC3 Form
Side Control Panel
Conveniently located on the assistant's side, an easy-to-navigate, 2.4" LCD panel provides comprehensive control, including status updates, in-camera format selection, and customizable buttons.
The V-RAPTOR 8K S35's compact and durable DSMC3 form features micro-V battery compatibility, several monitor options, CFexpress card capture, and a modular design that, when paired with a compact Super35 lens, creates a portable, ergonomic form.
Interfaces
Built-in interfaces include dual 12G/6G/3G-SDI video outputs, genlock, timecode, GPIO, and RS-232 ports.
Wireless 1080p video preview and camera control are available via dual-band Wi-Fi.
A 5-pin audio port provides a dual channel mic/line input with +48V phantom power.
Power Options
Power the V-RAPTOR 8K S35 camera using the integrated battery interface and a Micro V-mount battery or the included AC power adapter.
Lens Mount | Canon RF |
Lens Communication | Yes, with Autofocus Support |
Sensor Resolution | Effective: 35.4 Megapixel (8192 x 4320) |
Sensor Type | 26.21 x 13.82 mm (Super35) CMOS |
Image Stabilization | None |
Built-In ND Filter | None |
Internal Filter Holder | No |
Capture Type | Stills & Video |
Exposure Control | |
Shutter Type | Electronic Rolling Shutter |
Advertised Dynamic Range | 16.5 Stops |
Video Capture | |
Internal Recording Modes | REDCODE HQ |
8192 x 4320 up to 60.00 fps | |
6144 x 3240 up to 96 fps | |
4096 x 2160 up to 240 fps | |
2048 x 1080 up to 480 fps | |
REDCODE MQ | |
8192 x 4320 up to 60.00 fps | |
6144 x 3240 up to 160 fps | |
4096 x 2160 up to 240 fps | |
2048 x 1080 up to 480 fps | |
REDCODE LQ | |
8192 x 4320 up to 120 fps | |
6144 x 3240 up to 160 fps | |
4096 x 2160 up to 240 fps | |
2048 x 1080 up to 480 fps | |
REDCODE RAW | |
8192 x 4320 up to 120 fps | |
7168 x 3780 up to 140 fps | |
6144 x 3240 up to 160 fps | |
5120 x 2700 up to 192 fps | |
4096 x 2160 up to 240 fps | |
3072 x 1620 up to 320 fps | |
2048 x 1080 up to 480 fps | |
External Recording Modes | None |
Sensor Crop While Recording | 8K (8192 x 4320) in 2:1 / 2.4:1 / 16:9 / 17:9 When Recording in Raw |
8K (8192 x 4320) in 1.25:1 / 1.3:1 / 1.5:1 / 1.6:1 / 1.8:1 / 2:1 When Recording in Raw / Anamorphic | |
7K (7168 x 3780) in 2:1 / 2.4:1 / 16:9 / 17:9 When Recording in Raw | |
7K (7168 x 3780) in 1.6:1 / 1.8:1 / 2:1 When Recording in Raw / Anamorphic | |
6K (6144 x 3240) in 2:1 / 2.4:1 / 16:9 / 17:9 When Recording in Raw | |
6K (6144 x 3240) in 1.25:1 / 1.3:1 / 1.5:1 When Recording in Raw / Anamorphic | |
5K (5120 x 2700) in 2:1 / 2.4:1 / 16:9 / 17:9 When Recording in Raw | |
4K (4096 x 2160) in 2:1 / 2.4:1 / 16:9 / 17:9 When Recording in Raw | |
3K (3072 x 2160) in 2:1 / 2.4:1 / 16:9 / 17:9 When Recording in Raw | |
2K (2048 x 1080) in 2:1 / 2.4:1 / 16:9 / 17:9 When Recording in Raw | |
Fast-/Slow-Motion Support | Yes |
Gamma Curve | RED IPP2 |
Built-In Microphone Type | Mono |
Audio Recording | 2-Channel 24-Bit 48 kHz |
IP Streaming | None |
Interface | |
Media/Memory Card Slot | Single Slot: CFexpress Type B (CFast 2.0) |
Video I/O | 2 x BNC (12G-SDI) Output |
Audio I/O | 1 x LEMO 5-Pin Mic/Line (+48 V Phantom Power) Input |
1 x 1/8" / 3.5 mm TRS Stereo Headphone Output | |
Power I/O | 1 x LEMO 6-Pin (11 to 17VDC) Input |
Other I/O | 1 x USB-C Control/Data/Video |
1 x 9-Pin Control/Data Input/Output | |
Wireless | 2.4 / 5 GHz Wi-Fi Control |
Mobile App Compatible | Yes: Android & iOS |
App Name: RED Control, RED Control Pro | |
Functionality: Remote Control, View Live Feed | |
Global Positioning (GPS, GLONASS, etc.) | None |
Monitor | |
Size | 2.4" |
Display Type | Fixed LCD |
Viewfinder | |
Type | Optional, Not Included |
Focus | |
Focus Type | Auto and Manual Focus |
Focus Mode | Automatic, Continuous-Servo AF, Manual Focus, Single-Servo AF |
Environmental | |
Operating Temperature | 32 to 72°F / 0 to 40°C |
Storage Temperature | -4 to 122°F / -20 to 50°C |
Storage Humidity | 0 to 85% |
General | |
Battery Type | Micro V-Mount |
Tripod Mounting Thread | 1/4"-20 Female (Bottom) |
3/8"-16 Female (Bottom) | |
Accessory Mount | 28 x 1/4"-20 Female |
Material of Construction | Aluminum |
Dimensions (W x H x D) | 6.1 x 4.3 x 4.3" / 155.5 x 108 x 108 mm |
Weight | 4.03 lb / 1.83 kg |
