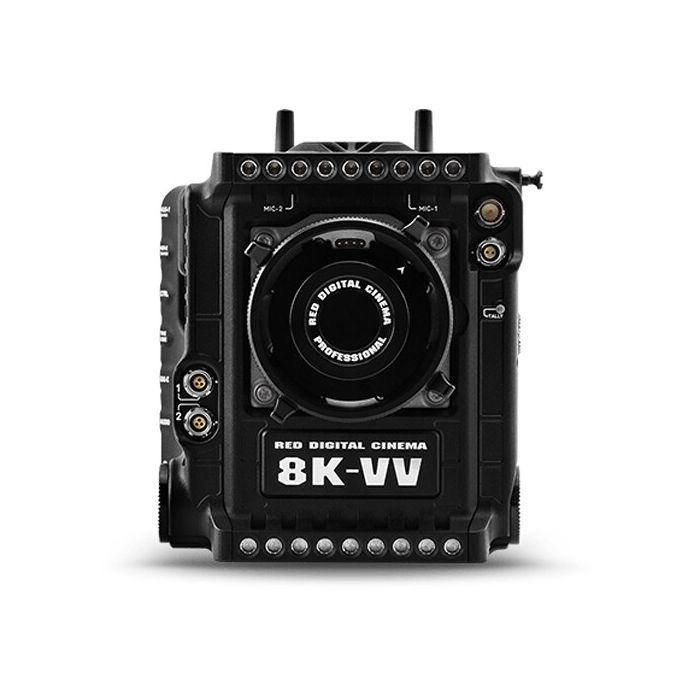

RED V-RAPTOR XL 8K VV Production Pack (V-Lock)
by REDV-RAPTOR XL 8K VV Camera System
DSMC3 RED Touch 7" LCD Monitor & Shade
4 x REDVOLT XL-V Batteries & 1 x Charger
2 x RED PRO CFexpress 2TB Cards, Reader
V-Mount
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
- 1 x V-RAPTOR XL 8K VV (V-Lock)
- 1 x DSMC3 RED Touch 7.0" LCD
- 1 x RED Compact Dual V-Lock Charger
- 4 x REDVOLT XL-V
- 2 x RED PRO CFexpress 2TB
- 1 x RED CFexpress Card Reader
- 1 x V-RAPTOR XL Top Handle
- 1 x V-RAPTOR Top Handle Extensions
- 1 x V-RAPTOR XL Riser Plate
- 1 x V-RAPTOR XL Top 15mm LWS Rod Support Bracket
- 1 x V-RAPTOR XL Bottom 15mm LWS Rod Support Bracket
- 1 x DSMC3 RED 5-Pin to Dual XLR Adapter
- 1 x DSMC3 RMI Cable 18"
- 1 x DSMC3 RED Touch 7.0" LCD Hood
The V-mount V-RAPTOR XL 8K VV Production Pack from RED DIGITAL CINEMA adds a robust accessory selection to the V-RAPTOR XL 8K VV camera. This pack includes the V-RAPTOR 8K VV camera, four REDVOLT XL-V batteries, a dual-battery charger, an XL riser plate, two 2TB PRO CFexpress cards, a CFexpress card reader, a RED Touch 7" LCD monitor, an XL top handle with extensions, top and bottom XL 15mm LWS support brackets, a 5-pin to dual-XLR audio adapter, and an 18" DSMC3 RMI cable. Read more below about the items in this kit.
RED DIGITAL CINEMA V-RAPTOR XL 8K VV Cinema Camera (V-Mount)
The V-mount V-RAPTOR XL 8K VV Camera from RED DIGITAL CINEMA offers up to 8K VV multiformat video capture, REDCODE raw and Apple ProRes recording, and 1080p streaming in a streamlined form featuring an array of interfaces suitable for high-end crew use. This follow-up to the V-RAPTOR incorporates internal ND filters and an interchangeable lens mount, and it includes an ARRI PL mount. Its industry-standard interface incorporates three 12G/6G/3G-SDI outputs, both 12 and 24V power outputs, timecode and genlock ports, and a V-mount battery plate.
- Designed for professional crew use with integrated auxiliary power and mounting points for attaching multiple high-end camera accessories
- Built-in wireless genlock and timecode
- Multiple video outputs, including 12G/6G/3G-SDI
Internal ND Filters
RED DIGITAL CINEMA DSMC3 RED Touch 7.0" LCD Monitor (Direct Mount)
Add a direct-mount onboard monitor to your DSMC3 camera rig with this DSMC3 RED Touch 7.0" LCD Monitor from RED DIGITAL CINEMA. The RED Touch features daylight viewing, a wide 100% DCI-P3 color gamut, and touchscreen control for DSMC3 cameras, such as the V-RAPTOR 8K VV. The monitor features a high 322 ppi pixel density, 1920 x 1200 resolution, 1250:1 contrast ratio, and 1300 cd/m² brightness that combine to offer high-quality imaging.
This monitor attaches directly to your DSMC3 BRAIN using the Pogo mount, and it provides video, data, and power to the monitor from the camera. If you need to use the Pogo mount for another accessory, the monitor also features a locking USB Type-C connector that alternately allows you to pass video, data, and power to the camera. The monitor features a tilt mount that allows it to tilt 180°.
- Designed for daylight viewing with 322 ppi, 1920 x 1200 resolution, and 1800 cd/m² brightness
- 1920 x 1200 resolution and wide 100% DCI-P3 color gamut for optimal imaging
- Mounts directly onto the BRAIN using the Pogo mount
- USB Type-C connector is used for video, data, and power
- Runs SmallHD PageOS software that provides camera control
- Tilt arm with 180° rotation
RED DIGITAL CINEMA Compact Dual Battery Charger (V-Mount)
Charge two V-mount batteries for use with a DSMC3 cinema camera such as the V-RAPTOR 8K VV while on location with the RED Compact Dual V-Mount Battery Charger. Taking advantage of the same technology built into the larger fleet chargers, this compact charger can charge two V-mount REDVOLT MICRO-V or REDVOLT XL-V batteries at a 3A rate. Designed and manufactured in partnership with Core SWX, the charger can charge two REDVOLT MICRO-V 98Wh batteries in less than five hours. A power cable is included.
- RED REDVOLT MICRO-V batteries
- RED REDVOLT XL-V batteries
- Most V-mount batteries
RED DIGITAL CINEMA REDVOLT XL-V Battery (156Wh, V-Mount)
Power your V-RAPTOR XL or most other V-mount cameras with the REDVOLT XL-V Battery from RED DIGITAL CINEMA. This 156Wh battery automatically detects the voltage of your camera and outputs 12V/24A or 24V/12A power accordingly. The REDVOLT XL-V was designed in conjunction with battery-maker Core SWX.
- RED V-RAPTOR XL camera
- Select other cameras using a V-mount adapter
RED DIGITAL CINEMA 2TB PRO CFexpress 2.0 Type B Memory Card
Certified for RED V-RAPTOR camera systems, the 2TB PRO CFexpress 2.0 Type B Memory Card from RED offers protection from overheating, operates with a reduced power draw, and helps to ensure high bitrate captures. This card can capture all frame rates and resolutions, including Full HD and raw 4K, 6K, 8K, and 12K video. It features a capacity of 2TB and uses the PCIe 3.0 x2 bus to deliver maximum read/write speeds of 800 MB/s.
Designed and manufactured by Angelbird for RED, the PRO CFexpress 2.0 Type B series has been engineered with protection against shock, dust, water, temperature extremes, and x-rays, and has an MTBF (Mean Time Between Failures) rating of 2.4 million hours. Included is lifetime data protection and an activation code for the full limited 3-year warranty. To receive the full limited warranty, the product needs to be registered on the Angelbird Personal Service Portal within 30 days after purchase. If not registered within this period, the market-specific legal guarantee period comes into force.
- RED V-RAPTOR 8K VV cinema camera
- RED CFexpress card reader
- 2TB capacity
- Max Read/Write Speed: 800 MB/s
- Stable Stream
- CFexpress 2.0 Type B
- For photos, HD videos, and raw 4K to 12K resolutions
- Y1 processor designed for raw video and photo content
- Adaptive Power Management helps preserve battery life and card endurance
- Host Power Loss Protection
- Advanced Thermal Management helps protect the card, camera, and stored content
- Free data recovery service at the hardware and software levels
- Sticker Free
- Mean Time Between Failures of up to 2.4 million hours
- Temperature Sensor, TRIM, ECC, EMS Protection, Built-In Cache, and SMART
The entire lineup of Angelbird's AV Pro media solutions is built with rock-solid performance protections such as, shock, dust, x-ray, and splash-water proofing, and are tested for safe operating temperatures at extremes of -13 to 185°F.
RED DIGITAL CINEMA V-RAPTOR XL Top Handle with Extensions
Create a lightweight or extended handle using the V-RAPTOR XL Top Handle with Extensions from RED DIGITAL CINEMA. This modular handle includes 1, 3, and 5" extensions, an elbow unit, and a 15mm monitor mount. It features a start/stop button, multiple 3/8"-16 and 1/4"-20 threads, and wooden inlays.
- V-RAPTOR XL camera
RED DIGITAL CINEMA V-RAPTOR XL Riser Plate (15mm & 19mm Studio)
The RV-RAPTOR XL Riser Plate from RED DIGITAL CINEMA enables you to raise a separately available 15 or 19mm studio baseplate to the correct optical height for mounting lenses and accessories. This riser plate also provides several 1/4"-20 and 3/8"-16 mounting threads.
- RED V-RAPTOR XL camera
RED DIGITAL CINEMA Top 15mm LWS Rod Support Bracket for V-RAPTOR XL
This Top 15mm LWS Rod Support Bracket from RED DIGITAL CINEMA attaches securely to the top of your RED V-RAPTOR XL camera, enabling you to mount 15mm LWS compatible accessories like lens motors or viewfinder brackets.
- RED V-RAPTOR XL
- 15mm LWS rod-mounted accessories
RED DIGITAL CINEMA DSMC3 5-Pin to Dual XLR 3-Pin Adapter
Add two XLR inputs to your V-RAPTOR camera with the RED DSMC3 5-Pin to Dual XLR 3-Pin Adapter. Connect the included 5-pin ODU cable to your camera's ODU port, and the other end of the cable to the adapter's port. The adapter can provide 48V phantom power and supports both mic and line-level inputs. It mounts to the V-Raptor using a 3/8"-26 screw, and has anti-twist pins to prevent it from spinning on your camera. The unit also features 6 x M2.5 screw holes for future accessories.
RED DIGITAL CINEMA Hood for DSMC3 RED Touch 7" LCD
Use the Hood for DSMC3 RED Touch 7" LCD from RED DIGITAL CINEMA to reduce or eliminate glare on the monitor's screen, improving your viewing while outdoors or in bright light. This folding hood mounts quickly on the DSMC3 RED Touch 7" using two captive M3 screws.
- DSMC3 RED Touch 7" LCD only
Shutter Type | Electronic Rolling Shutter |
Advertised Dynamic Range | 17 Stops |
Internal Recording Modes | REDCODE HQ 8192 x 4320 up to 59.94 fps 6144 x 3240 up to 96 fps 4096 x 2160 up to 239.76 fps 2048 x 1080 up to 480 fps REDCODE MQ 8192 x 4320 up to 59.94 fps 6144 x 3240 up to 160 fps 4096 x 2160 up to 239.76 fps 2048 x 1080 up to 480 fps REDCODE LQ 8192 x 4320 up to 119.88 fps 6144 x 3240 up to 160 fps 4096 x 2160 up to 239.76 fps 2048 x 1080 up to 480 fps REDCODE RAW 8192 x 4320 up to 119.88 fps 7168 x 3780 [140] 6144 x 3240 up to 160 fps 5120 x 2700 [192] 4096 x 2160 up to 239.76 fps 3072 x 1620 [320] 2048 x 1080 up to 480 fps |
Sensor Crop While Recording | 8K (8192 x 4320) in 2:1 / 2.4:1 / 16:9 / 17:9 When Recording in Raw 8K (8192 x 4320) in 1.25:1 / 1.3:1 / 1.5:1 / 1.6:1 / 1.8:1 / 2:1 When Recording in Raw / Anamorphic 7K (7168 x 3780) in 2:1 / 2.4:1 / 16:9 / 17:9 When Recording in Raw 7K (7168 x 3780) in 1.6:1 / 1.8:1 / 2:1 When Recording in Raw / Anamorphic 6K (6144 x 3240) in 2:1 / 2.4:1 / 16:9 / 17:9 When Recording in Raw 6K (6144 x 3240) in 1.25:1 / 1.3:1 / 1.5:1 When Recording in Raw / Anamorphic 5K (5120 x 2700) in 2:1 / 2.4:1 / 16:9 / 17:9 When Recording in Raw 4K (4096 x 2160) in 2:1 / 2.4:1 / 16:9 / 17:9 When Recording in Raw 3K (3072 x 2160) in 2:1 / 2.4:1 / 16:9 / 17:9 When Recording in Raw 2K (2048 x 1080) in 2:1 / 2.4:1 / 16:9 / 17:9 When Recording in Raw |
Variable Frame Rates | 8K: Up to 119.88 fps 8K (Windowed): Up to 150 fps 7K: Up to 140 fps 7K (Windowed): Up to 175 fps 6K: Up to 160 fps 6K (Windowed): Up to 200 fps 5K: Up to 192 fps 5K (Windowed): Up to 240 fps DCI 4K: Up to 240 fps DCI 4K (Windowed): Up to 300 fps 3K: Up to 320 fps 3K (Windowed): Up to 400 fps DCI 2K: Up to 480 fps DCI 2K (Windowed): Up to 600 fps |
Gamma Curve | RED IPP2 |
Recording Limit | Unlimited |
Built-In Microphone Type | Mono |
Audio Recording | 2-Channel 24-Bit 48 kHz |
IP Streaming | MJPEG: 1920 x 1080 |
Media/Memory Card Slot | Single Slot: CFexpress Type B (CFast 2.0) |
Video I/O | 3 x BNC (12G-SDI) Output 1 x BNC (3G-SDI) Output 1 x Proprietary Output |
Audio I/O | 1 x LEMO 5-Pin Mic/Line (+48 V Phantom Power) Input 1 x 1/8" / 3.5 mm TRS Stereo Headphone Output |
Power I/O | 1 x LEMO 4-Pin (19.5 to 34 VDC) Input 2 x D-Tap (12 VDC up to 3 A) Output 1 x LEMO 2-Pin (12 VDC at 3 A) Output 1 x LEMO 2-Pin (12 VDC at 1.5 A) Output 1 x LEMO 2-Pin (12 VDC at 1 A) Output 2 x Fischer 3-Pin (12 VDC up to 3 A) Output |
Other I/O | 1 x BNC (Genlock) 1 x LEMO 5-Pin (Timecode) 1 x 9-Pin (Ethernet) Control/Data Input/Output 1 x USB-C |
Wireless | 2.4 / 5 GHz Wi-Fi Video Output |
Global Positioning (GPS, GLONASS, etc.) | None |
Size | 2.4" |
Display Type | Fixed LCD |
Type | Optional, Not Included |
Focus Type | Auto and Manual Focus |
Operating Temperature | 32 to 72°F / 0 to 40°C |
Storage Temperature | -4 to 122°F / -20 to 50°C |
Storage Humidity | 0 to 85% |
Battery Type | V-Mount |
Tripod Mounting Thread | None |
Material of Construction | Aluminum |
Dimensions (W x H x D) | Not Specified by Manufacturer |
Weight | 7.99 lb / 3.62 kg |
RED DIGITAL CINEMA DSMC3 RED Touch 7.0" LCD Monitor (Direct Mount) Specs
Color/Monochrome | Color |
Panel Type | LCD |
Display Size | 7.0" / 17.8 cm |
Screen Resolution | 1920 x 1200 |
Touchscreen | Yes |
Maximum Brightness | 1300 cd/m2 |
Contrast Ratio | 1250:1 |
Refresh Rate | 60 Hz |
Pixels Per Inch (ppi) | 322 ppi |
Color Gamut | 100% DCI-P3 |
Video I/O | 1 x USB-C Input/Output |
Field of View | 160° |
Power Consumption | 18.3 W (Maximum) |
Operating Humidity | 0 to 85% |
Operating Temperature | 32 to 100°F / 0 to 38°C |
Storage Humidity | 0 to 85% |
Storage Temperature | 32 to 248°F / 0 to 120°C |
Mounting | 2 x 1/4"-20 Female |
Material of Construction | Aluminum |
Dimensions | 7.1 x 4.7 x 1.1" / 180 x 118.7 x 28.8 mm |
Weight | 1.2 lb / 568 g |
Package Weight | 2.59 lb |
Box Dimensions (LxWxH) | 9.3 x 9.3 x 2.5" |
RED DIGITAL CINEMA Compact Dual Battery Charger (V-Mount) Specs
Mount / Series Type | REDVOLT, REDVOLT XL, V-Mount |
Number of Battery Bays | 2 |
AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
Multi-Bay Charging Modes | Independent, Simultaneous |
Recharge Time | 1 to 5 Hours (98 Wh Batteries) |
Chemistry | Lithium-Ion |
Operating Temperature | 32 to 104°F / 0 to 40°C |
Storage Temperature | 68 to 122°F / 20 to 50°C |
Indicator | LED |
Dimensions | 5.5 x 4.5 x 3" / 139.7 x 114.3 x 76.2 mm |
Weight | 1 lb / 453.6 g |
Package Weight | 2.115 lb |
Box Dimensions (LxWxH) | 8 x 6.9 x 4.2" |
RED DIGITAL CINEMA REDVOLT XL-V Battery (156Wh, V-Mount) Specs
Mount / Series Type | V-Mount |
Chemistry | Lithium-Ion |
Battery Capacity | 156 Wh |
Output Voltage | 12 VDC 24 VDC |
IP Rating | None |
Package Weight | 2.67 lb |
Box Dimensions (LxWxH) | 7.3 x 4.5 x 4.1" |
RED DIGITAL CINEMA 2TB PRO CFexpress 2.0 Type B Memory Card Specs
Quantity | 1 |
Card Type | CFexpress Type B |
Storage Capacity | 2 TB |
Bus Type | PCI-Express 3.0 |
Read Speed | Maximum: 800 MB/s |
Write Speed | Maximum: 800 MB/s |
Durability | Dustproof, Shockproof, Temperature Extremes, Waterproof, X-Ray Proof |
Operating Temperature | 14 to 158°F / -10 to 70°C |
Storage Temperature | -4 to 185°F / -20 to 85°C |
Error Correction | Yes |
Wireless Capability | None |
Certifications | RoHS *as per Manufacturer |
Package Weight | 0.105 lb |
Box Dimensions (LxWxH) | 4.7 x 4 x 0.9" |
RED DIGITAL CINEMA V-RAPTOR XL Top Handle With Extensions Specs
Attachment Method | Not Specified by Manufacturer |
Rod Ports | 1 x 15 mm Rod Port |
Accessory Mounting | Multiple x 1/4"-20 Thread Multiple x 3/8"-16 Thread |
Shoe Mounting | None |
Rosettes | None |
Rail Mounting | None |
Dimensions | Not Specified by Manufacturer |
Weight | Not Specified by Manufacturer |
Item Type | Topside Handle |
Built-In Controls | Remote Trigger |
Package Weight | 4.53 lb |
Box Dimensions (LxWxH) | 15.2 x 12.3 x 4.6" |
RED DIGITAL CINEMA V-RAPTOR XL Riser Plate (15mm & 19mm Studio) Specs
Compatibility | RED DIGITAL CINEMA V-RAPTOR XL |
Mounting | Multiple x 1/4"-20 Thread Multiple x 3/8"-16 Thread |
Dimensions | Not Specified by Manufacturer |
Weight | Not Specified by Manufacturer |
Package Weight | 1.225 lb |
Box Dimensions (LxWxH) | 9.5 x 7.8 x 2.3" |
RED DIGITAL CINEMA Top 15mm LWS Rod Support Bracket For V-RAPTOR XL Specs
Rod Standard | 15 mm LWS / 60 mm Spacing |
Package Weight | 0.47 lb |
Box Dimensions (LxWxH) | 5.5 x 4.5 x 1.7" |
RED DIGITAL CINEMA DSMC3 5-Pin To Dual XLR 3-Pin Adapter Specs
Compatibility | RED V-RAPTOR |
Audio I/O | 2 x XLR 3-Pin Mic/Line Input 1 x DSMC3 RED 5-Pin Mic/Line Output |
Power Source | Camera |
Operating Temperature | 32 to 104°F / 0 to 40°C |
Storage Temperature | -4 to 122°F / -20 to 50°C |
Mounting | Bottom: 1 x 3/8"-16 |
Material of Construction | Aluminum, Rubber |
Cable Length | Not Specified by Manufacturer |
Dimensions | 2.54 x 1.7 x 1.31" / 64.52 x 43.18 x 33.27 mm |
Weight | 7.9 oz / 224 g |
Package Weight | 0.55 lb |
Box Dimensions (LxWxH) | 5.4 x 4.2 x 1.7" |
RED DIGITAL CINEMA Hood For DSMC3 RED Touch 7" LCD Specs
Compatibility | RED DIGITAL CINEMA DSMC3 Touch 7" LCD |
Mounting | Bottom: 3 x M3 Screw |
Dimensions | Not Specified by Manufacturer |
Weight | Not Specified by Manufacturer |
Package Weight | 0.19 lb |
Box Dimensions (LxWxH) | 8.55 x 4.25 x 1.05" |
