Sennheiser ew 512P G4-DW
by SennheiserFor Professional Filmmaker, Videographer
MKE 2 Miniature Omnidirectional Lav Mic
Rugged Bodypack Transmitter
Diversity Camera-Mount Receiver
3520 Auto-Scan Frequencies
Adjustable RF Output Power Up to 50 mW
Advanced Controls for Flexible Use
Balanced Output & Headphone Output
8-Hr AA Batteries
Up to 32 Mics on Set / 330' Range
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
- Sennheiser EW 512P G4 Camera-Mount Wireless Omni Lavalier Microphone System (Dw: 790 - 865 MHz)
- Sennheiser EK 500 G4 Pro Wireless Camera-Mount Receiver Dw: 790 - 865 MHz
- Sennheiser SK 500 G4 Wireless Bodypack Transmitter (Dw: 790 - 865 MHz)
- Sennheiser MKE 2 Gold Series Subminiature Omnidirectional Lavalier Microphone with Locking 3.5mm Connector & Accessories (Black)
- Fur Windscreen
- Sennheiser CA2 Shoemount Adapter for EW Series Camera Mountable Receivers
- Sennheiser CL1 3.5mm to 3.5mm Output Cable for EW Series Camera-Mount Receiver
- Sennheiser CL-500 Balanced Cable for Use with Sennheiser EK500 Receiver 1/8"-Male Mini Jack to XLR-Male Connector

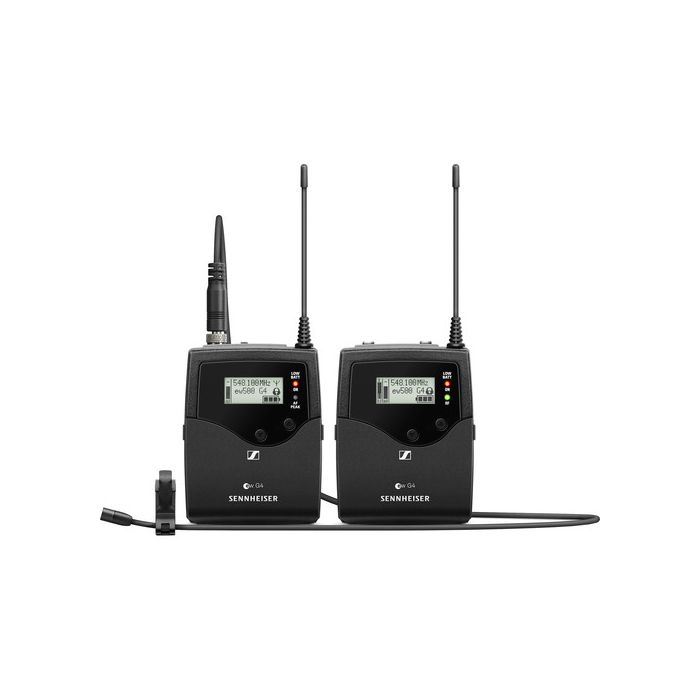

The Sennheiser EW 512P G4 is a camera-mount wireless lavalier microphone system that brings advanced features to the EW Series, expanding this industry-standard system into a fully professional, yet cost-effective solution that filmmakers, videographers, and journalists can rely on—even in challenging shooting environments like big cities.
The rugged EW 512P G4 combines a wide 88 MHz bandwidth with 3520 frequencies and an RF output level up to 50 mW for a clean transmission and broadcast-quality sound. Depending on your location, you can operate up to 32 mics in one space.
For pristine sound capture, the EW 512P G4 features a high-grade MKE 2 omnidirectional lavalier mic with a sweat-resistant, easy-to-conceal miniature design. Also included is a bodypack transmitter and a camera-mount receiver. The system connects to a camcorder, a DSLR/mirrorless, or a cinema camera to capture crisp-sounding speech or dialog for projects ranging from films and documentaries to wedding videos, corporate spots, and hands-free interviews.
The EW 512P G4 is backward-compatible with previous evolution systems, including EW 100 models, giving you the ability to mix and match G4/G3/G2/G1 receivers or bodypack, handheld, and plug-on transmitters.
Built for Reliable Performance in the Field
- The EW 500 BOOM G4 features rugged, all-metal chassis well suited for extended use on location.
- The lightweight, compact bodypack transmitter is moisture-resistant, easy to conceal, and offers rounded edges that are soft to the touch and comfortable for the talent to wear. The plug-on transmitter attaches to any dynamic or condenser microphone equipped with an XLR connector.
- Both transmitters are equipped with locking connectors ensuring your mic doesn’t detach at a critical moment. Each also feature a convenient mute switch.
- Using the included shoemount adapter, the compact receiver easily mounts on your camera without adding much weight. The included CL 500 cable provides a balanced connection from the receiver to the XLR audio input of your camcorder, cinema camera, or recording device. The CL 1 cable is for DSLR/mirrorless cameras and devices with 3.5mm inputs. A headphone output lets you monitor the quality of your sound while recording.
- The transmitters and receiver feature daylight-readable LED displays showing reception quality, battery status, and audio level.
Advanced Controls for Flexible Use
- The frequency scan function automatically searches for the cleanest frequency at your location.
- To get you going quickly, the transmitter and receiver synchronize via infrared interface with the simple push of a button.
- 10/30/50 mW switchable RF output helps overcome interference or save battery life.
- The adjustable input sensitivity on the transmitter accommodates mic levels ranging from booming voices to quiet speech, and even line-level audio.
- The receiver has an adjustable output range of 42 dB to match the audio input of your camera or recording device.
Proven Broadcast-Quality Sound
- Popular with industry professionals, the MKE 2 omnidirectional lavalier microphone delivers a natural, broadcast-quality sound optimized for speech intelligibility. Its omnidirectional polar pattern ensures that the sound remains consistent, even when the speaker’s head moves away from the mic.
- To take full advantage of your microphone’s dynamic range, the system employs proprietary HDX compander technology, preserving your sound without adding unwanted noise during transmission—delivering audio with remarkable accuracy and quality.
Additional Features
- Adaptive-diversity reception for reliable transmission up to 330'
- 20 frequency banks, each with up to 32 factory-preset channels to prevent intermodulation
- Pilot tone squelch for eliminating RF noise when transmitter is turned off
- User-friendly menu operation with flexible control options
- Transmitters and receiver feature 4-step battery-life indicator
- Auto-Lock function avoids accidental changing of settings
- RF Mute function
- 8 hours of battery life
- Powered via AA batteries or rechargeable BA 2015 Accupack batteries (available separately)
- Side contacts on the receiver and bodypack transmitter for recharging the Accupacks without removing them—requires the L 2015 quick-charging unit (available separately)
- Unlike digital wireless systems, the SK 500 G4 and SKP 500 G4 transmitters can transmit to an unlimited number of EW series receivers
- Wide range of accessories adapts the system to a variety of applications
EW 100 G4 vs EW 500 G4 Systems at a Glance
- Bandwidth: 42 MHz vs up to 88 MHz
- UHF Frequencies: 1680 vs up to 3520
- RF Output Power: Fixed 30 mW vs adjustable 10/30/50 mW
- Mics at Once: Up to 12 mics vs up to 32 mics
- Included Lavalier Mic: ME 2-II omni or ME 4 cardioid vs professional MKE 2 omni
- Headphone Output: No vs yes
- Audio Output: Unbalanced vs balanced
- Plug-On Transmitter: No phantom vs +48V phantom power
Wireless Technology | Analog UHF |
Number of RF Channel Frequencies | 3520 |
Included Transmitters | 1 x Bodypack |
Diversity | Antenna Diversity |
RF Frequency Band | Dw: 790 - 865 MHz |
RF Bandwidth | 88 MHz |
Frequency Step Size | 25 kHz |
Max Operating Range | 330' / 100.6 m (Line of Sight) |
Max Transmitters per Band | 32 |
Encryption | None |
Deviation | ±48 kHz (Peak) |
Modulation | Wideband FM |
Receiver Type | Camera-Mount |
Mounting Options | Shoe-Mount (with Included Hardware) |
Antenna | 1 x External, Fixed (Top-Mount) |
Number of Audio Channels | 1 |
Audio I/O | 1 x 1/8" / 3.5 mm TRS Female Balanced Line Output (Lockable) 1 x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output (Lockable) |
Gain Range | 42 dB (6 dB Steps) |
Audio Output Level | 1/8" / 3.5 mm Output: +17 dBu (Balanced) |
Squelch | Adjustable, 5 to 25 dBμV |
Adjacent Channel Isolation | >65 dB |
Power Requirements | Battery |
Battery Type | 2 x AA (Included) 1 x Sennheiser Accupack (Not Included) |
Approx. Battery Life | 8 Hours (Alkaline) |
Display & Indicators | 1 x Backlit LCD (Battery Status, Output Level, RF Level) |
Housing | Metal |
Operating Temperature | 14 to 131°F / -10 to 55°C |
Dimensions | 2.5 x 3.2 x 0.9" / 64 x 82 x 24 mm |
Weight | 4.6 oz / 130 g (with Batteries) |
Transmitter Type | Bodypack |
RF Output Power | 10 / 30 / 50 mW (Switchable, at 50 Ohms) |
Audio I/O | 1 x 1/8" / 3.5 mm TRS Female Unbalanced Input (Lockable) |
Pad | None |
Muting | Mute Switch |
Audio Input Level | 3 V RMS (Mic Level, Line Level) |
Gain Range | 60 dB (3 dB Steps) |
Frequency Response | 80 Hz to 18 kHz (Mic) 25 Hz to 18 kHz (Line) |
Sync Method | IR |
Antenna | 1 x Internal, Fixed (Beltpack) |
Power Requirements | Battery |
Battery Type | 2 x AA (Included) 1 x Sennheiser Accupack (Not Included) |
Approx. Battery Life | 8 Hours (Alkaline) |
Display & Indicators | 1 x Backlit LCD (Audio Level, Battery Status, Signal Strength) |
Housing | Metal |
Operating Temperature | 14 to 131°F / -10 to 55°C |
Dimensions | 2.5 x 3.2 x 0.9" / 64 x 82 x 24 mm |
Weight | 5.6 oz / 160 g (with Batteries) |
Microphone Type | Lavalier |
Sound Field | Mono |
Capsule | Condenser |
Polar Pattern | Omnidirectional |
Frequency Range | 20 Hz to 20 kHz |
Equivalent Noise Level | 39 dB CCIR |
Maximum SPL | 142 dB SPL |
Sensitivity | 5 mV/Pa at 1 kHz |
Output Connectors | 1 x 1/8" / 3.5 mm TRS Male Unbalanced (Lockable) |
Cable Length | 5.25' / 1.6 m |
Operating Voltage | 7.5 V |
Operating Current Consumption | 250 µA |
Weight | 0.6 oz / 17 g |
Package Weight | 1.745 lb |
Box Dimensions (LxWxH) | 16 x 6.9 x 3" |
