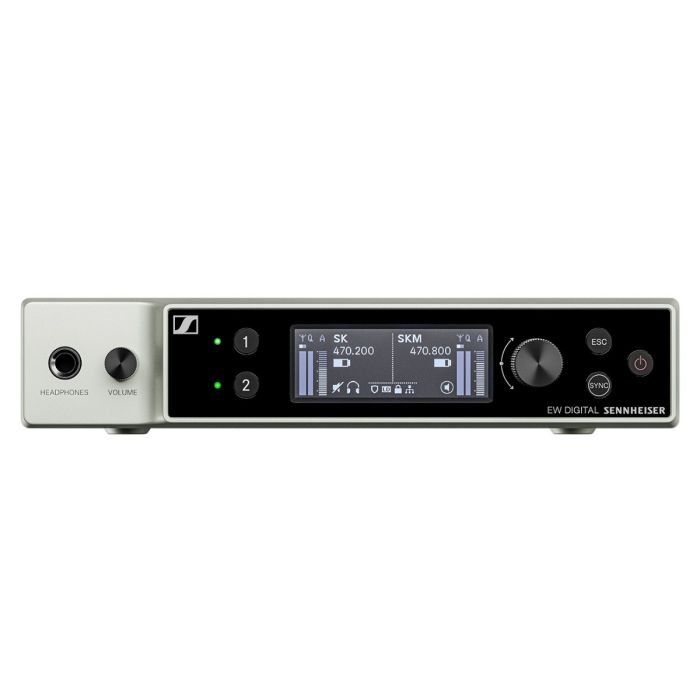

Sennheiser EW-DX EM 2 (R1-9)

by Sennheiser
Dostupnost: Isporuka 14-20 dana
SKU
SEN-509343

Equidistant channel spacing to easily allocate intermodulation-free channels: Standard Mode with 600 kHz spacing for up to 146 channels; Link Density (LD) Mode with 300 kHz spacing for up to 293 channels
Up to 88 MHz switching bandwidth
Low latency of 1.9 ms wireless transmission thanks to proprietary Sennheiser Performance Audio Codec (SePAC)

1.098,75 € 879,00 €

Sadržaj pakiranja

  • EW-DX EM 2
  • GA 3 rack mount kit
  • EW-D Power Supply with country adapters
  • 2 rod antennas
  • 4 rubber feet

Raising the bar

Evolution Wireless Digital breaks the boundaries by providing more dynamic range than any wireless system currently on the market.

Automatically securing the most reliable signal in a matter of seconds and scalable up 90 channels thanks to 56 MHz of tuning bandwidth, it’s easy to see why this wireless system is in a class of its own.

Equidistant Spacing – simpler than it sounds

Evolution Wireless Digital features an equidistant tuning grid previously only found in our flagship Digital 6000 and Digital 9000 wireless systems.

Quality components with exceptional linearity eliminate intermodulation between EW-D transmitters, allowing frequencies to be equally spaced every 600 kHz alongside each other.

This simplifies frequency coordination for wireless beginners and seasoned professionals alike, and also contributes to the system’s scalability and impressively high channel count.

Versatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App.

Receive state-of-the-art live sound featuring Sennheiser‘s renowned e 835 capsule on a lightweight handheld transmitter with integrated mute switch.

Sennheiser EW-DX simplifies your professional workflow by utilizing refined technologies to deliver a digital UHF system that can be scaled with ease.

With its advanced feature set and hardware options, classrooms, corporate campuses, and live performance productions benefit from a network-ready system that is designed to integrate seamlessly.

AutoScan quickly assesses your environment and uses equidistant channel spacing to deploy frequencies while tools like Sennheiser’s Control Cockpit, Wireless Systems Manager, and Smart Assist App allow you to monitor your system remotely.

Audio link frequency ranges Q1-9: 470.2 - 550 MHz
      R1-9: 520 - 607.8 MHz
      S1-10: 606.2 - 693.8 MHz
      S2-10: 614.2 - 693.8 MHz


S4-10: 630 - 693.8 MHz




U1/5: 823.2 - 831.8 MHz & 863.2 - 864.8 MHz


      V3-4: 925.2 - 937.3 MHz
      V5-7: 941.700- 951.800 & 953.050 - 956.050 & 956.650-959.650 MHz


Y1-3: 1785.2 - 1799.8 MHz


Bluetooth® Low Energy (BLE) frequency range

2405 - 2480 MHz


Audio frequency response 20 Hz - 20 kHz (-3 dB) @ 3 dBfs
THD, total harmonic distortion ≤ -60 dB for 1 kHz @ -3 dBfs input level
Dynamic range   134 dB
System Latency   1.9 ms
RF technology   Intelligent Switching Diversity
Operating temperature -10 °C - +55 °C (14 °F - 131 °F)
Operating relative humidity 5 - 95 % (non-condensing)
Input voltage range   11 - 13 V ⎓ or PoE IEEE 802.3af Class 0
Input Current   ≤ 1A
Transmit power (radiated) BLE: max. 10 mW EIRP
Audio output power   18 dBu max
Ethernet     RJ-45 socket, IEEE802.3
      100Base-TX (half+full duplex)
      10Base-T (half+full duplex)
      (CAT5e or higher)
Dimensions   212 x 44 x 189 mm
Weight     approx. 1000 g (without antennas and power supply)
