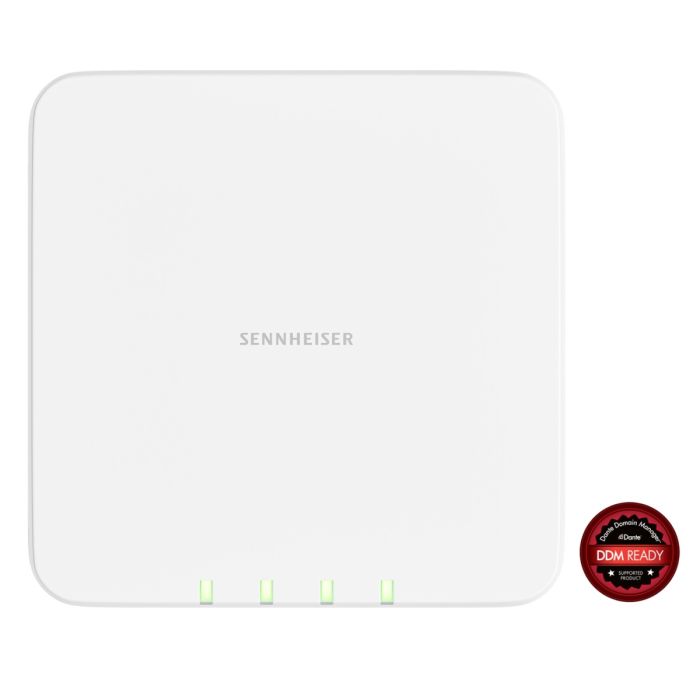

Sennheiser SL MCR 4 DW-3
by SennheiserFour channel receiver for SpeechLine Digital Wireless
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
- SL MCR DW
- Wall mounting plate
- Drilling template
- 3-pin phoenix connector (3,81mm)
- Quick Guide
The SpeechLine Multi-Channel Receiver with its 2 or 4 channels is the perfect addition to the SpeechLine series. Thanks to its unobtrusive design, the Multi-Channel Receiver can be installed quickly and easily in any room, whether on the wall or ceiling. The device can be operated with a single network cable, thanks to PoE and Dante. Complex analog audio cabling is a thing of the past. The Multi-Channel Receiver also offers a convenient solution for existing installations. Thanks to an integrated auto mixer and the analog mix output, all audio channels can be used simply as a sum signal. The audio mix is also available digitally via Dante, which allows an extension of the existing setup without exchanging the DSP. Due to the bidirectional communication between receiver and transmitter, all settings of the mobile transmitters can easily be made in the Sennheiser Control Cockpit. The receiver's automatic frequency management eliminates the need for manual frequency settings and the automatic interference management guarantees maximum transmission reliability. The user-friendly pairing function ensures a reliable connection between transmitter and receiver. Network integration also makes it possible to remotely control and monitor the receiver via a media control system (e.g. AMX, Crestron, Q-SYS Control). Due to the integrated antennas, a complex antenna installation is no longer necessary.
- Automatic Gain Control
- Automatic Frequency management
- AES 256 encryption
- 2-port Dante
- PoE
- Analog Mix Output
- One status LED per Link
- Remote control via Control Cockpit or media control
- Wall, ceiling or mic stand mounting
- Integrated Automixer
- DDM Ready
| RF Frequency Range | 1880 - 1930 MHz |
| Frequency Response | 20 Hz to 20 kHz |
| Dynamic Range | >120 dB(A) |
| THD | Typ. 0.1% (1 kHz) |
| Signal-to-Noise Ratio | >90 dB(A) |
| Audio Sampling | 24-Bit/48 kHz |
| Encryption | AES-256 |
| Modulation | GFSK with Back Channel |
| Diversity | TDMA, Space Diversity |
| Latency | 19 ms |
| Channels | 4 |
| Audio Outputs | 1 x 3-Pin Socket (Suitable for Phoenix Contact MCVW 1.5-3-ST-3.81) 2 x RJ-45 Dante Digital Audio Network Sockets |
| RF Sensitivity | <-90 dBm |
| RF Output | Back Channel: Up to 250 mW (Country-Specific), Adaptive or Manual |
| Network Protocol | Media Control Protocol, UDP IPv4 (DHCP, Manual)/IPv6, mDNS (Switchable) |
| Power Supply | PoE IEEE 802.3af Class 3 |
| Dimensions | 7 x 7 x 1.7" / 180 x 180 x 45 mm (Including Wallmount Adapter) |
| Weight | 22.9 oz / 650 g (Including Wallmount Adapter) 19.7 oz / 560 g (Without Wallmount Adapter) |
| Package Weight | 2.67 lb |
| Box Dimensions (LxWxH) | 9.9 x 8.9 x 3.8" |
