Sennheiser SL PASC 4

Dostupnost: Isporuka 14-20 dana

SKU

SEN-390041

For SpeechLine Digital Wireless Mics
For up to Four SL Rack Receiver DW
Connects to AWM 2 or AWM 4 Antenna
8 x SMA-RP Cables

853,25 € 682,60 €

Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sadržaj pakiranja

Sennheiser SL PASC 4 Four-Channel Passive Antenna Splitter/Combiner for SpeechLine Series (1880 to 1930 MHz)
8 x SMA-RP Cables (2')

Opis

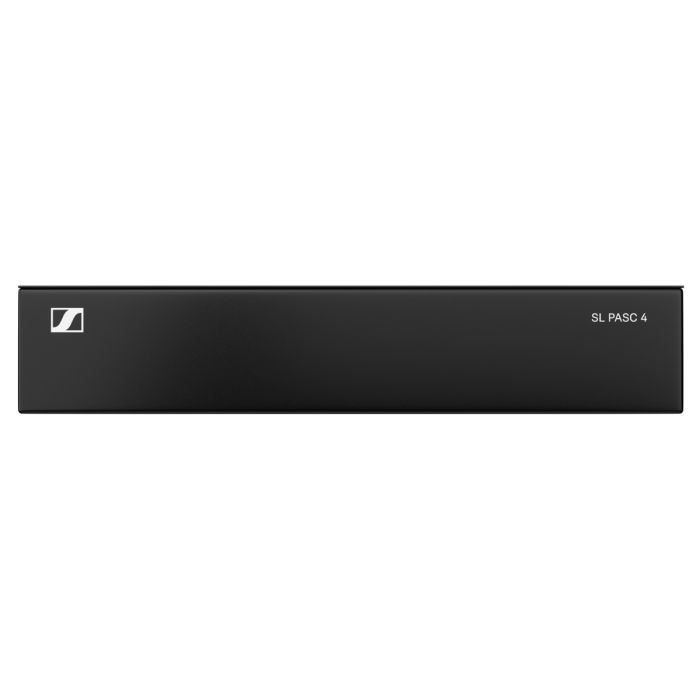

The Sennheiser SL PASC 4 is a passive, four-channel true diversity antenna splitter/combiner for the SpeechLine Digital Wireless microphone series.

It is used to distribute the antenna signals from up to four SpeechLine Digital Wireless radio links. In combination with the AWM 2 or AWM 4 remote antennas (both available separately), the number of required antenna cables is reduced to a minimum.

Connect the SL PASC 4 to the rack receivers using the supplied SMA-RP cables.

Features

Four-channel passive antenna combiner/splitter
1880 to 1930 MHz (DECT range)
8 x RF outputs for connecting up to four SL Rack Receiver DW units
2 x RF inputs to connect an AWM 2 or AWM 4 antenna
10 x RP-SMA (AC coupled) connectors
8 x SMA-RP cables

Specifikacije

Type	4-Channel, Connects to a maximum of Four Receivers
Frequency Band	DECT: 1880 to 1930 MHz
Connectors	10 x RP-SMA (AC-Coupled)
Attenuation	8 dB Typ.
Input Power	1.5 W, Max
Color	Black
Operating Temperature	-40 to 185°F / -40 to 85°C
Dimensions	8.3 x 6.3 x 1.6" / 210.0 x 160.0 x 41.0 mm
Weight	23.4 oz / 663.0 g
