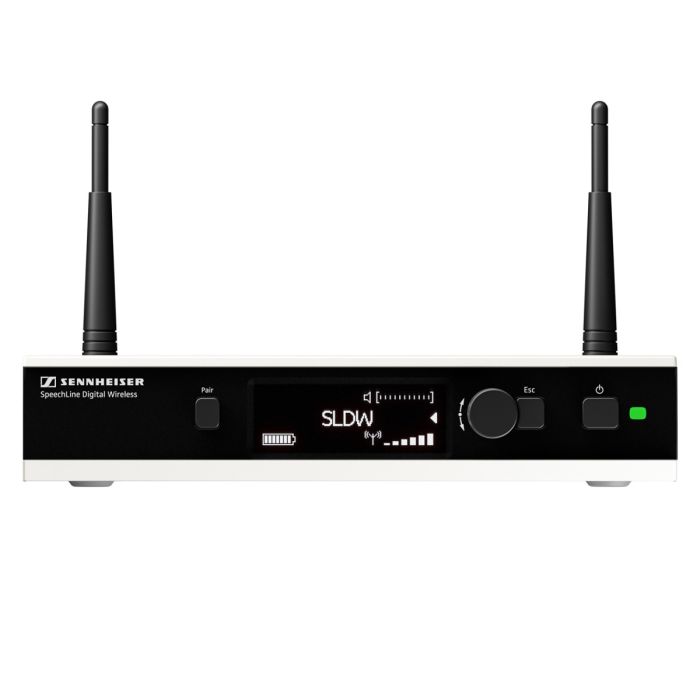

Sennheiser SL RACK RECEIVER DW-3-EU
by SennheiserThe half 19" stationary SL Rack Receiver DW is the easy-to-integrate core of the SpeechLine Digital Wireless System.
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
- SL Reveiver DW - Rack Receiver
- Power Supply
- Antennas
The half 19" stationary SL Rack Receiver DW is the easy-to-integrate core of the SpeechLine Digital Wireless System. It features a clear visible OLED display for easy setup and operation. Thanks to the bi-directional communication all settings of the mobile transmitters can be adjusted from the receiver side. The automatic frequency and interference management allows convenient and reliable operation. Thanks to the easy-to-handle pairing process, the transmitter and receiver are securely linked. Via network integration all settings and statuses are also accessible via AMX/Crestron media control protocol and the dedicated Sennheiser iOS Apps. The antennas can be either back or front-mounted.
Furthermore, extension cables for wall mounting are available.
- Automatic frequency and interference management
- Speech optimized automatics and sound profiles
- Clear and easy focused user interface with OLED display
- Ethernet connectivity (IPv4 and IPv6)
- Media control protocol integration
- Secure 256 bit AES encryption
- Remote controllable
- Quick setup pairing process
| Frequency Response | 20 Hz to 20 kHz |
| Dynamic Range | > 120 dBA |
| Total Harmonic Distortion (THD) | Typical 0.1 % |
| Sampling Rates | 24-bit/48 kHz |
| Signal-to-Noise Ratio | > 90 dBA |
| Encryption | AES 256 |
| Frequency Range | 1,880 to 1,900 MHz |
| Modulation | GFSK with back channel |
| Transmission Method | TDMA, space diversity |
| Latency | 19 ms |
| Relative Humidity | Maximum 95% |
| Temperature Range | Operation: 14 to 131°F (-10 to 55°C) Storage: -4 to 158°F (-20 to 70°C) |
| RF Sensitivity | < -90 dBm |
| RF Output Power | Adaptive, up to 250 mW (country-specific) |
| Audio Output Level | XLR Balanced: Maximum -18 dBu, typical -24 dBu RCA Unbalanced: Maximum +6 dBu |
| Audio Effects | Low Cut: -3 dB at 120 Hz Equalizer: 7-band graphic equalizer with sound presets Sound Profiles: Female voice, male voice, and instrument/media |
| Display | OLED |
| Network Protocol | Media Control Protocol, TCP/IP IPv4 (DHCP, manual)/IPv6 |
| Power Supply | 12 VDC |
| Current Consumption | 350 mA |
| Output Connection | 1 x 3-pin XLRM 2 x RCA |
| Connections | Network: RJ 45 DC Socket for Power Supply: Hollow jack |
| Dimensions | Not specified by manufacturer |
| Weight | 29 oz (828 g) |
| Nominal Input Voltage | 100 to 240 VAC |
| Power Frequency | 50 or 60 Hz |
| Input Current | Maximum 120 mA |
| Power Consumption | Standby: ≤ 0.3 W |
| Operating Temperature | 14 to 131°F (-10 to 55°C) Storage: -4 to 158°F (-20 to 70°C) |
| Humidity (Relative) | 95% |
| Dimensions | Not specified by manufacturer |
| Weight | Approx. 3.5 oz (100 g) |
| Package Weight | 5.9 lb |
| Box Dimensions (LxWxH) | 16 x 10.8 x 3" |
