Sennheiser SZI 1029-10-EU

Dostupnost: Isporuka 14-20 dana

SKU

SEN-004005

The SZI 1029 is a high-power radiator for use with all wideband and narrow-band modulators that is available in 5 W and 10 W radiating power

2.781,25 € 2.225,00 €

Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sadržaj pakiranja

1 radiator or modulator/radiator, respectively
1 mains cable

Opis

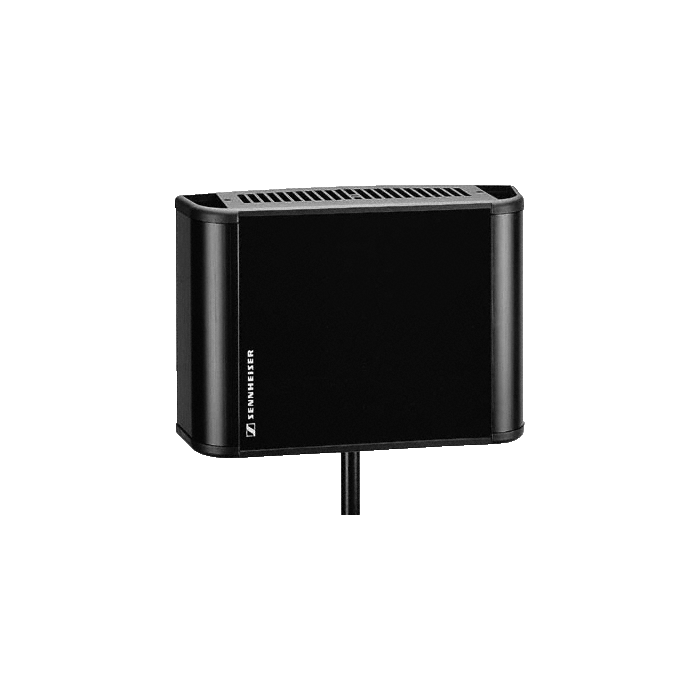

The SZI 1029 is a high-power radiator for use with all wideband and narrow-band modulators that is available in 5 W and 10 W radiating power. The radiator is automatically switched on by the RF carrier and can cover areas of up to 800 m² (5 W variants) or 1600 m² (10 W variants) in single-channel operation. High-quality GaAlAs transmitting diodes have been arranged in independent groups to ensure reliable transmission. A malfunction indicator is triggered when the radiating power is reduced by more than 30 %.

High-power radiator with a maximum coverage area of 800 m² (SZI 1029) or 1600 m² (SZI 1029-10)
6 variants
RF output for connecting additional radiators
Automatic on/off function
Versatile installation due to 5/8", 3/8" and 1/2" threads
Excellent reliability due to 12 (SZI 1029) or 24 (SZI 1029-10) independent groups of transmitting diodes and malfunction indicator

Specifikacije

Weight	3.0 kg
Current consumption	700 mA / Stand-by 50 mA
Operating voltage (mains)	170-260 V, 50-60 Hz
Effective radiated power	5w
IR Diodes	264 GaAlAs
Max. coverage area	1600 m²
Impedance	5 kΩ
RF input	BNC
RF output	BNC
Threshold for automatic on/off function	50 mV (HF- Signal)
