Teradek Slice 356 AVC SDI Rack-mount H.264 Decoder GbE AC-WiFi USB

by Teradek
Dostupnost: Isporuka 7-10 dana
SKU
TRD-10-0356

The decoder includes 2.4 / 5 GHz MIMO WiFi, Ethernet, and cellular connectivity options and supports multiple transport protocols, including MPEG Transport Stream, RTP/RTSP, and Zixi.

2.256,50 € 1.805,20 €

Sadržaj pakiranja

  • Teradek Slice-356 Rack Mount HD-SDI H.264 Decoder
  • Power Cable

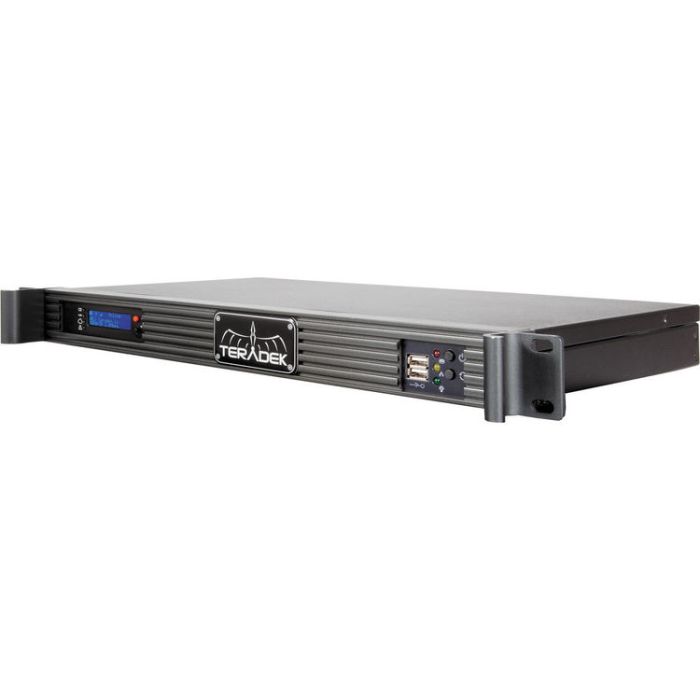

The Teradek Slice-356 Rack Mount HD-SDI H.264 Decoder is a 1U rack-mount H.264 decoder built for OB vans and enterprise applications. It enables video professionals to output low-latency, high-definition 1080p video at up to 10 Mb/s via HD-SDI.

The decoder includes 2.4 / 5 GHz MIMO WiFi, Ethernet, and cellular connectivity options and supports multiple transport protocols, including MPEG Transport Stream, RTP/RTSP, and Zixi. With the addition of Teradek’s Sputnik server, this rack mount decoder gains IFB and remote monitoring capabilities that gives broadcasters full control over their IP video deployments.

Video Inputs & Looping Outputs:
HD-SDI, SD-SDI
BNC connector
Supported Resolutions 1080i 50 / 59.94 / 60
1080p 23.98 / 24 / 25 / 30
1080PsF 23.98 / 24 / 25
720p 50 / 59.94 / 60
576p (HDMI) / 576i (HD-SDI)
480p (HDMI) / 480i (HD-SDI)
Video Codec Compression Algorithm: Baseline, Main, and High Profile H.264
Main and Baseline profiles
Built-in video scalar and deinterlacer
Bit Rate 250 kb/s to 10 Mb/s
Video Streaming Support Network Protocols: TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP>
Transport Protocols: RTP, RTSP, RTP over HTTP, MPEG-TS
RTMP (Adobe Flash Streaming)
HTTP Live Streaming
Point-to-Point (TCP or UDP), Multiple Unicast (UDP), or Multicast (UDP+IGMP)
Audio Audio Compression: AAC-LC, MPEG Layer 2
Embedded Audio Input
Analog line out
Mic in, adjustable gain
Headphone output, adjustable volume
Interfaces Feature-rich WebUI for configuration and control
OLED LCD display with joystick navigation buttons
On / Off and reset switch
microSD
Powered USB 2.0 host port
Network Ethernet: 10/100BASE-T
Power Consumption Nominal (Maximum): 2.5 + 2.5 W per USB device
Power Input 110 / 240 VAC
Size 1 U rack mount
Weight 6.1 lb (2.8 kg)
