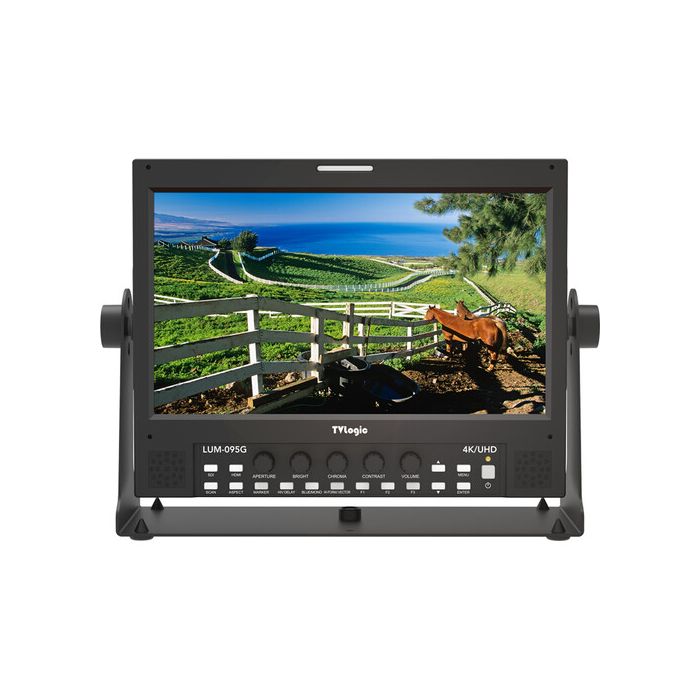

TVLogic LUM-095G 9'' 4K Input-Ready Monitor LCD Monitor

TVLogic LUM-095G 9'' 4K Input-Ready Monitor LCD Monitor

by TVLogic

Dostupnost: Isporuka 7-10 dana

SKU

TVL-LUM-095G

9" 1920 x 1080 LCD Monitor
4 x SDI Ports, 1 x HDMI Port

5.368,75 € 4.295,00 €

Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sadržaj pakiranja

TVLogic 9" UHD 4K Input-Ready SDI/HDMI LCD Monitor
AC Power Cord
DC Power Adapter
Carry Handle
Table Stand
Camera Mount

Opis

Ideal for field monitoring applications, the 9" UHD 4K Input-Ready SDI/HDMI LCD Monitor from TVLogic supports both SDI and HDMI video at resolutions up to UHD 4K. Four SDI ports and one HDMI port natively support full HD resolutions while also supporting UHD 4K inputs. The LUM-0956 has a 178° viewing angle and maximum brightness of 400 cd/m² for increased visibility.

Onboard button controls allow you to adjust various image monitoring parameters from waveform to image flip. Control can also be achieved via the RS-422 connections or via remote control using the RJ45 port on the back panel. Upload custom 3D LUTs and view various cine camera LUTs for color monitoring.

Features at a Glance

High Dynamic Range mode for monitoring black and highlights simultaneously
12G-SDI Single Link UHD 4K, 3G-SDI Quad-Link
Supports PQ, HLG, S-Log3 as HDR EOTF gamma
Various color adjustment menus to monitor the video signal
ARRI camera status to display metadata like camera status and lens data from ARRI ALEXA
Upload 3D LUT files via USB, supports ARRI Log-C, Sony S-Log1/2/3, Canon C-Log, RED Gamma 3/4

Image Controls

H/V flip, H/V delay
Waveform
Luma(Y') zone check
Vectorscope
Focus assist
Range error
User-controllable aspect ratio
Dynamic UMD
Markers
Zoom
Audio level meter
Timecode display
Freeze
Blue only
Closed caption

Specifikacije

Display Size	9.0" / 22.9 cm
Native Resolution	1920 x 1080
Touchscreen	No
HDR Support	No
Video I/O	1x HDMI 2.0 Input
	1x BNC (12G-SDI) Input
	1x BNC (12G-SDI) Output
	1x BNC (3G-SDI) Input
	1x BNC (3G-SDI) Output
	Show Less
Media/Memory Card Slot	No
Video Format	SDI (8/10/12-Bit 4:4:4/4:2:2 RGB, YCC)
	1080p: 30/29.97/25/24/23.98
	1080PsF: 30/29.97/25/24/23.98
	1080i: 60/59.94/50
	SDI (10-Bit 4:4:4 RGB, YCC)
	720p: 60/59.94/50
	SDI (8/10/12-Bit 4:4:4/4:2:2 RGB, YCC)
	DCI 2K: 60/59.94/50/30/29.97/25/24/23.98
	DCI 2K PsF: 30/29.97/25/24/23.98
	SDI (10-Bit 4:2:2 YCC)
	DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
	UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
	1080p: 60/59.94/50/30/29.97/25/24/23.98
	1080PsF: 30/29.97/25/24
	1080i: 60/59.94/50
	720p: 60/59.94/50
	576i: 50
	480i: 59.94
	SDI (10/12-Bit 4:4:4 RGB, YCC)
	DCI 4K: 30/29.97/25/24/23.98
	UHD 4K: 30/29.97/25/24/23.98
	HDMI (8-Bit 4:4:4/4:2:2 RGB, YCC)
	1080p: 60/59.94/50/30/29.97/25/24/23.98
	1080i: 60/59.94/50
	720p: 60/59.94/50
	576p: 50
	576i: 50
	480p: 60
	480i: 60
	HDMI (8/10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YCC)
	DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
	UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
	Show Less
Power Consumption	30 W
Display
Panel Type	IPS-Type LCD
Display Size	9.0" / 22.9 cm
Native Resolution	1920 x 1080
Aspect Ratio	16:09
Viewing Angle	Horizontal: 178°
	Vertical: 178°
Touchscreen	No
Maximum Brightness	400 nits / cd/m2
Contrast Ratio	750:01:00
Color Support	16.7 Million Colors (8-Bit)
HDR Support	No
LUT Support	Yes
Image Controls	Anamorphic De-Squeeze, Blue Only, Color Temperature Selection, Customizable Aspect Ratios, Focus Assist, H/V Delay, Image Flip, Vectorscope, Waveform
Inputs/Outputs
Video I/O	1x HDMI 2.0 Input
	1x BNC (12G-SDI) Input
	1x BNC (12G-SDI) Output
	1x BNC (3G-SDI) Input
	1x BNC (3G-SDI) Output
Embedded Audio	HDMI/SDI
Audio I/O	1x 1/8" / 3.5 mm Input
	1x 1/8" / 3.5 mm Output
Built-In Speaker	Mono
Power I/O	1x XLR 4-Pin (24 VDC) Input
Other I/O	2x RJ45 (RS-422) Input/Output
	1x RJ45 (GPI)
	1x USB-A (Firmware) Input
Media/Memory Card Slot	No
Wireless
Wi-Fi	No
Bluetooth	No
Mobile App Compatible	No
Format Support
Video Format	SDI (8/10/12-Bit 4:4:4/4:2:2 RGB, YCC)
	1080p: 30/29.97/25/24/23.98
	1080PsF: 30/29.97/25/24/23.98
	1080i: 60/59.94/50
	SDI (10-Bit 4:4:4 RGB, YCC)
	720p: 60/59.94/50
	SDI (8/10/12-Bit 4:4:4/4:2:2 RGB, YCC)
	DCI 2K: 60/59.94/50/30/29.97/25/24/23.98
	DCI 2K PsF: 30/29.97/25/24/23.98
	SDI (10-Bit 4:2:2 YCC)
	DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
	UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
	1080p: 60/59.94/50/30/29.97/25/24/23.98
	1080PsF: 30/29.97/25/24
	1080i: 60/59.94/50
	720p: 60/59.94/50
	576i: 50
	480i: 59.94
	SDI (10/12-Bit 4:4:4 RGB, YCC)
	DCI 4K: 30/29.97/25/24/23.98
	UHD 4K: 30/29.97/25/24/23.98
	HDMI (8-Bit 4:4:4/4:2:2 RGB, YCC)
	1080p: 60/59.94/50/30/29.97/25/24/23.98
	1080i: 60/59.94/50
	720p: 60/59.94/50
	576p: 50
	576i: 50
	480p: 60
	480i: 60
	HDMI (8/10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YCC)
	DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
	UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
Gamma Curve	ARRI Log C, Canon Log, HDR-HLG, Sony S-Log, Sony S-Log 2, Sony S-Log 3
Power
Input Power	12 to 24 VDC
Power Consumption	30 W
General
Operating Conditions	-4 to 104°F / -20 to 40°C
Storage Conditions	-22 to 122°F / -30 to 50°C
Dimensions	8.8 x 6.9 x 2.4" / 223 x 175 x 60 mm
	10.2 x 7.6 x 3.5" / 260 x 194.2 x 90 mm (Including Stand)
Weight	4.72 lb / 2.14 kg, Including Stand
