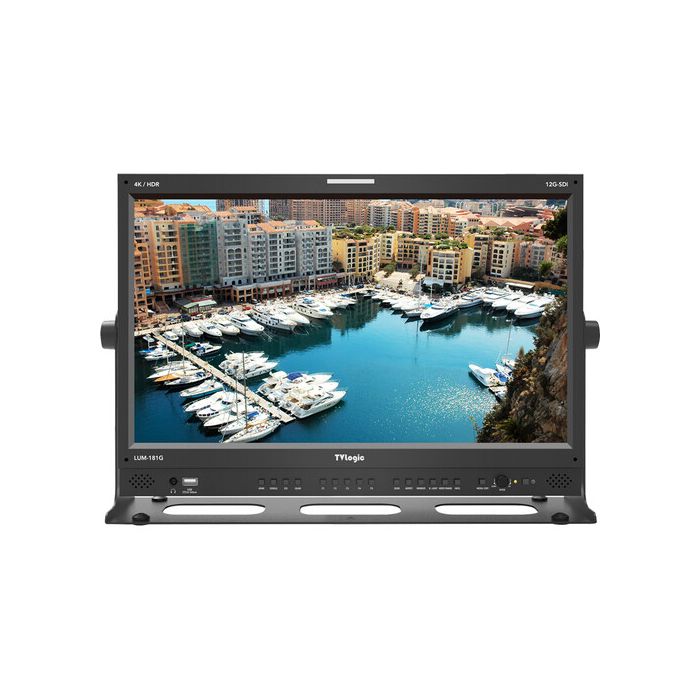

TVLogic LUM-181G 18.5'' 4K Input-Ready Monitor LCD Monitor

TVLogic LUM-181G 18.5'' 4K Input-Ready Monitor LCD Monitor

by TVLogic

Dostupnost: Isporuka 7-10 dana

SKU

TVL-LUM-181G

18.5" 1920 x 1080 LCD Monitor
4 x 12G-SDI Inputs, 1 x HDMI Input

5.623,75 € 4.499,00 €

Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sadržaj pakiranja

TVLogic 18.5" 4K Input-Ready SDI/HDMI LCD Monitor
AC Power Cord
Table Stand
Control Knob Cap
Carry Handle

Opis

Take SDI and HDMI video sources up to UHD 4K and output them to this 18.5" 4K Input-Ready SDI/HDMI LCD Monitor from TVLogic with up to four 12G-SDI sources for monitoring in the field. The SDI ports on the monitor, both the four inputs and the four outputs, support up to 12G-SDI and can perform as single-link or quad-link connections. The LUM-181G has a viewing angle of 178° and a maximum brightness of 500 cd/m² for increased visibility.

Onboard button controls allow you to adjust various image monitoring parameters from waveform to closed captioning. Control can also be achieved via the RS-422 connections or via remote control.

Features at a Glance

Supports PQ and HLG as HDR EOTF gamma
Select color standards among HD, UHD, DCI-P3, PQ, Dolby-PG, HLG, and preset values
Luma(Y') zone check
User aspect adjustable width and height display ratio
Electrical-Electrical Transfer Function to roll off highlights and shadows to balance the image
Precise color reproduction with wide color gamut
Waveform and vectorscope

Other Video Assist Functions

16-channel audio level meter
Focus assist
Marker
Timecode display
UMD display
Blue/mono only
Range error
Closed caption
H/V delay
Tally

Specifikacije

Display Size	18.5" / 47.0 cm
Native Resolution	1920 x 1080
Touchscreen	No
HDR Support	Yes
Video I/O	4x BNC (12G-SDI) Input
	4x BNC (12G-SDI) Output
	1x HDMI 2.0 Input
Media/Memory Card Slot	No
Video Format	HDMI
	DCI 2K
	1080p
	720p
	480p
	SDI
	UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
	DCI 2K: 60/59.94/50/48/47.95/30/29.97/25/24/23.98
	DCI 2K PsF: 30/29.97/25/24/23.98
	1080p: 60/59.94/50/30/29.97/25/24/23.98
	1080PsF: 30/29.97/25/24/23.98
	1080i: 60/59.94/50
	720p: 60/59.94/50
	576i: 50
	480i: 59.94
	Show Less
Battery	No
Power Consumption	85 W
Display
Panel Type	LCD
Display Size	18.5" / 47.0 cm
Native Resolution	1920 x 1080
Aspect Ratio	16:09
Viewing Angle	Horizontal: 178°
	Vertical: 178°
Touchscreen	No
Maximum Brightness	500 nits / cd/m2
Contrast Ratio	1000:01:00
Color Support	16.7 Million Colors (8-Bit)
HDR Support	Yes
LUT Support	Yes
Image Controls	Blue Only, Customizable Aspect Ratios, Focus Assist, H/V Delay, Image Flip, Vectorscope, Waveform
Inputs/Outputs
Video I/O	4x BNC (12G-SDI) Input
	4x BNC (12G-SDI) Output
	1x HDMI 2.0 Input
Audio I/O	1x 1/8" / 3.5 mm Input/Output
Built-In Speaker	Stereo
Power I/O	1x XLR 4-Pin (12 VDC) Input
	1x IEC Input
Other I/O	1x RJ45 (LAN) Input
	1x RJ45 (GPI)
	1x RJ45 (RS-422) Input
	1x RJ45 (RS-422) Output
	1x USB-A (Firmware) Input
Media/Memory Card Slot	No
Wireless
Wi-Fi	No
Bluetooth	No
Mobile App Compatible	No
Format Support
Video Format	HDMI
	DCI 2K
	1080p
	720p
	480p
	SDI
	UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
	DCI 2K: 60/59.94/50/48/47.95/30/29.97/25/24/23.98
	DCI 2K PsF: 30/29.97/25/24/23.98
	1080p: 60/59.94/50/30/29.97/25/24/23.98
	1080PsF: 30/29.97/25/24/23.98
	1080i: 60/59.94/50
	720p: 60/59.94/50
	576i: 50
	480i: 59.94
Power
Input Power	12 to 24 VDC
	100 to 240 VAC, 50 / 60 Hz
Battery	No
Power Consumption	85 W
Mounting
VESA Mounting-Hole Pattern	100 x 100 mm
General
Operating Conditions	32 to 95°F / 0 to 35°C
Storage Conditions	-4 to 140°F / -20 to 60°C
Dimensions	17.4 x 12.2 x 3.6" / 442.5 x 309 x 91.8 mm
	19.3 x 13.1 x 5.4" / 489.3 x 332.8 x 137.5 mm (Including Stand)
Weight	17.4 lb / 7.9 kg, Including Stand
