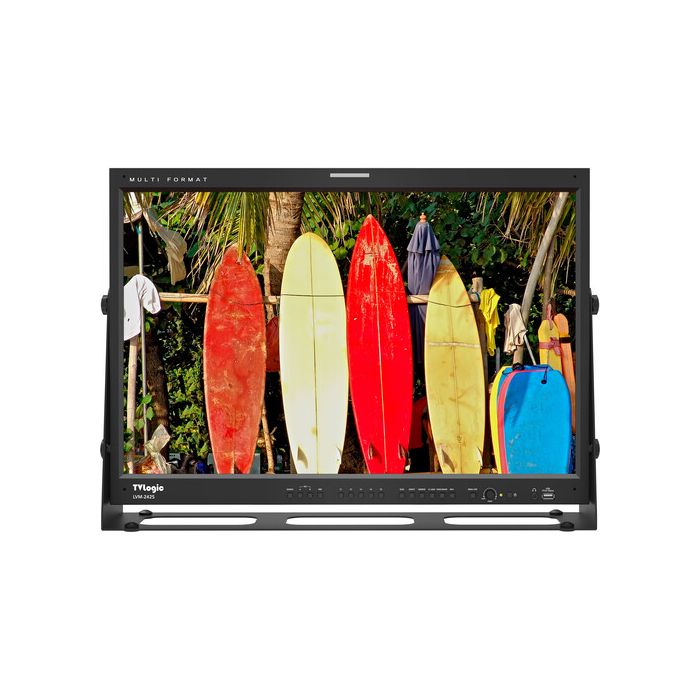

TVLogic LVM-242S 24'' 1920x1200 (true 10bit) QC-Grade Super-IPS LCD Monitor

TVLogic LVM-242S 24'' 1920x1200 (true 10bit) QC-Grade Super-IPS LCD Monitor

by TVLogic

Dostupnost: Isporuka 7-10 dana

SKU

TVL-LVM-242S

24" 1920 x 1200 LCD Monitor
2 x SDI, 1 x HDMI Inputs

5.993,75 € 4.795,00 €

Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sadržaj pakiranja

TVLogic 24" Full HD SDI/HDMI/Analog LCD Monitor
Camera Mount
Acrylic Filter
Rackmount Kit
Sun Hood
Handle
Table Stand
DC Power Adapter
AC Power Cord
HDMI Bracket
Carrying Case

Opis

This 24" Full HD SDI/HDMI/Analog LCD Monitor from TVLogic is designed for field monitoring applications thanks to its various input connections and full HD 24" display. Various input connectors, two SDI, one HDMI, three BNC, and one DVI-I, support up to 1080p full HD video. The LVM-242S has a maximum brightness of 400 cd/m² and monitor resolution of 1920 x 1200 for improved visibility.

Onboard button controls allow you to adjust various image monitoring parameters from waveform to closed captioning. Control can also be achieved via the RS-422 connections or via remote control. You even have the option to upload custom 3D LUTs and get a better idea of your final color grade.

Features at a Glance

Accurate color reproduction with wide color gamut ensures accurate color reproduction
Advanced color adjustment menus
EMBER+ protocol for easy control and interactive setting
Supports HDR-EOTFs of PQ, HLG, and S-Log3 for HDR content
Electrical-Electrical Transfer Function to roll off highlights and shadows to balance the image
Upload custom 3D LUT files
Picture-by-Picture functions
Fast mode minimizes de-interlacing time delay and improves quality of fast/fine details

Other Video Assist Functions

Timecode display
Waveform
Vectorscope
Marker
Focus assist
Luma(Y') zone check
Closed caption
16-channel audio level meter
Dynamic UMD display
Range error
Blue/mono only
Various scan modes

Specifikacije

Display Size	24.00" / 61.0 cm
Native Resolution	1920 x 1200
Touchscreen	No
HDR Support	Yes
Video I/O	2x BNC (3G-SDI) Input
	1x HDMI Input
	2x BNC (3G-SDI) Loop Output
	1x 3BNC (Component) Input
	1x 3BNC (Component) Output
	1x DVI-I Input
	Show Less
Media/Memory Card Slot	No
Video Format	DVI
	1080i: 60
	720p: 60
	480p: 60/50
	SDI
	DCI 2K: 24/23.98
	DCI 2K PsF: 24/23.98
	1080p: 60/59.94/50/30/29.97/25/24/23.98
	1080PsF: 30/29.97/25/24/23.98
	1080i: 60/59.94/50
	720p: 30/29.97/25/24/23.98
	576i: 50
	480i: 59.94
	HDMI
	1080p: 60
	1080i: 60
	720p: 60
	576p: 50
	576i: 50
	480p: 60
	480i: 60
	Show Less
Battery	No
Display
Panel Type	IPS-Type LCD
Display Size	24.00" / 61.0 cm
Native Resolution	1920 x 1200
Aspect Ratio	16:10
Viewing Angle	Horizontal: 178°
	Vertical: 178°
Touchscreen	No
Maximum Brightness	400 nits / cd/m2
Contrast Ratio	1800:01:00
Color Support	1.07 Billion Colors (10-Bit)
HDR Support	Yes
LUT Support	Yes
Image Controls	Blue Only, Focus Assist, Focus Peaking, H/V Delay, Overrange Detection, Screen Markers, Underscan, Vectorscope, Waveform, Zebra
Inputs/Outputs
Video I/O	2x BNC (3G-SDI) Input
	1x HDMI Input
	2x BNC (3G-SDI) Loop Output
	1x 3BNC (Component) Input
	1x 3BNC (Component) Output
	1x DVI-I Input
Audio I/O	1x 1/8" / 3.5 mm Input
	1x 1/8" / 3.5 mm Headphone Output
Built-In Speaker	No
Other I/O	1x RJ45 (GPI)
	1x RJ45 (LAN)
	2x RJ45 (RS-422) Input/Output
	1x USB-A 2.0
Media/Memory Card Slot	No
Wireless
Wi-Fi	No
Bluetooth	No
Mobile App Compatible	No
Format Support
Video Format	DVI
	1080i: 60
	720p: 60
	480p: 60/50
	SDI
	DCI 2K: 24/23.98
	DCI 2K PsF: 24/23.98
	1080p: 60/59.94/50/30/29.97/25/24/23.98
	1080PsF: 30/29.97/25/24/23.98
	1080i: 60/59.94/50
	720p: 30/29.97/25/24/23.98
	576i: 50
	480i: 59.94
	HDMI
	1080p: 60
	1080i: 60
	720p: 60
	576p: 50
	576i: 50
	480p: 60
	480i: 60
Gamma Curve	HDR-HLG, HDR-PQ, Sony S-Log 3
Power
Input Power	12 to 24 VDC
	100 to 240 VAC, 50 / 60 Hz
Battery	No
General
Dimensions	21.8 x 15.3 x 3.9" / 552.5 x 389 x 98.5 mm
	23.1 x 16.4 x 5.9" / 586 x 416.8 x 150 mm (Including Stand)
Weight	23.55 lb / 10.68 kg
