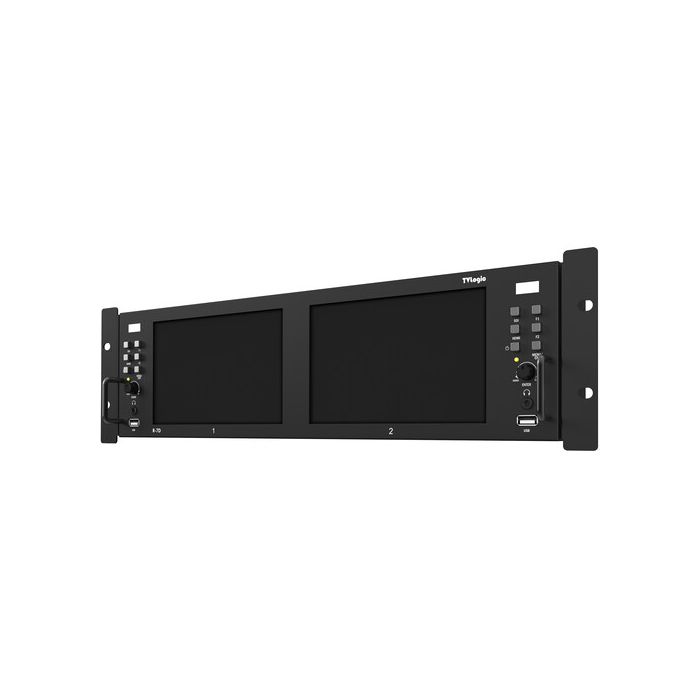

TVLogic R-7D Dual LCD UHD-4K Ready Rack Mount

by TVLogic

Dostupnost: Isporuka 7-10 dana

SKU

TVL-R-7D

Two 7" 1920 x 1200 IPS Displays
12G-SDI, 3G-SDI & HDMI Inputs/Outputs

5.493,75 € 4.395,00 €

Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sadržaj pakiranja

TVLogic Dual 7" LCD UHD 4K Ready Rackmount Monitors
Power Cable
Power Adapter
Rackmount Kit

Opis

Featuring two 7" displays in a slim 3 RU design, the Dual 7" LCD UHD 4K Ready Rackmount Monitors from TVLogic are designed to provide efficient broadcast monitoring of up to two 1080p60 signals. The R-7D has 12G-SDI, 3G-SDI, and HDMI inputs and outputs per display as well as 3.5mm headphone output and a USB input for firmware and 3D LUT import for each panel. Each 7" display features a 1920 x 1200 resolution, a wide 160° viewing angle, and they can monitor up to UHD 4K60 video resolutions.

Built-in image analysis functions include HDR emulation, 1:1 scan modes, waveform, vectorscope, delay, zone check, a 16-channel audio meter, and timecode display. A 4-pin XLR power input is provided on the rear, and a 12 VDC power adapter is included. A rackmount kit is included to mount the dual monitors onto a standard rack.

Key Features

Two 7" 1920 x 1200 resolution displays in an ultra-slim 3 RU design
12G-SDI, 3G-SDI, and HDMI/O
Up to UHD 4K60 signal input
160° viewing angle
500 cd/m² brightness
1200:1 contrast ratio
Headphone outputs
USB inputs for 3D LUT import
4-pin XLR power input
12 VDC power adapter included
Rackmount kit included

Image Analysis Tools

1:1 Scan Modes for HD/SD
HDR emulation (PQ, HLG, SLog 3)
Waveform
Vectorscope
Audio level meter
H/V delay
Luma zone check
Timecode display
Customizable aspect ratios
Scan modes

Specifikacije

Display Size	7.0" / 17.8 cm
Native Resolution	1900 x 1200
Touchscreen	No
HDR Support	Yes: Hybrid Log Gamma
Video I/O	1x BNC (12G-SDI) Input
	1x BNC (3G-SDI) Input
	1x HDMI (Unspecified Signal) Input
	1x BNC (12G-SDI) Loop Output
	1x BNC (3G-SDI) Loop Output
	Show Less
Media/Memory Card Slot	No
Video Format	HDMI/SDI
	UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
	DCI 2K: 60/59.94/50/30/29.97/25/24/23.98
	1080PsF: 30/29.97/25/24/23.98
	1080p: 60/59.94/50/30/29.97/25/24/23.98
	720p: 60/59.94/50
	576i: 50
	480i: 59.94
	Show Less
Battery	No
Power Consumption	22 W
Display
Panel Type	LCD
Display Size	7.0" / 17.8 cm
Native Resolution	1900 x 1200
Aspect Ratio	16:10
Viewing Angle	Horizontal: 160°
	Vertical: 160°
Touchscreen	No
Maximum Brightness	500 nits / cd/m2
Contrast Ratio	1200:01:00
Color Support	16.7 Million Colors (6-Bit+FRC)
HDR Support	Yes: Hybrid Log Gamma
Image Controls	Check Field, Customizable Aspect Ratios, Vectorscope, Waveform
Inputs/Outputs
Video I/O	1x BNC (12G-SDI) Input
	1x BNC (3G-SDI) Input
	1x HDMI (Unspecified Signal) Input
	1x BNC (12G-SDI) Loop Output
	1x BNC (3G-SDI) Loop Output
Embedded Audio	HDMI/SDI
Audio I/O	2x 1/8" / 3.5 mm Headphone Output
Built-In Speaker	No
Power I/O	1x XLR 4-Pin (1.85 A / 12 VDC) Input
Other I/O	2x USB-A 2.0 Input
Media/Memory Card Slot	No
Wireless
Wi-Fi	No
Bluetooth	No
Mobile App Compatible	No
Format Support
Video Format	HDMI/SDI
	UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
	DCI 2K: 60/59.94/50/30/29.97/25/24/23.98
	1080PsF: 30/29.97/25/24/23.98
	1080p: 60/59.94/50/30/29.97/25/24/23.98
	720p: 60/59.94/50
	576i: 50
	480i: 59.94
Power
Input Power	12 VDC at 1.85 A
Battery	No
Power Consumption	22 W
Mounting
Rack Form Factor	3 U
General
Operating Conditions	32 to 104°F / 0 to 40°C
Storage Conditions	-4 to 140°F / -20 to 60°C
Dimensions	16.9 x 5.2 x 2" / 430 x 132 x 50.5 mm (Excluding Bracket)
	18.9 x 5.2 x 2.9" / 480.8 x 132 x 73 mm (Including Bracket)
Weight	5.42 lb / 2.46 kg
Packaging Info
Package Weight	8.615 lb
Box Dimensions (LxWxH)	22.1 x 11.2 x 7.1"
