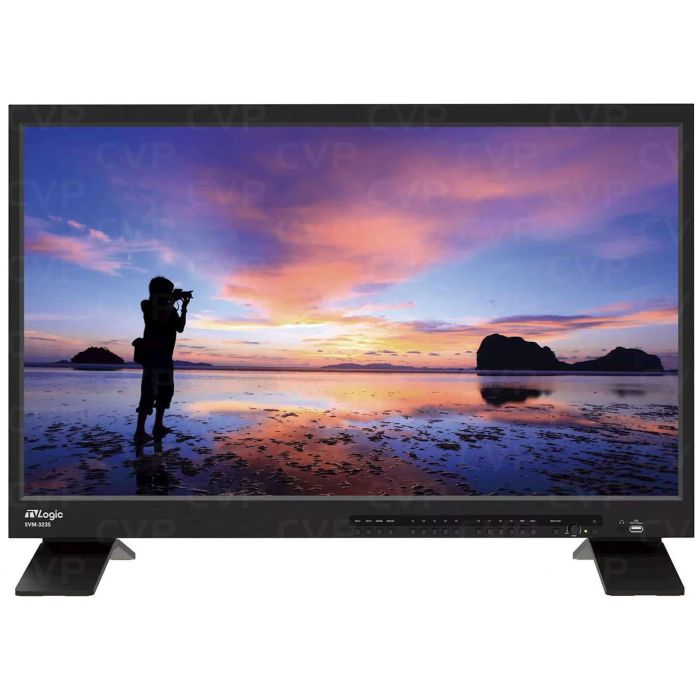

TVLogic SVM-323S 31.5'' 12G-SDI with Full HD LCD Monitor

TVLogic SVM-323S 31.5'' 12G-SDI with Full HD LCD Monitor

by TVLogic

Dostupnost: Isporuka 7-10 dana

SKU

TVL-SVM-323S

2 x 12G-SDI Input and Loopout
Dual SFP Input

5.873,75 € 4.699,00 €

Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sadržaj pakiranja

TVLogic SVM-323S 31.5" 12G-SDI with Full HD LCD Monitor

Opis

TVLogic SVM-323S is a 31.5" Full HD monitor with a display resolution of 1920 x 1080 and support for 1.073 billion colours. It features 2 x 12G-SDI inputs and loopout, dual SFP input, HDMI 1.4 input, and processed monitor output. The monitor also supports HDR (PQ, HLG, S-LOG3), various colour spaces, custom 3D LUT import, built-in camera LUTs, waveform, vector scope, histogram, audio level meter, audio phase meter, and colour settings save & apply.

TVLogics SVM-323S reflects their commitment to cutting-edge broadcast monitoring solutions, with precise image reproduction, high signal integrity, and robust support for 12G-SDI workflows. The monitor also features auto detection of SDI payload ID, making it a versatile and advanced option for professional broadcast monitoring needs.

The SVM-S is an 31.5” Full HD monitor that delivers precise image reproduction, high signal integrity, and robust support for 12G-SDI workflows, reflecting TVLogic’s continued commitment to cutting-edge broadcast monitoring solutions.

Specifikacije

Size	31.5”
Resolution	1920 x 1080 (16:9)
Pixel Pitch	0.363(H) x 0.363(V) mm
Color Depth	16.7M Colors
Viewing Angle	178°(H) / 178°(V)
Brightness	400cd/m2
Contrast Ratio	1200:01:00
Display Area	698(H) x 393(V) mm
Input
2 x BNC	12G/6G/3G/HD/SD-SDI A/B Input
3 x BNC	YPbPr, CVBS Input
1 x HDMI	HDMI Input
2 x SFP	SFP A/B Channel Input
1 x BNC	Reference Input
Output
2 x BNC	12G/6G/3G/HD/SD-SDI A/B Channel Output
3 x BNC	YPbPr, CVBS Output
1 x BNC	Processed Output
SDI Input Signal Formats
SMPTE ST 2082	2160(60/50/30/25/24p)
SMPTE ST 2081	2160(30/25/24p)
SMPTE ST 2036-1:2009	2160(23.98/24/25/29.97/30/50/59.94/60p)
SMPTE-425M-A/B	1080p(60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)
	1080i(60/59.94/50)
SMPTE-274M	1080i(60/59.94/50)
	1080p(30/29.97/25/24/24sF/23.98/23.98sF)
SMPTE-296M	720p(60/59.94/50)
SMPTE-260M	1035i(60/59.94)
SMPTE-125M	480i(59.94)
ITU-R BT.656	576i(50)
SMPTE ST 2048-2:2011	2048x1080(23.98/24/25/29.97/30p/psf, 47.95/48/50/59.94/60p)
Remote Control & Update
1 x LAN	RJ-45 Input (Ethernet), Firmware Update & Remote Control
1 x REMOTE	RJ-45 Input, GPI Control
2 x RS-422	RJ-45 Input & Output, Monitor Control by TVLogic Protocol or TSL Protocol
1 x USB	USB A type, Firmware Update
General
Audio In	Analog Stereo (Phone Jack)
Audio Out	Internal Stereo Speakers, Analog Stereo (Phone Jack)
Power	AC100240V(50-60Hz)
Power Consumption	TBD
Operating Temperature	0°C to 35°C (32°F to 95°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Dimensions	Main Body: 733.4 x 464.1 x 84.7 (mm)
	28.87 x 18.27 x 3.33 (inch)
	With Stand: 733.4 x 512.6 x 245 (mm)
	28.87 x 20.18 x 9.64 (inch)
	Shipping Box: 920 x 360 x 790 mm
	36.22 x 14.17 x 31.10 inch
	Weight (with stand): 13.6kg / 29.98lbs
Basic Accessories	AC Power Cord, Stand, Handle
Optional Accessories	–
