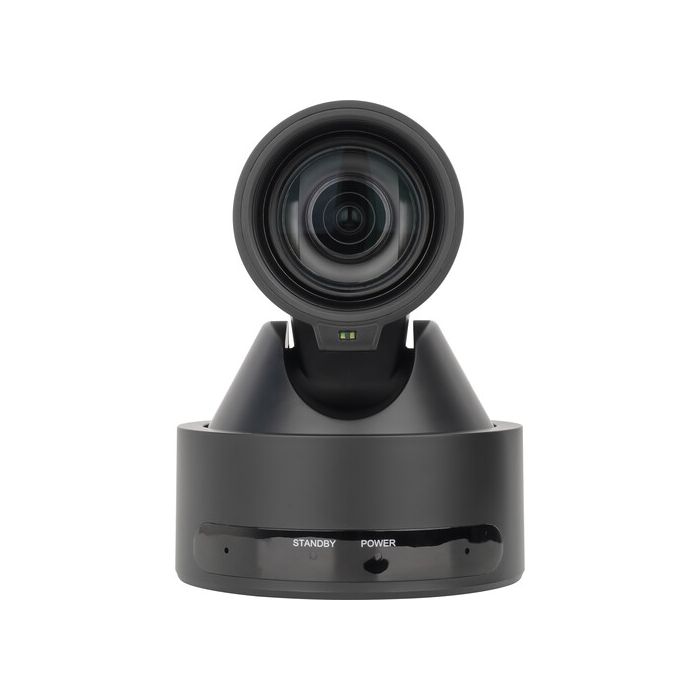

YoloLiv Verticam PTZ Camera

by YoloLiv
Raspoloživost: Isporuka 7-10 dana

1080p60 USB-B/HDMI PTZ Camera
Captures Vertical Image for Social Media
For Live Streaming, Conferences, Events
Compatible with YoloBox
12x Optical Zoom, 16x Digital Zoom

786,25 €/5.924,00kn 629,00 €/4.739,20kn
Tečaj konverzije: 1 EUR = 7,53450 HRK

Sadržaj pakiranja

  • YoloLiv Verticam PTZ Camera

If you want to add high-definition PTZ cameras to your already existing YoloBox setup, the YoloLiv Verticam 1080p Vertical Live Streaming PTZ Camera with 12x Optical Zoom can integrate seamlessly into your setup. The camera is easy to set up, and you can add more cameras, if needed, to provide a scalable production setup for live streams, conferences, events, education, and house of worship services.

Vertical Streaming

The Verticam captures a vertical image suitable for social media sites such as Instagram and TikTok.

Professional Image Quality

The 1/2.8" CMOS sensor captures up to 1080p60 video with noise reduction, backlight compensation, and enhanced low-light performance, and 4:2:2 10-bit pro color. The camera features a 12x optical zoom, a 16x digital zoom, and a 72.5° field of view to capture a wide area.
HDMI and USB Output
The camera outputs via USB-B and HDMI ports for easy output to a YoloBox for live streaming. You can also add analog audio to the stream using the 3.5mm line input.

Multiple Preset Positions

You can switch your camera positions easily with stored presets. Store and recall 255 specific pan/tilt/zoom positions quickly with your camera. Other features include instantaneous autofocus for panoramas and close-ups.

Remote Control

The camera support a wide rotation range of ±170° horizontally and of 30~+90° vertically. It can be controlled using its RS-232 I/O ports along with a separately available controller, which makes is ideal for a single operator.

Shutter Type Electronic Global Shutter
Shutter Speed 1/30 to 10,000 Seconds
Signal-to-Noise Ratio 55 dB
Minimum Illumination 0.5 Lux
Focal Length 3.5 to 42.3mm
Optical Zoom Ratio 12x
Max Digital Zoom 16x
Field of View Horizontal: 72.5°
Maximum Aperture f/1.8 to 2.8
Video Capture
External Recording Modes 4:2:2 10-Bit via HDMI / USB
  HD (1920 x 1080p) at 25/29.97/50/60.00 fps
  HD (1280 x 720) at 50/60.00 fps
Embedded Audio HDMI/
Broadcast Output NTSC/PAL
Presets 255 via RS-232
Move Speed Tilt: 0.44 to 15°/sec
  Pan: 1.61 to 75.56°/sec
Movement Range Pan: 340° (-170 to 170°)
  Tilt: 120° (-30 to 90°)
Tally Light Yes
Supported Control Protocols Pelco-D
Video I/O 1 x HDMI 1.4b Output
  1 x USB-B Output
Audio I/O 1 x 1/8" / 3.5 mm TRS Stereo Line Input
Other I/O 1 x D-Sub 8-Pin (RS-232) Control Input
  1 x D-Sub 8-Pin (RS-232) Control Output
Power I/O 1 x DC (12 VDC) Input
Power Consumption Device: 12 W
Operating Temperature 14 to 104°F / -10 to 40°C
Storage Temperature -40 to 140°F / -40 to 60°C
Dimensions (W x H x D) 6.2 x 4.8 x 4.8" / 157 x 121.2 x 121.2 mm
Weight 2.2 lb / 1 kg
Packaging Info
Package Weight 5.805 lb
Box Dimensions (LxWxH) 10.9 x 8.5 x 6"
