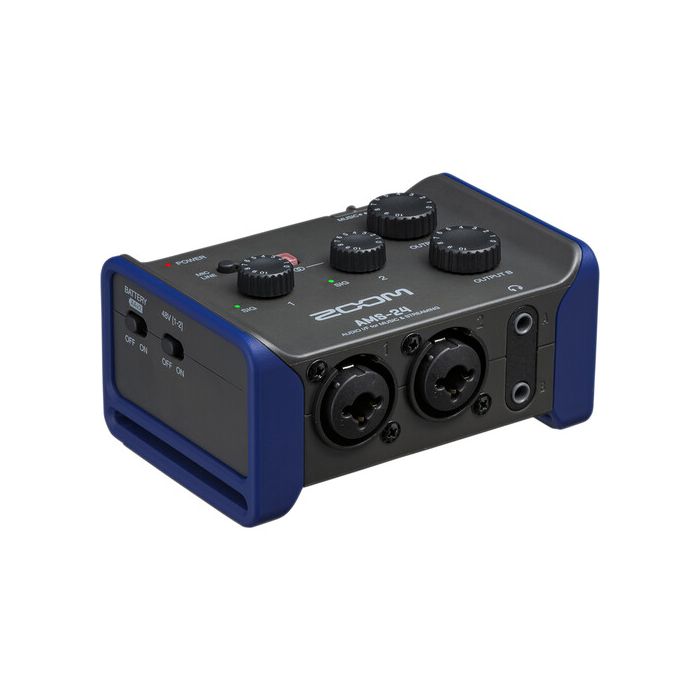

Zoom AMS-24
by ZoomTwo TRS/XLR Combo Inputs
Two 1/4" TRS Outputs
Two 3.5mm Headphone Jacks
48V Phantom Power for Microphones
Up to 24-Bit / 96 kHz Recordings
Direct Monitoring and Loopback Function
Power: USB, AA Batteries, or AC Adapter
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
- Zoom AMS-24 2x4 USB Audio Interface for Music and Streaming
- USB Type-C Cable
2 TRS/XLR Inputs, 2 TRS Outputs, and 2 Headphone Jacks
Perfect for mobile recording or streaming, the AMS-24 includes two XLR/TRS combo inputs. It also includes two 3.5mm headphone outputs and two TRS outputs for external monitors.
Switch Between Music and Streaming Modes
Use the AMS series with any device, and integrate seamlessly with commonly used software, apps, and platforms thanks to its support for Mac and PC computers along with iOS and Android devices. In Streaming mode, all inputs are combined into a single signal, so you can easily stream without needing additional complicated software. In Music mode, you can record into your DAW with expanded input and output routing options.
Quick Control
With onboard hardware switches, the AMS-24 is designed to simplify common streaming challenges without the need for additional software. Intuitive knobs allow you to control input gain and monitoring levels. Group the two inputs together using the Stereo switch.
Onboard Monitoring
Use the Direct Monitor switch to directly send the input signal to your headphones while routing the same signal to your DAW or streaming software.
Loopback
The Loopback Switch combines the input audio with playback from your computer and routes it to your streaming software. This is perfect for adding background music to your stream or singing live with an instrumental track.
Form Factor | Desktop |
Display | None |
Channels of I/O | Analog: |
2 Inputs / 2 Outputs | |
Maximum Sampling Rate | 96 kHz / 24-Bit |
Number of Microphone Preamps | 2 Preamps |
Built-In Microphone | None |
Input Level Adjustment | 2 x Knob |
Expansion Slots | None |
Pad | None |
Gain/Trim Range | +8 to +54 dB |
High-Pass Filter | None |
Analog Audio I/O | 1 x Combo XLR-1/4" 3-Pin Balanced/Unbalanced Mic/Line/Hi-Z Input |
1 x Combo XLR-1/4" 3-Pin Balanced/Unbalanced Mic/Line Input | |
2 x 1/4" TRS Balanced Line Output | |
Phantom Power | 48 V, Selectable On/Off |
Digital Audio I/O | None |
Host Connection / USB | 1 x USB Type-C |
Host Connection Protocol | USB 2.0 |
USB (Non-Host) | None |
Sync I/O | None |
Network I/O | None |
MIDI I/O | None |
Wireless Connectivity | None |
Frequency Response | 20 Hz to 20 kHz +0/-2 dB (at 44.1 kHz) |
20 Hz to 40 kHz +0/-3 dB (at 96 kHz) | |
Maximum Input Level | Combo XLR-1/4" Mic Inputs: |
+6 dBu | |
Combo XLR-1/4" Line Inputs: | |
+22 dBu | |
Hi-Z: | |
+8.5 dBu | |
Maximum Output Level | 1/4" Line Outputs: |
+10 dBu at 0 dBFS | |
Headphone Output Power | 1/8" / 3.5 mm: 30 mW per Channel into 32 Ohms |
Impedance | Mic Inputs: |
2.7 Kilohms | |
Line Inputs: | |
18 Kilohms | |
Hi-Z Inputs: | |
330 Kilohms | |
Line Outputs: | |
100 Ohms | |
Headphone Outputs: | |
10 Ohms | |
EIN | ≤ -120 dBu (150-Ohm Source) |
Sample Rates | 44.1 / 48 / 88.2 / 96 kHz |
Sample Rate Conversion | None |
Bit Depths | 24-Bit |
Memory Card Slot | None |
OS Compatibility | Windows |
macOS | |
Included Software | None |
Power Requirements | AC/DC Power Adapter (Not Included), USB Bus Power |
AC/DC Power Adapter | 5 VDC (Not Included) |
Current Consumption | 380 mA |
Battery Type | 2 x AA |
Approximate Battery Life | 4 Hours (Alkaline, 32-Ohm Load, Phantom Off) |
Dimensions | 3.7 x 2.9 x 1.8" / 94.5 x 74 x 46 mm |
Weight | 4.7 oz / 134.0 g |
Package Weight | 0.695 lb |
Box Dimensions (LxWxH) | 6.9 x 6.1 x 2.4" |
