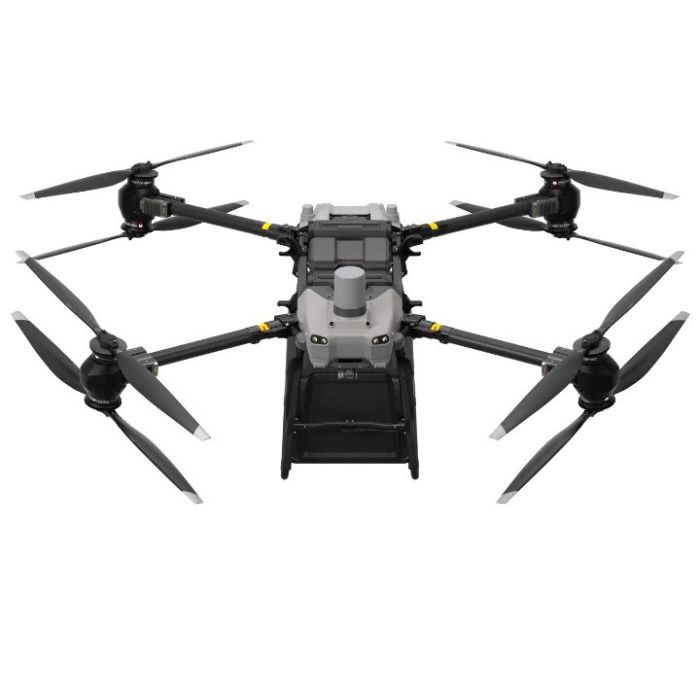

DJI FlyCart 30
by DJIDJI FlyCart 30 is here to deliver the goods. A long-distance heavy lifter with powerful signal and intelligence, DJI FlyCart 30 supports Cargo mode and Winch mode and ascends beyond traditional logistical limits to deliver a safe, economical, and efficient air transport solution.
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.

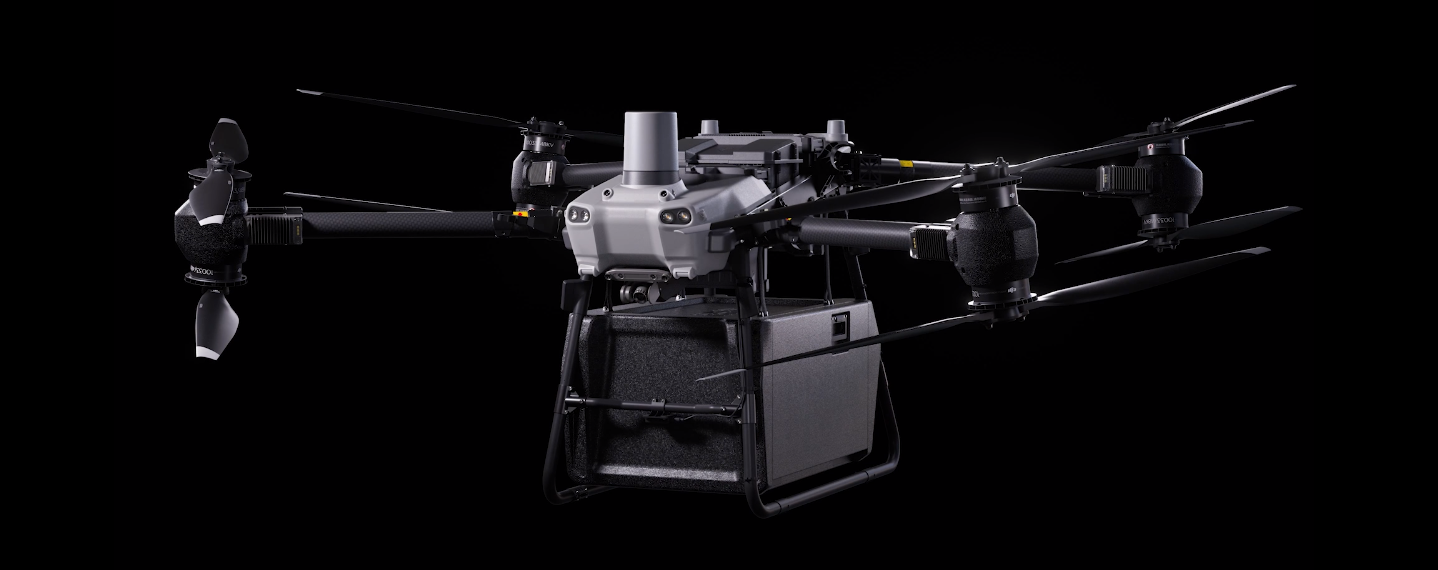

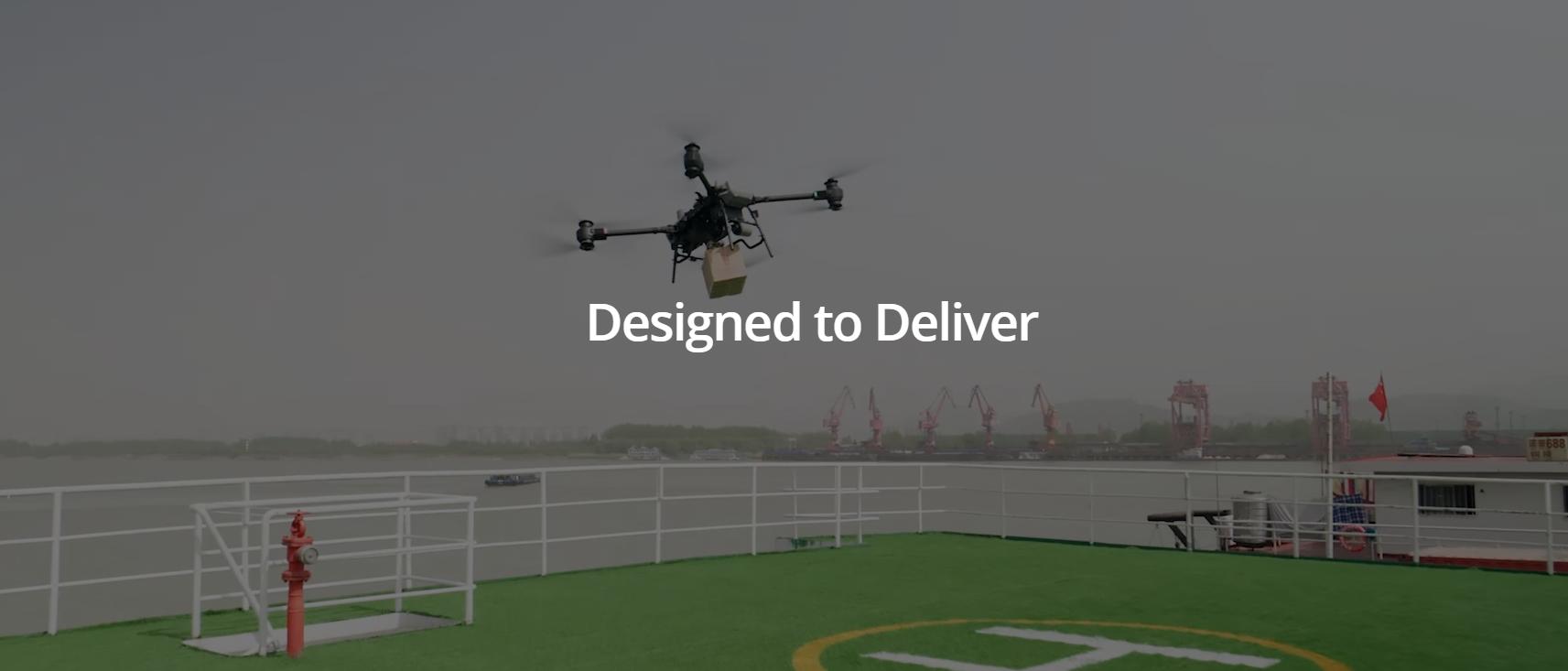

DJI FlyCart 30 is here to deliver the goods. A long-distance heavy lifter with powerful signal and intelligence, DJI FlyCart 30 supports Cargo mode and Winch mode and ascends beyond traditional logistical limits to deliver a safe, economical, and efficient air transport solution.
Heavy Payloads, Long Distances
30 kg Max Payload
28 km Flight Distance Without Payload
16 km Flight Distance with Full Payload
20 m/s Max Speed
The first three indicators are measured in dual battery mode
Built for Extremes
6,000 m Max Flight Altitude
-20° to 45° C (-4° to 113° F) Operating Temperature
12 m/s Max Wind Speed Resistance
Strong Signal
20 km Video Transmission with O3
4G Enhanced Video Transmission
Dual Operator Mode
High-Resolution FPV Gimbal Camera
Advanced Safety and Intelligence
IP55 Protection and Corrosion Resistance
Radars, Binocular Vision, Intelligent Obstacle Sensing
Dual Batteries and Parachute
Convenient Configurations
Foldable
70 L EPP Case
Winch System
Fully-Automatic Operations
DJI Pilot 2
DJI DeliveryHub
Health Management System
Send What's Needed, Where It's Needed
Heavy payload capacity and long flight distance overcome logistical limitations fornext-generation delivery.
30kg
Max Payload (Dual Batteries)
40kg
Max Payload (Single Battery)
28km
Max Flight Distance Without Payload (Dual Batteries)
16km
Max Flight Distance with Full Payload (Dual Batteries)
20m/s
Max Flight Speed
(with Carbon Fiber Propellers)
15m/s
Cruising Speed
All-Weather Performance
Withstand round-the-clock operations across extreme altitudes and weather conditions.
6,000 m
Max Flight Altitude
-20° to 45° C (-4° to 113° F)
Operating Temperature
IP55
Protection Rating
12 m/s
Max Wind Speed Resistance
Deliver With Safety and Reliability
Ensured safety from takeoff to landing.
Alternate Landing Site Settings
Set multiple alternate landing sites for safe landing in case of an emergency.
Takeoff and Landing Protection
Mltiple features assure safe takeoff and landing, including sound and light prompts, a 6s delay of propeller rotation, and secondary confirmation of landing. Integrate an RTK module to achieve centimeter-level positioning to further improve takeoff and landing safety.
Integrated Parachute
In case of an emergency, the integrated parachute can open in low altitude and land the drone stably, reducing risk to people and property. The parachute has its own self-check upon startup, an independent power supply, sound and light alerts, and propellers stop rotation before opening.
Intelligent Obstacle Sensing
DJI FlyCart 30 is equipped with Front and Rear Phased Array Radars and a dual Binocular Vision system to achieve Intelligent Multidirectional Obstacle Sensing. A built-in ADS-B signal receiver detects and warns of nearby crewed aircraft.

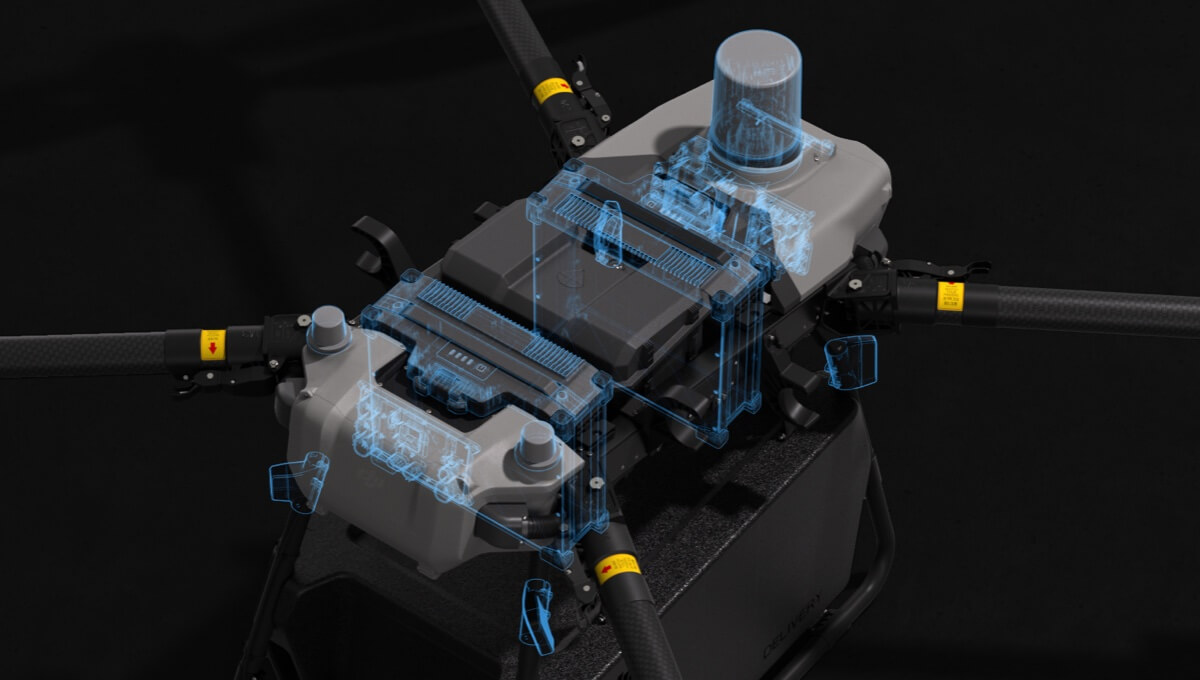

Multi-Level Redundancy
DJI FlyCart 30 is designed with high redundancy to guarantee flight safety even in harsh environments.
Powered by a dual battery system, if a single battery fails during flight, the other battery will keep the drone flying and ensure a safe return.
Strong Signal, Stable Transmission
DJI FlyCart 30 supports DJI O3 video transmission over up to 20 km.
Its four-antenna transceiver system intelligently selects the optimal antenna to transmit signals and enhance anti-interference capabilities. Bolster connection and stability with a DJI Cellular Dongle[15] which can work in tandem with DJI O3 video transmission. If O3 video transmission experiences interferrence, the 4G network can maintain signal stability and video transmission, improving flight safety even in complex environments.
Built Ready for Harsh Environments
IP54 Protection
Water and dust resistant
-20° to 50° C (-4° to 122° F)
Capable in extreme environments
Stable Video Transmission and Long Battery Life
20 km Four-Antenna O3 Video Transmission
Intelligently selects the optimal antenna to transmit signals for more stable video transmission.
4G Enhanced Video Transmission

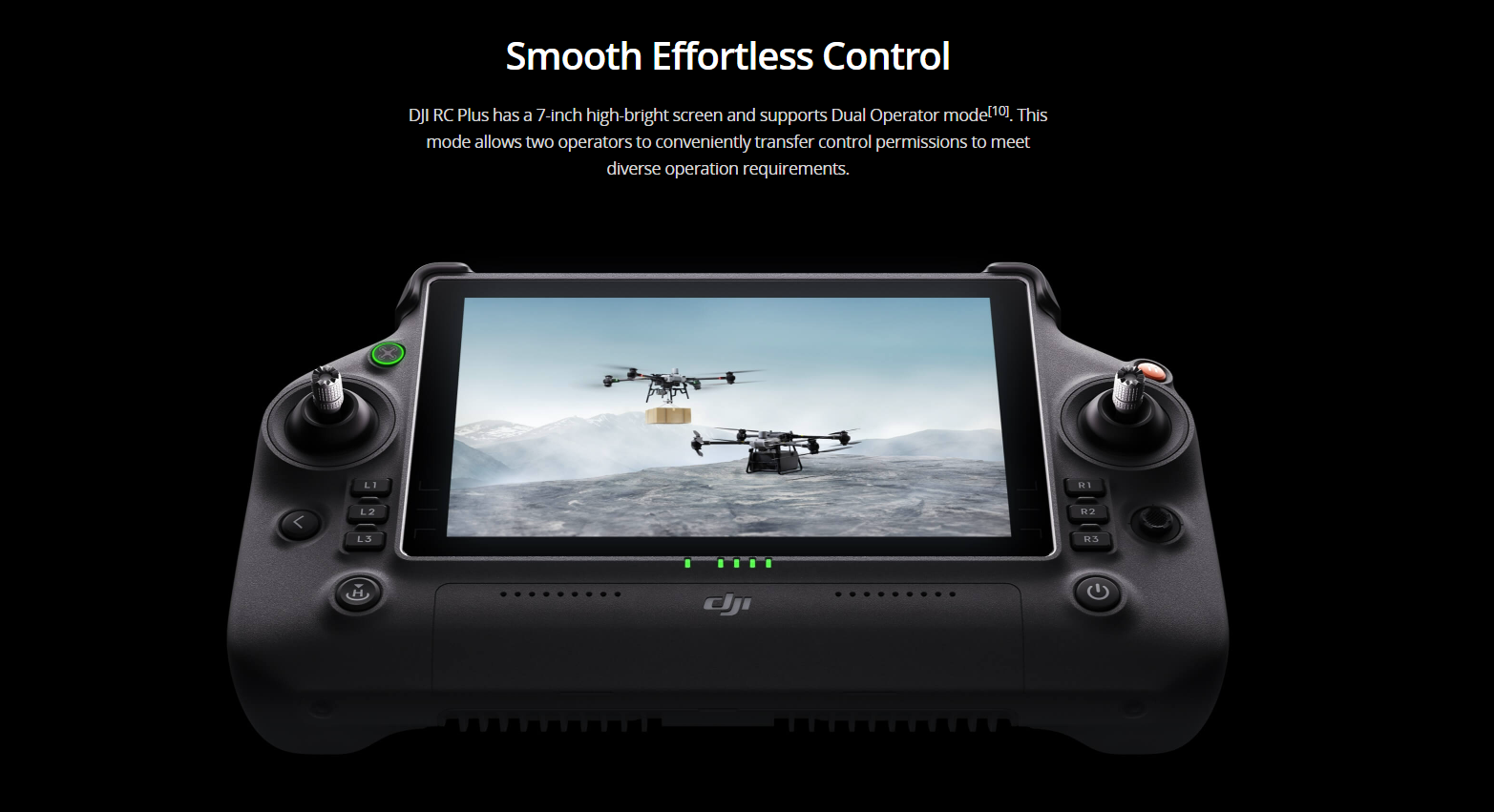

The remote controller can connect to Wi-Fi or connect to a mobile network by using a DJI Cellular Dongle[15] to achieve 4G enhanced video transmission.
6-Hour Long Battery Life
Internal and external battery configuration powers the controller for 6 hours and enables hot-swapping for seamless, uninterrupted flight operations.
Internal and external battery configuration powers the controller for 6 hours nd enables hot-swapping for seamless, uninterrupted flight operations.

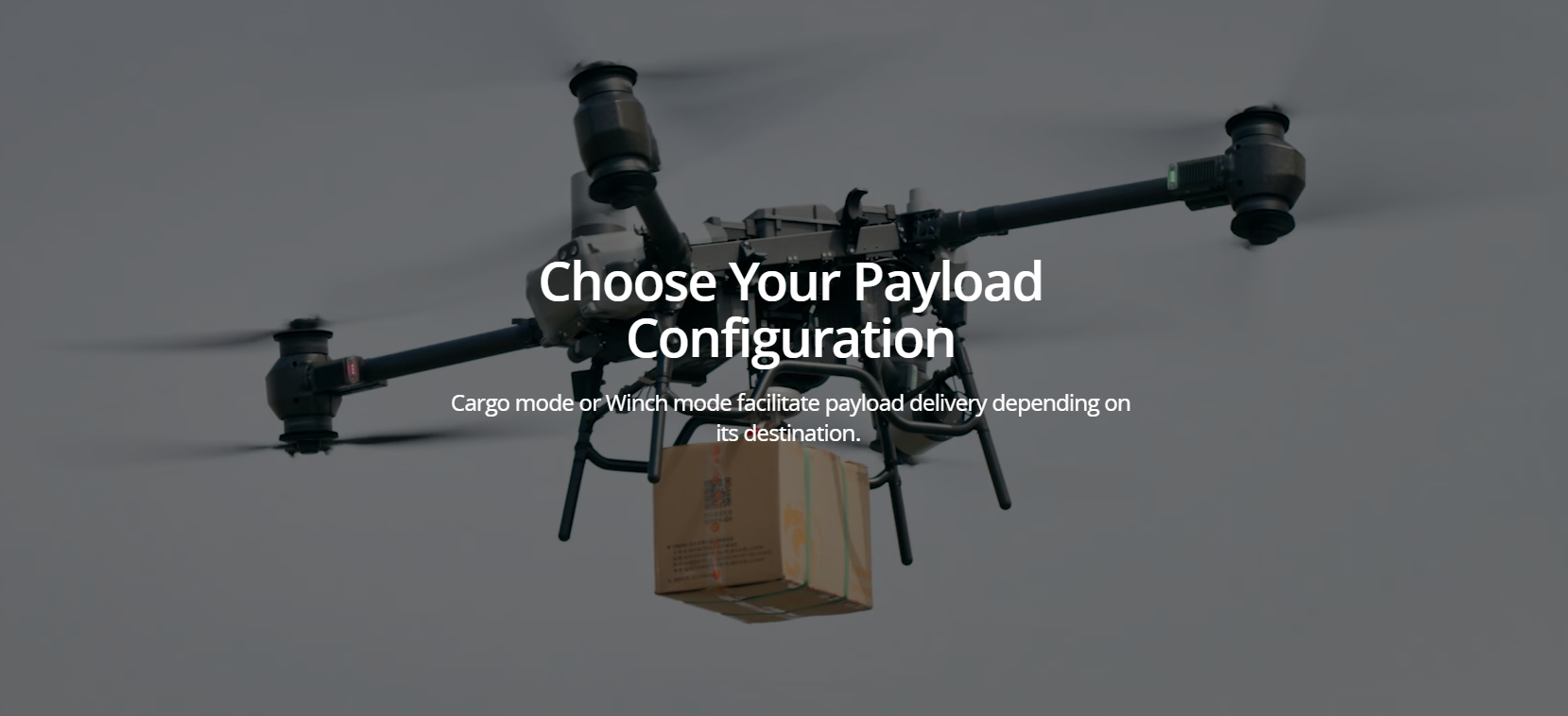

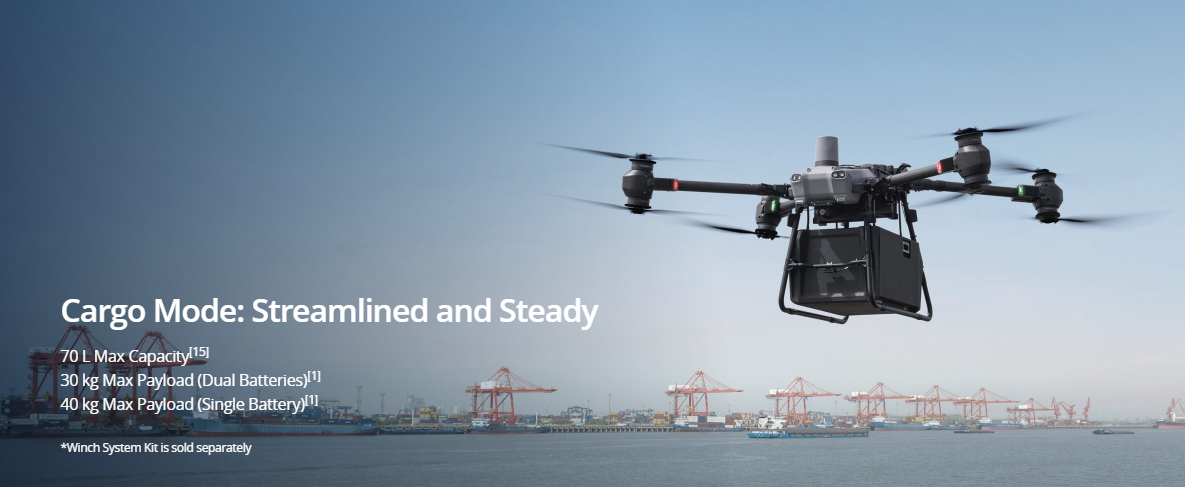

DJI FlyCart 30 comes standard with an EPP case that supports easy loading and unloading.
Weight and center-of-gravity detection ensures balanced cargo loading for safe and stable flight.

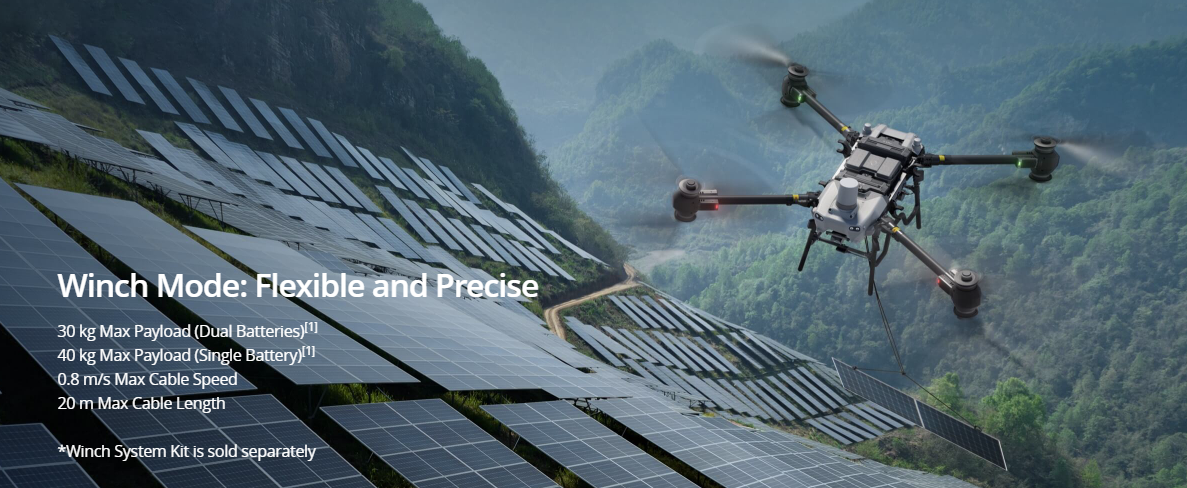

Winched cargo is delivered by a retractable cable which can be controlled either manually or automatically. Cargo releases automatically upon touchdown and does not require manual detachment, ensuring safe and precise delivery.
DJI FlyCart 30 can intelligently adjust its attitude to minimize cargo swing and improve stability. For extreme situations where hanging cargo gets trapped or tangled, you have the option to heat and cut the winch cable, freeing the drone.
One-Stop Solution for Drone Delivery
DJI Pilot 2 and DJI DeliveryHub provide a powerful, efficient, and flexible one-stop solution for drone delivery management.
Simplified Delivery at Your Fingertips
DJI Pilot 2 displays real-time flight status, cargo status, and other interactive interfaces for efficient and safe operation with DJI FlyCart 30.
Real-Time Flight Safety Alerts
Check battery level, power status, and mileage in real time, and monitor the reachability of the destination point to ensure operation safety.
Intelligent Assistance for Elevated Efficiency
Delivery Mode
Cruise Control
Real-Time Terrain Sensing
AR Projection
Route Recording

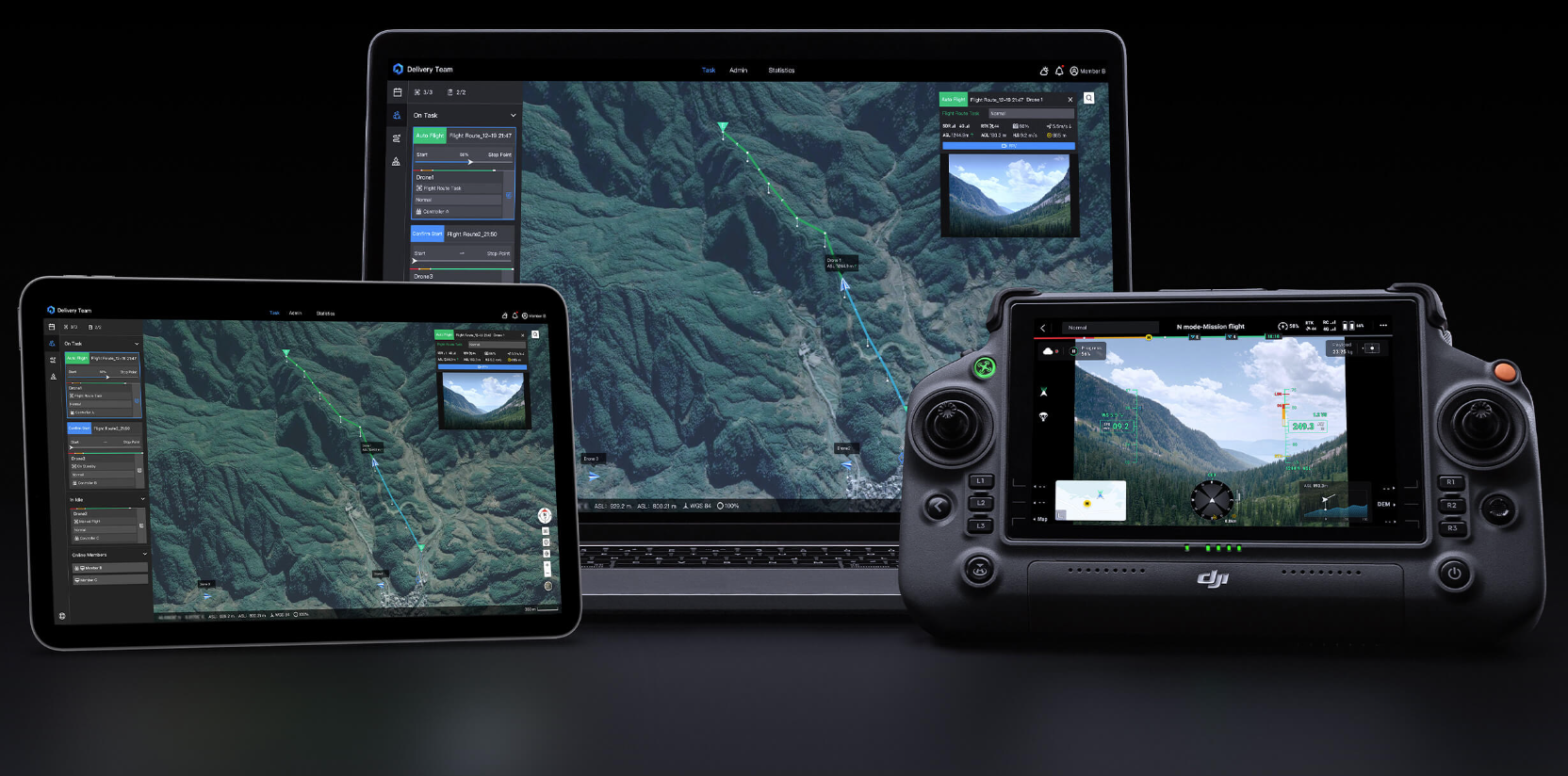

Collaborate Across Multiple Terminals
DJI DeliveryHub is a one-stop air delivery management platform. It facilitates efficient operation planning, comprehensive operation status monitoring, centralized team resource management, and data collection and analysis.
Task Planning and Execution
Remotely create, schedule, and allocate tasks and devices.
Confirm safety check and one-tap takeoff.
Increase efficiency and automatically perform scheduled delivery tasks based on recorded flight routes.
Comprehensive Status Monitoring
Track drones and task status on a 2.5D Base Map.
Live view directly from the drone's high resolution FPV gimbal camera to see the surrounding flight environment.
Receive alerts for abnormalities and take manual control to ensure flight safety.
Collaborate with teammates and share status notifications to multiple terminals.
Centralized Team Resource Management
Plan complex flight routes quickly based on a 2.5D Base Map.
Manage marked locations and alternate landing sites for efficient team collaboration and coordination.
Monitor drone health status, maintenance information, and DJI Care status.
View drone, route, and time statistics to evaluate efficiency and optimize future operations.
Aircraft | |
Weight | 42.5 kg (without battery) |
65 kg (with two DB2000 batteries) | |
Max Takeoff Weight | 95 kg (with cargo at sea level) |
Max Diagonal Wheelbase | 2200 mm |
Dimensions | 1590 x 1900 x 947 mm |
(LxWxH) (arms unfolded, propellers folded) | |
2800x3085x947 mm | |
(LxWxH) (arms & propellers unfolded) | |
1115x760x1027 mm | |
(LxWxH) (arms & propellers folded) | |
Folding Method | Towards body |
Loadable Battery Quantity | 2 |
Hovering Endurance (empty weight, with max battery capacity) | 29 mins (dual battery mode) |
15 mins (single battery mode) | |
*The data was collected in controlled conditions: zero altitude and a windless environment. For reference only. | |
Hovering Endurance (max weight, with max battery capacity) | 18 mins (30 kg weight load, dual battery mode) |
8 mins (40 kg weight load, single battery mode) | |
*The data was collected in controlled conditions: zero altitude and a windless environment. For reference only. | |
Max Flight Distance (empty weight, with max battery capacity) | 28 km (dual battery mode) |
12 km (single battery mode) | |
*The data was collected in controlled conditions: zero altitude and windless environment, at a constant speed of 15m/s. For reference only. | |
Max Flight Distance (max weight, with max battery capacity) | 16 km (30 kg weight load, dual battery mode) |
8 km (40 kg weight load, single battery mode) | |
*The data was collected in controlled conditions: zero altitude and windless environment, at a constant speed of 15 m/s. For reference only. | |
Max Flight Time (max weight, with max battery capacity) | 18 mins (30 kg weight load, dual battery mode) |
9 mins (40 kg weight load, single battery mode) | |
*The data was collected in controlled conditions: zero altitude and a windless environment, at a constant speed of 15 m/s. For reference only. | |
Operating Temperature | -20° to 45° C |
Ingress Protection Rating | IP55 |
Hovering Accuracy (with strong GNSS signal) | RTK positioning enabled: |
±10 cm horizontal, ±10 cm vertical | |
RTK positioning disabled: | |
±60 cm horizontal and ±30 cm vertical (radar enabled: ±10 cm) | |
RTK/GNSS Operating Frequency | RTK: GPS L1/L2, Galileo F1/F2, BeiDou B1I/B2I/B3I, Galieo E1/E5b, QZSS L1/L2 |
GNSS: GPS L1, BeiDou B1I, Galileo F1, Galieo E1, QZSS L1 | |
Max Pitch Angle | 30° |
Max Ascent Speed | 5 m/s |
*The data was collected in controlled conditions: zero altitude and a windless environment, with a 30 kg payload. For reference only. | |
Max Descent Speed | 3 m/s (vertical) |
5 m/s (tilted) | |
*The data was collected in controlled conditions: zero altitude and a windless environment, with a 30 kg payload. For reference only. | |
Max Horizontal Speed | 20 m/s |
*The data was collected in controlled conditions: zero altitude and a windless environment, with a 30 kg payload, for reference only. | |
Max Flight Altitude | 6000 m (without payload) |
Max Wind Speed Resistance | 12 m/s |
*The data was collected in controlled conditions: zero altitude and a windless environment, with a 30 kg payload. For reference only. | |
Propulsion System | |
Stator Size | 100x33 mm |
Motor KV Value | 48 rpm/V |
Max Motor Power | 4000 W/rotor |
Propellers Material | Carbon fiber composite |
Propellers Diameter | 54 inch |
Propellers Type | Foldable double-blade propellers |
Main-rotor Diameter | 1375 mm |
Rotor Quantity | 8 |
LED Light | |
Effective Illumination Distance | 10 m |
Illumination Mode | 60 Hz, automatically switch on according to ambient light |
DJI O3 Image Transmission | |
Model | Pigeon (with DDR)-2T4R |
Signal Effective Distance | 20 km (FCC) |
8 km (CE/SRRC/MIC) | |
*Measured with FCC compliance in unobstructed environments with typical interference. Data is for reference only. The actual transmission distance may vary depending on the environment's obstruction and interference conditions. Please pay attention to reminders in the app. | |
O3 Operating Frequency | 2.4000 to 2.4835 GHz |
5.725 to 5.850 GHz | |
*Some countries or regions do not support the 5.8 GHz frequency band. Please refer to local flight laws and regulations for details. | |
EIRP | 2.400 GHz - 2.4835 GHz: |
<33 dBm(FCC) | |
<20 dBm(CE/SRRC/MIC) | |
5.725 GHz - 5.850 GHz: | |
<33 dBm(FCC) | |
<30 dBm(SRRC) | |
<14 dBm(CE) | |
Data Security | AES-256 |
ADS-B | Supported |
Forward and Backward Active Phased Array Radar | |
Model Number | RD241608RF (forward) |
RD241608RB (backward) | |
Altitude Detection | Fixed altitude range: 1.5-200 m |
Rear Obstacle Avoidance | Sensible distance (rear): 1.5-50 m |
FOV Forward: 360° horizontal, ±45° vertical,±45°upward | |
Backward: ±45° horizontal, 360° vertical | |
Operating conditions: Available during takeoff, landing, and ascending when an obstacle is more than 1.5 m away from the aircraft | |
Safe distance: 3.5 m (distance between the propeller tip and obstacle when the aircraft is hovering after braking) | |
Sensing direction: multi-direction | |
Binocular Vision System | |
FOV | Horizontal: 90; Vertical: 106° |
Work Environment Requirements | Normal lighting with clearly textured surfaces |
FPV Camera | |
Resolution | 1920x1440 |
DFOV | 149° |
Frame Rate | 30fps |
Type | Full HD FPV Single Axis Gimbal Camera |
Fill Light | Supported |
Cargo Case | |
Dimension | 754x472x385 mm (LxWxH) |
Inner Space | 573x416x305 mm (LxWxH) |
Material | EPP plus aluminum alloy frame |
Weighing Feature | Supported |
Weight | Approx. 3 kg |
Load Capacity | 0-40 kg |
Parachute | |
Max Payload | ≤ 95 kg |
Dimension | 300x200x120 mm (LxWxH) |
Weight | Approx. 2.1 kg |
Automatic Reaction Time | Approx. 1000 ms |
Descending Speed | ≤ 6 m/s (at sea level, no wind) |
Parachute Shape | Square |
Material | Nylon |
Surface Area | Approx. 22 ㎡ |
Minimum Opening Height | 60 m |
Operating Temperature | -20° to 45° C |
Ingress Protection Rating | IP55 |
Mainboard Power-off Battery Life | ≥ 1 hour |
Memory Card Capacity | Real-time record for 10 flights |
Buzzar Alarm | Supported |
Lighting Alarm | Supported |
Manually Opening | Supported |
Automatic Opening | Supported |
Winch System (Optional) | |
Model | A2EWI-30A |
Dimension | 252x195x193 mm (LxWxH) |
Body Weight | 2.5 kg (without clump and couple) |
Clump Weight | 1.9 kg |
Couple Weight | 0.6 kg |
Touchdown Release Feature | Supported |
Payload Capacity | 5-30 kg (dual battery)5-40 kg (single battery) |
Cable Length | 20 m |
Max Retraction Speed | 0.8 m/s |
Operating Temperature | -20° to 45° C |
Ingress Protection Rating | IP55 |
Weighing Function | Supported |
Cut Cable Protection | Supported |
Swing Control Feature | Supported |
Manual Operation | Supported |
Automatic Operation | Supported |
Deceleration Protection | Supported |
DJI DB2000 Intelligent Battery | |
Model | DB2000 |
Capacity | 38000 mAH |
Nominal Voltage | 52.22 V |
Type | 14S1P |
Energy | 1984.4 Wh |
Weight | Approx. 11.3 kg |
Installation Method | Plug |
Dimension | 316x152x279 mm (LxWxH) |
Operating Temperature | -20° to 45° C |
Charging Rate | 5 to 15° C: 1.0C15 to 45° C: 2.5C |
Max Charging Power | 5700 W |
Automatic Heating Feature | Supported (when the battery temperature is below 10° C, pressing and holding the button or turning on the drone will activate the self-heating function. When the battery temperature is below 20° C, connecting the charger to the battery will activate the self-heating function. Charging and discharging in a low-temperature environment may reduce the battery's lifespan) |
DJI C8000 Intelligent Charger | |
Model | CHX101-7000 |
Input | 90-264 V AC |
Output | 42-59.92 V DC |
Max Output Power | 7200 W (Dual input)3600 W (Single input) |
Output Channel Quantity | 2 |
Protection Feature | The feature is designed to respond to issues including overheating, overvoltage, undervoltage, short circuits, fan stalls, etc. |
Operating Temperature | -20° to 45° C |
Charging Security | Connector protection feature available |
Remote Controller | |
Type | DJI RC Plus |
APP | DJI Pilot 2 |
Operating Frequency | 2.400-2.483 GHz |
5.725-5.850 GHz | |
EIRP | 2.400-2.4835 GHz: |
<33 dBm(FCC) | |
<20 dBm(CE/SRRC/MIC) | |
5.725-5.850 GHz: | |
<33 dBm(FCC) | |
<23 dBm(SRRC) | |
<14 dBm(CE) | |
Operating Temperature | -20° to 50° C |
Charging Environment Temperature | 5° to 40° C |
Built-in Battery Life | 3.3 hours |
External Battery | 2.7 hours |
Charging Method | Use a USB-C fast charging charger with a maximum power of no less than 65 W (maximum voltage of 20 V). A DJI portable charger is recommended. |
Charging Time | 2 hours with built-in battery, 2.5 hours with built-in and external battery (shutdown status according to official charging method) |
Ingress Protection Rating | IP54 |
Video Output Interface | HDMI |
Wi-Fi Protocol | Wi-Fi 6 |
Wi-Fi Working Frequency | 2.4000-2.4835 GHz |
5.150-5.250 GHz | |
5.725-5.850 GHz | |
Bluetooth Protocol | Bluetooth 5.1 |
Bluetooth Working Frequency | 2.4000 - 2.4835 GHz |
EIRP | <10 dBm |
GNSS | GPS+Galileo+BeiDou |
Screen | 7.02 inch touch LCD display screen, resolution 1920*1200, brightness 1200 nits |
Dual Operator Mode | Supported |
